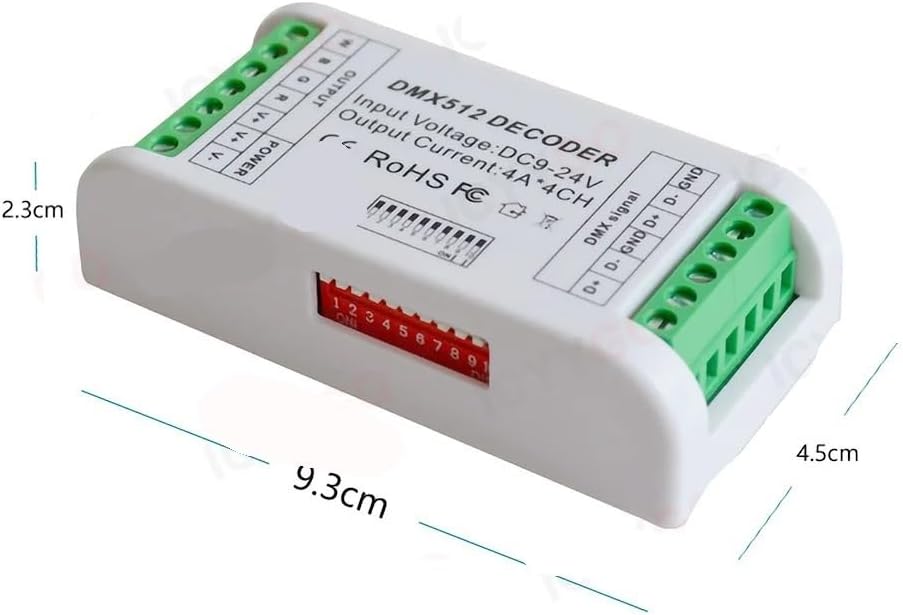

1PCS DMX512 3CH 4CH Controller 3 Channel/4 Channel RGB RGBW decoder LED Light dimmer Control for Controlling DC12V-24V(with Housing,3CH)

ControllersIndustrial Power Supply3-channel DMX RGB decoder product specifications:1. 3-channel output current: 3CH*4A2.Input power::DC12V-24V3. Connection method: common anode4. Output power: 144W (12V) 288W (24V)5.10A terminal safe and reliable6.Lid size: 95*46*25mm7. Packing size: 110*50*30mm4-channel DMX RGBW decoder product specifications:1.4 channel output current: 4CH*4A2.Input power::DC12V-24V3. Connection method: common anode4. Output power: 192W (12V) 384W (24V)5.10A terminal safe and reliable6.Lid size: 95*46*25mm7. Packing size: 110*50*30mmbasic skills:3 output channels can be connected to single lamp or RGB lamp; 0-100% dimming output 256 levels of grayscale per channel international standard DMX512 input protocol address code is set by DIP switch; wide voltage DC input DC12V~DC24V; each occupies a 3DMX address.RGBW controller works with RGBRGBW strip lights.FAQ:Q: Can my controller be connected?A: It can accept DMX512/1990 output signal. If yours is a DMX512 master controller it can be used.Q: Can I use it for my lights?A: There are 30 output channels that can be connected to single or RGB LED lights (DC9V-DC24V constant voltage LED light products such as LED strips LED bulbs and tube LED panel lights etc.)Decoder used:First DMX address setting:The decoder sets the address bits through the encoding switch where 1-8 is the starting address.DMX512 binary digital coding switch the first one is the lowest position the ninth one isThe highest bit of the address code can be set to 255.The starting address code of DMX512 is the sum of switches 1-8 turning downward at the same timeTurn the code switch (ON is set to "1") to obtain the value of the bit; turn the code switch upward (set to "0") The value of this bit is 0.Example 1:As shown in Figure 1 below the DMX512 sta
