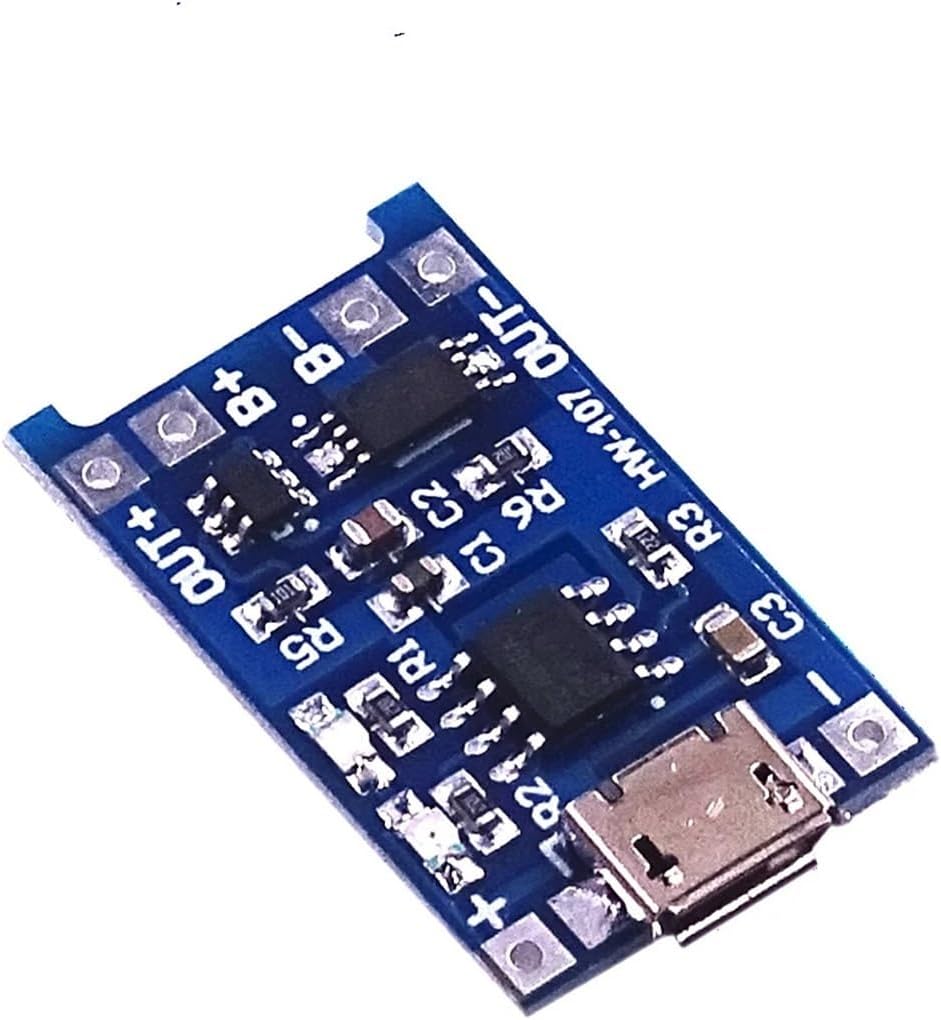

1PCS TP4056 TC4056 Type-c/Micro/Mini USB 5V 1A 18650 Li Charger Module Charging Board Dual Functions Li-ion(Type-c USB)
Product details
| Management number | 211032618 | Release Date | 2026/04/04 | List Price | $12.88 | Model Number | 211032618 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Sensor BlocksCharge module:Linear charging. Current:1A adjustable. Charge :1.5%. Input voltage:4.5V-5.5V. Full charge voltage:4.2V ± 1%Led indicator:red is charging Green is full charged. Input interface:micro USB/mini usb/type-c usbWork temperature:-10° to +85°. Inversed polarity:NO. Protection About Type-c usb module and micro usb type-1 module :The overcharge protection voltage: 4.28 V overcharge lifting voltage: 4.00 VThe discharge protection voltage: 3.0 V discharge termination voltage: 3.2 V: over-current protection current 3 aNOTE:1. Ampere meter can only be connected to 5v input end of the module.2. It is better that the charging current is 37% of the capacity. If you charge to the of 1000mAH, current of 400 is enough.3. The connection wire should not be too thick.4. Make sure the connect point is good.5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.6. NO Reveral polarity.you could choose:1x 5V Micro USB/Type-c USB/Mini Usb 18650 Li Charging Board Charger Module
- Sensor Blocks
| Color | Type-c USB |
|---|---|
| Gauge | 1.0 |
| Model | EDGWHKEAW |
| Pitch | 1 Inches |
| Brand Name | EDGWHKEAW |
| Part Number | EDGWHKEAW |
| Manufacturer | EDGWHKEAW |
| Connector Type | Clamp |
| Specification Met | UL |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
