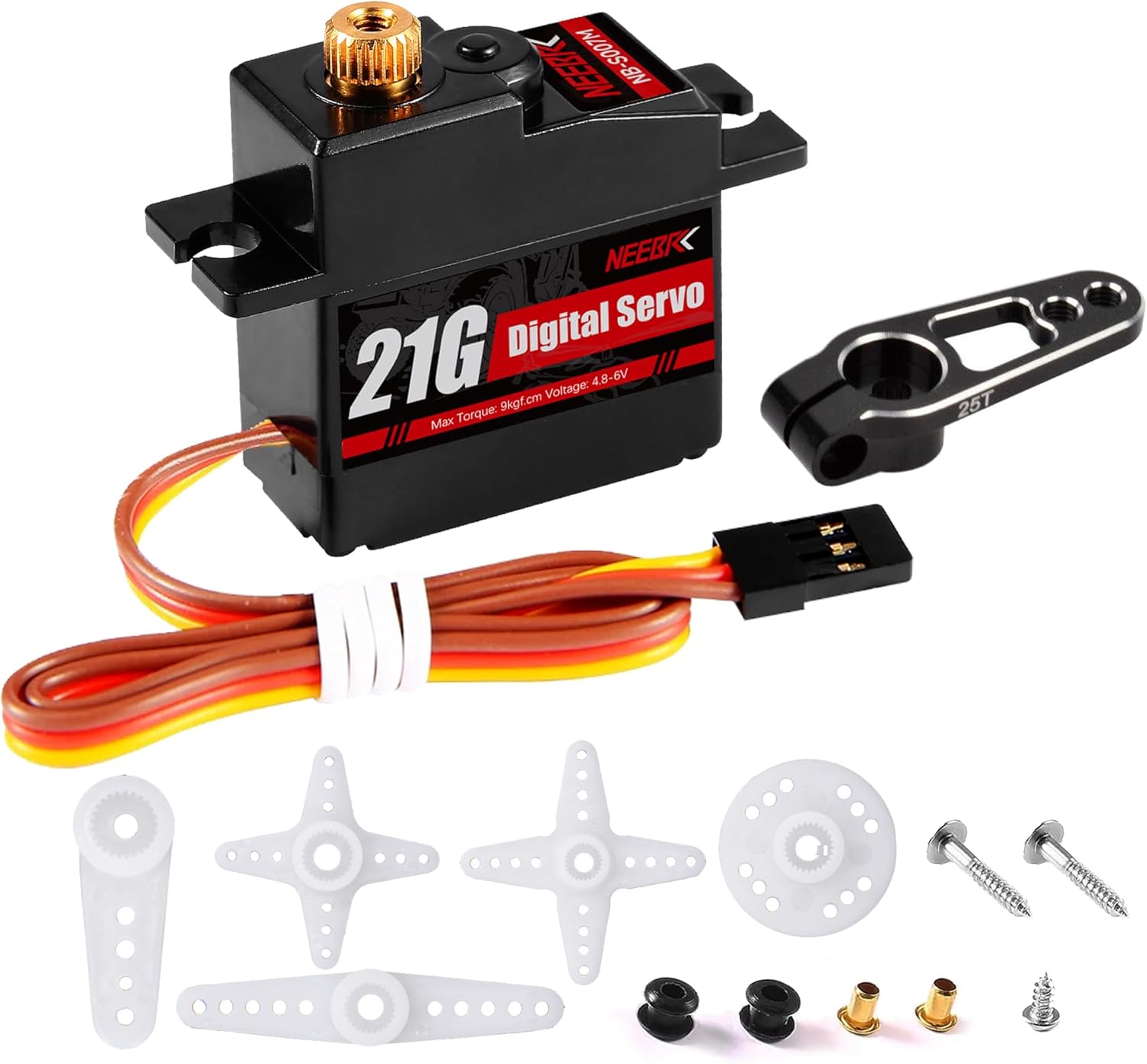

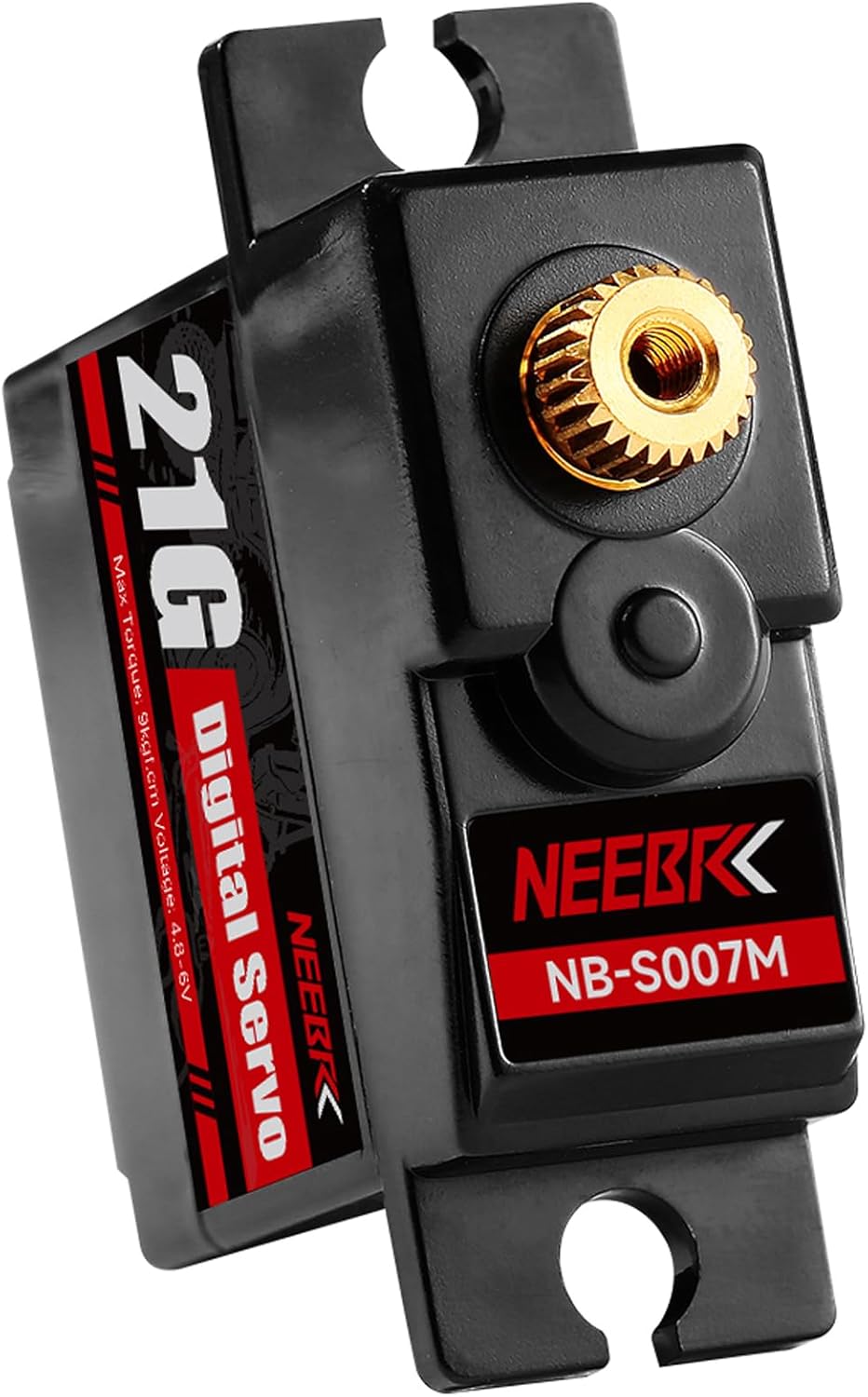

21G Micro Servo Motor,Digital Mini Servo High Torque with 25T Arm for 1/14 1/16 RC Crawler Car Upgrade Servo Parts Model Boat Airplane Robot (1PCS with arm)

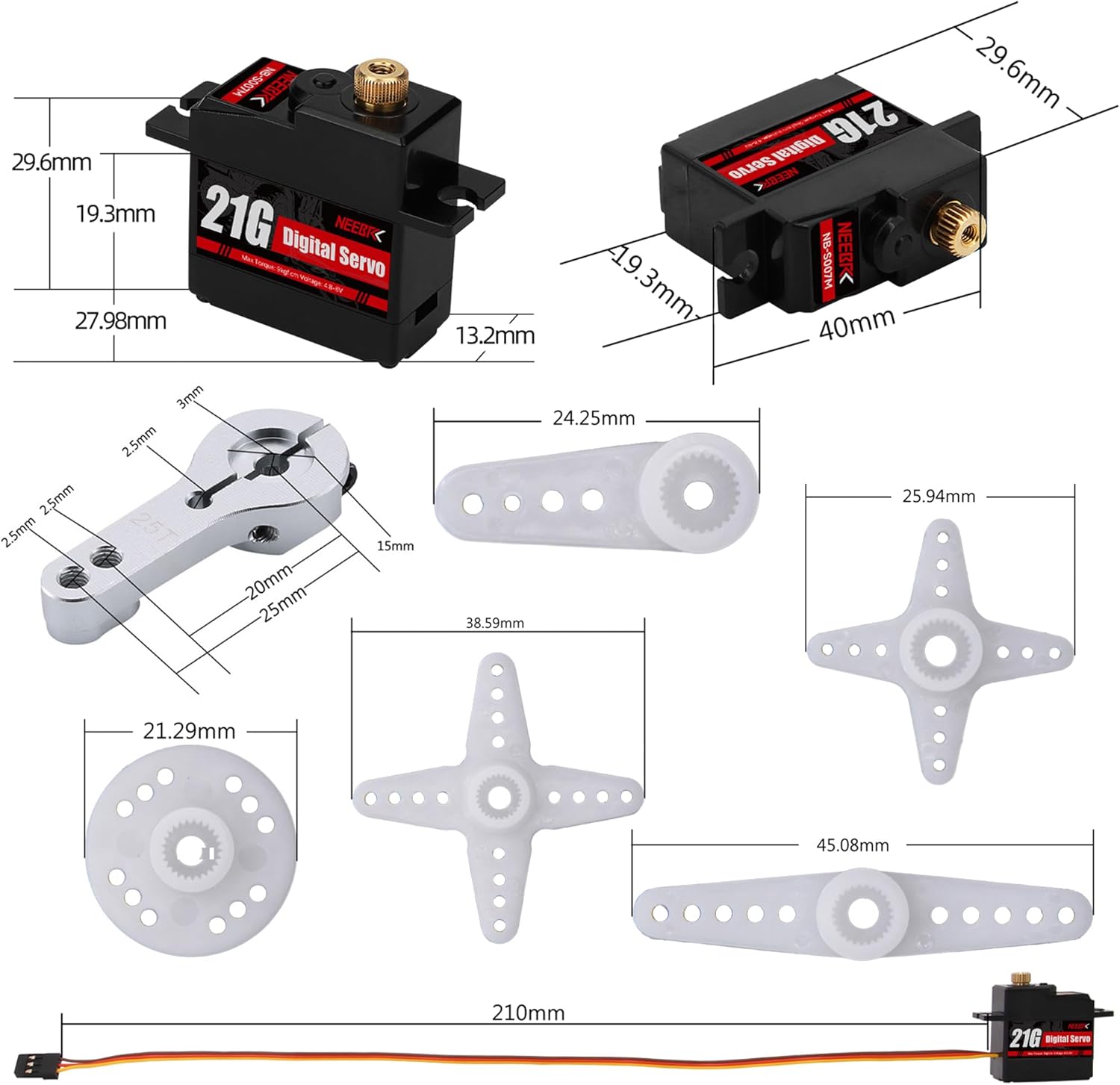

Features:  High performance digital standard  Low noise and long service life  Small volume and large torque  Suit for RC car boat helicopter model  Specifications:  Item name: NEEBRC S007M  Quantity: 1pcs  Operating Voltage : 4.8~6.0V DC  Max. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cm  No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°  Stall Current：4.8V≦1500mA；6.0V≦1800mA  Consumption Current* (No Load)：4.8V ≦200mA ；6.0V≦210mA  Max. Operating Travel Angle：180°±1°(500~2500μs）  Dead Band Width: ≤ 1us  Mechanical Limit Angle: 360°  Communication Interface: PWM  Motor Type: Core motor  Case Material: ABS  Gear Set Material : Metal gear  Size: 29.6 × 13.2 × 40mm  Length of Connector cable: JR 210±5mm (exposed without plug)

• 【Excellent Quality Workmanship】:The 21G Micro Digital Servo made with excellent Plastic Shell material (lightweight and fast heat dissipation) and high-precision Full Metal Gear (more durable and prevent tooth sweeping) with Hard Anodizing, combined with Dual Ball Bearings, has a longer service life.
• 【High Performance Digital Standard】:The 21G Mini Digital Servo with Extra Large Torque can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.
• 【Electronic Protection】:The NB-S007M 21G Servo will undergo current reduction and power outage treatment when the locked rotor time and current exceed the preset values, preventing blockage and burning. A solid hardware foundation combined with more advanced software allows the servo to provide high torque output while significantly reducing the probability of damage to the servo under high loads.
• 【Widely Use 】:The Mini Digital Servo is suitable for remote control vehicles such as Crawlers, Buggy, RC Car, Boat,RC Aircraft,RC Helicopters, On-Road,Off-Road,RC Drones,Toys,etc.Especially this servo is most suitable for micro control fields such as aircraft models, drones, toys, intelligent switches, etc.
• 【Note】:In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees, and the servo can achieve a control angle of 90 degrees under the control of a transmitter.
