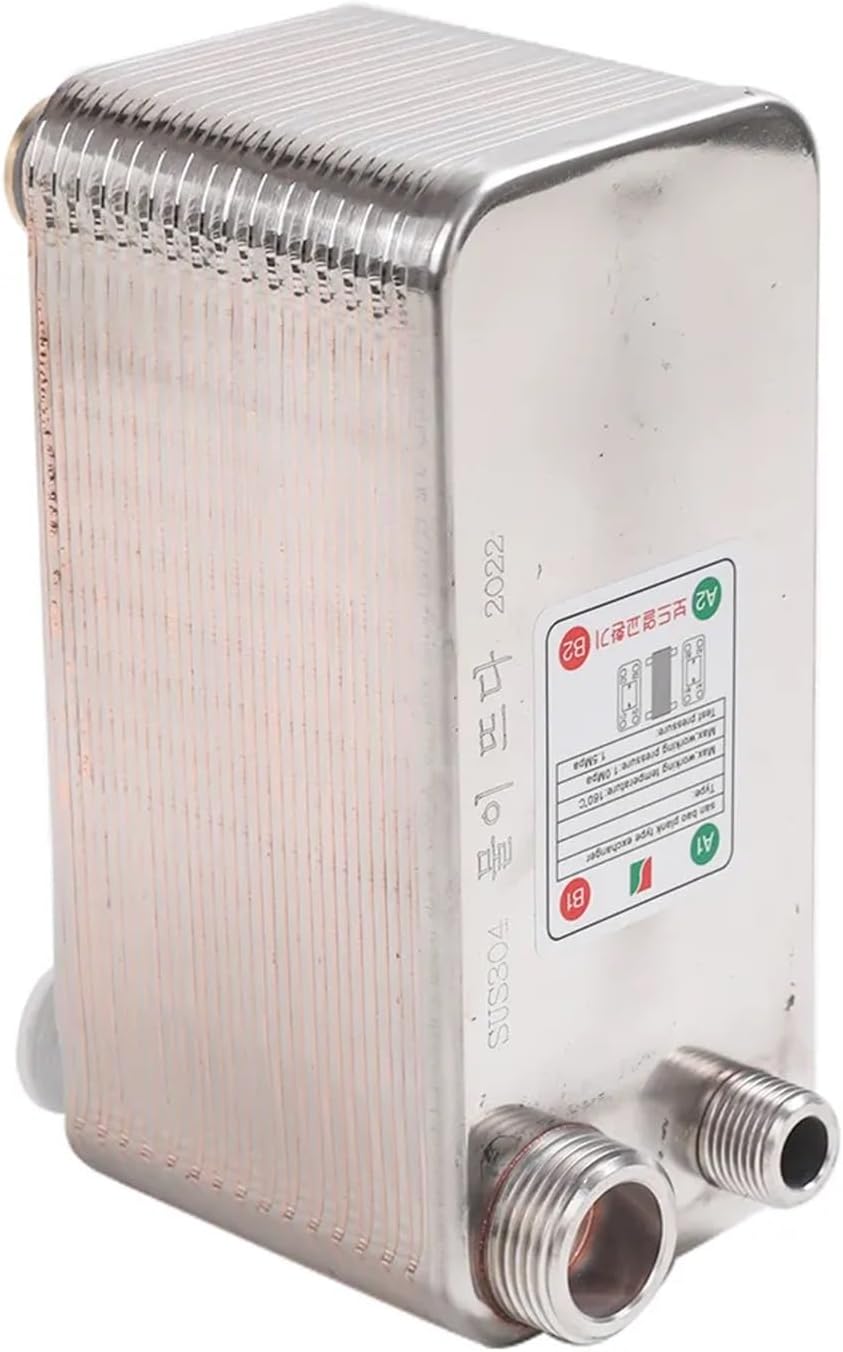

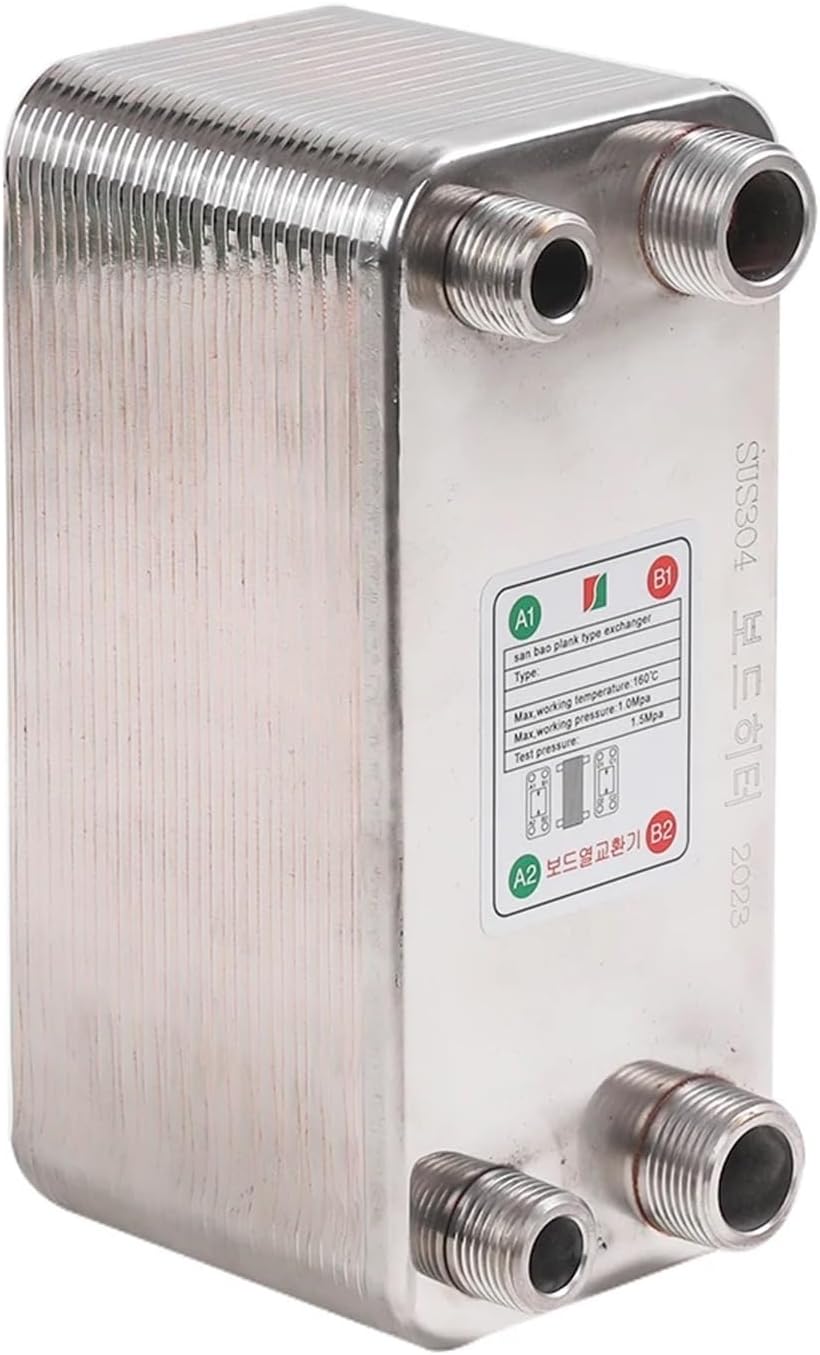

32 Plate Heat Exchanger Beer Wort Chiller Cooler SUS 304 Stainless Steel for Homebrew Cooling,Brazed Plate Type Water Heater(Different Side)
Product details
| Management number | 215031920 | Release Date | 2026/04/12 | List Price | $63.97 | Model Number | 215031920 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
32 Plate Heat Exchanger Beer Wort Chiller Cooler SUS 304 Stainless Steel For Homebrew Cooling,Brazed Plate Type Water HeaterPlate heat exchanger, suitable for domestic hot water conversion, ordinary heating, multi-channel heating switching, air energy, solar energy, multi-channel gas wall-hung boiler integrated heating, wort beer cooling, non-pressure boiler to pressure, swimming pool, etc.Tap water interface: 20mm outer diameterHeating interface:25mm outer diameter selectionSpecification:Name: Brazed plate type heat exchangerMaterial:SUS 304 Stainless Steel, food gradeWeldIing Material: 99.9% CopperApplication:Home Brew Wort Chiller, Famliy Hot Water supplyThread of Port A1,A2:1/2" BSPT MaleThread of Port B1,B2:1" BSPT MalePlates Number: 32 platesHeat Transfer Area/plate: 0.028 m2(0.30 ft2) Thickness of One Plate:0.25-0.35mmMax Flowrate:12 m3/HWorking Temperature:-160 to + 185 Below 50 plates: suitable for washing hands and face60-80 plates: suitable for kitchen washing dishes and dishes.100-120 plates: can support bathing, mainly depends on the heat source's ability to supply heat.Heat exchange rate: 85%Heat source heating capacity> 50 ° C hot water temperature, comfortable bathing<;50 ° C, hot water temperature, average bathing experience (winter)Options Instruction:Same side: mean the 4 ports are in the same sideDifferent side: mean the 4 ports are in different side, each side with 2 ports.Besides above four ports, there is an air vent on the heat exchanger for 50 plates heat exchanger and above, this air vent's function is to avoid if there is some air remained in the exchanger and you need to release the remain air so that the water can go through when you first time use this heat exchanger. For other time, the air vent need to be plugged with a .
- Material:SUS 304 Stainless Steel, food grade
- WeldIing Material: 99.9% Copper
- Application:Home Brew Wort Chiller, Famliy Hot Water supply
- Thread of Port A1,A2:1/2" BSPT Male
- Thread of Port B1,B2:1" BSPT Male
- Welcome and I wish you a happy life, my friend
| Department | unisex-adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | POEMYSIR |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | 1005006061168028 |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
