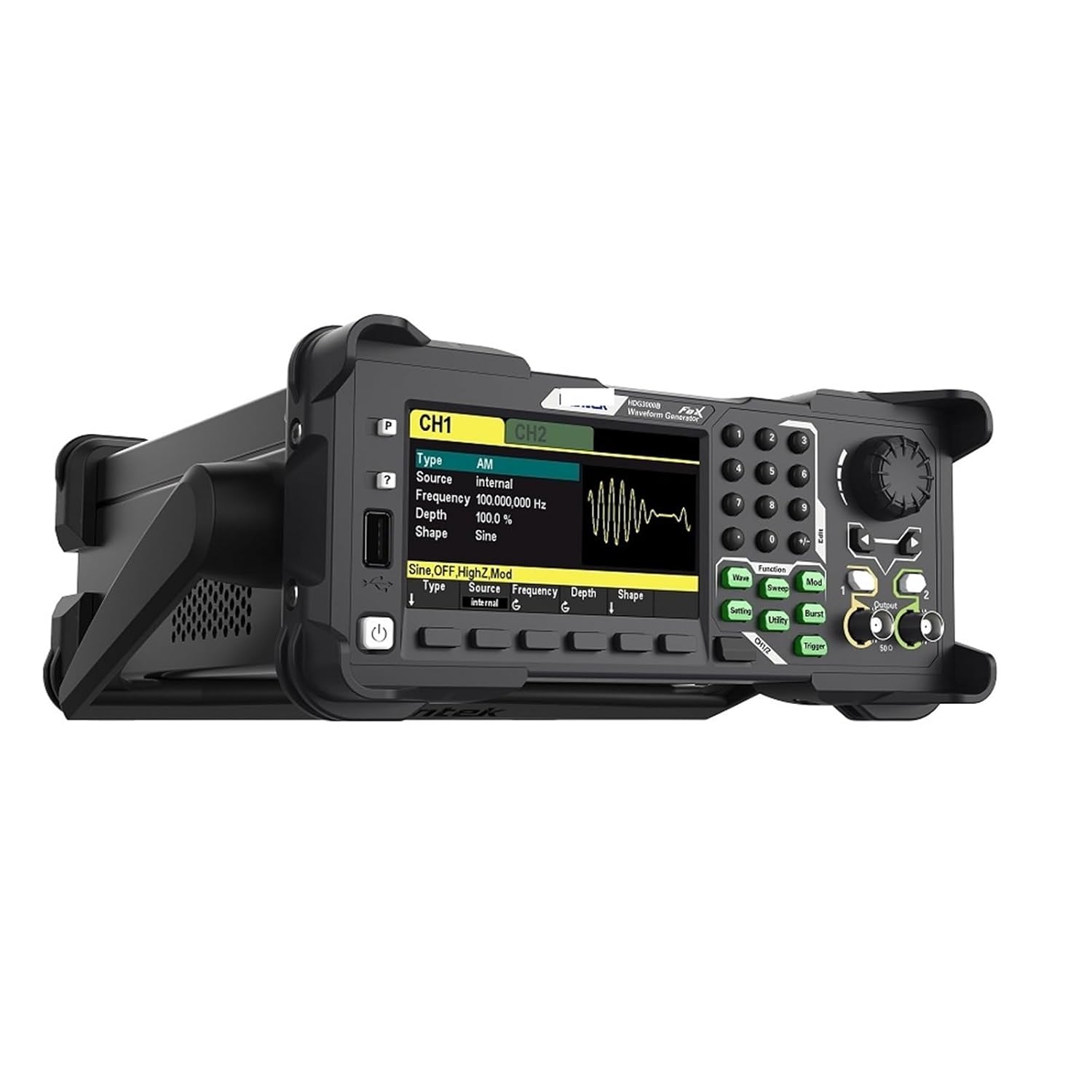

5-in-1 2-Channel Signal Generator Arbitrary Waveform Pulse Function Harmonic Frequency Meter HDG3012B HDG3022B HDG3102B(HDG3012B(15MHz))

Function GeneratorsHDG3000B setsDigital Arb Waveform Generator 2CH DDS Frequency Meter 300MSa/s Function Signal GeneratorFeatures1.HDG3000B series integrates5 functionsofarbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator.2.UsingDDSdirect digital frequency synthesis technology.3.Up to300MSa/ssampling rate,16bitsvertical resolution to ensure the accuracy of waveform amplitude.4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.5.The storage depth of up to2Mensures the creation of more waveform cycles and the creation of better waveform details.6.4.3-inch color TFT display,the user interface is clear and intuitive.7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.8.Exponential rise,exponential fall,ECG signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.Frequency range: 1Hz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.Up to 300MSa/s sampling rate, no distortion of analog waveforms.16-bit vertical resolution ensures the accuracy of waveform amplitude.Equip with dual channels with equal performance, equivalent to two independent signal sources.The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.A 4.3-inch color TFT screen, a clear and intuitive user interface.Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.1Hz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50, the amplitude range is 1mV~10Vpp.Built-in 80MHz high-resolution frequency meter.Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.==========Battery Included : NoHigh-concerned chemical : NoneIS Battery Demountable : NoMax Waveform Capture Rate : 30,000wfm/sRecord Length : 16kModel Number : HDG3012B HDG3022B HDG3102BCertification : Real Time Sampling Rate : 300MSa/sDIY Supplies : ElectricalBand Width : 100-349MHzDigital Channels : 2 Model : HDG3022BDisplay Resolution : 640*480 PixelsDisplay Size : 7 Inches & Above
