50mm Linear Actuator Stroke 12V High Speed 14mm/s 1000N/220lb IP54 Heavy Duty Linear Electric Motion Actuator with Waterproof Switch, Mounting Bracket (50mm)

Heavy Duty Linear Motion Actuator

• Electric Actuator: Model: AL03, Voltage: 12V DC, Stroke: 50 - 400mm, Maximum Load: 1000N/220lb, Working Speed: 14mm/s, Power: 30W, Rated Current: 2.5A, Motor Type: Brush DC Motor, Noise Level: Less than 43dB, Protection Level: IP54
• High Speed: 12V linear actuator is equip with a high speed motor to make the travel speed reach 14mm/s, which makes the linear motion actuator fast and heavy duty enough to meet a variety of demands.The built-in limit switch makes it automatically cut off the power when the linear actuator 12V reaches top or bottom. In addition, there is also a built-in safety lock to make the stroke stop at any position, which makes it much safer when use
• Waterproof Switch: Equipped with metal DPDT toggle switch, the switch with mounting panel up down mounting panel, terminal connectors, and waterproof cap cover, suitable for both indoor and outdoor use, you could choose to use the waterproof cap or not according to your specific needs. This switch is momentary meaning it springs back to the center off position when the toggle is released; The switch will reset automatic back to off if released

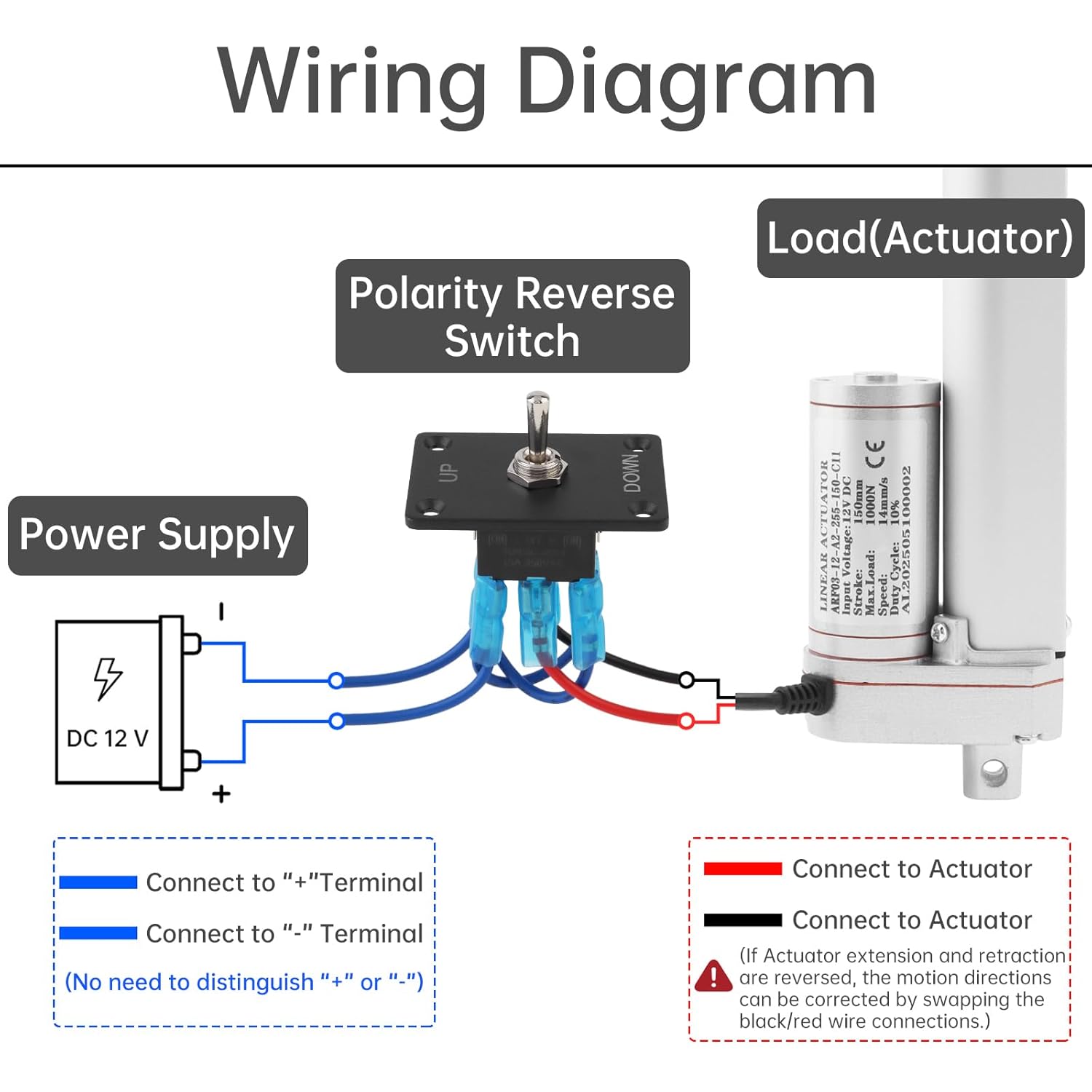

• Easy to Install: The linear actuator will include a set of mounting brackets, makes it easy and convenient to install and connect this fast linear actuator. Positive negative 2 poles, reversing the polarity will switch the direction of movement between extension and retraction.
• Application: Heavy Duty Linear Motion Actuator is widely be applied to automatic door opener, window opener, power sunroof, electric sofa, electric massage chair, electric nursing bed, industrial electric lifting system, solar tracking system, automated devices, smart homes, etc
