6-bit NIXIE Tube Clock Motherboard Core Board Control Panel remote control universal in12 in14 in18 qs30-1 Glow Clock Controller

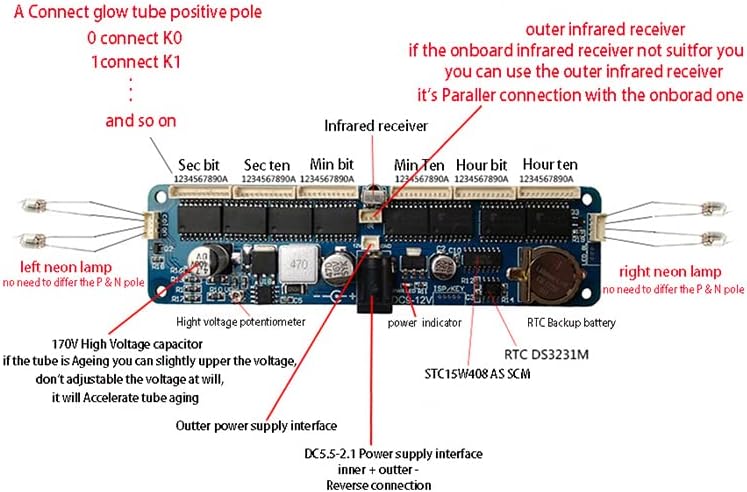

Description:This board is the core board of the universal glow clock, which integrates all the functions of the glow clock including the boost module, as long as a board plus the glow tube can make a complete 6-bit glow clock. Switch the machine when using remote control.And with external infrared and power interface, convenient for users to make a shell. The clock uses the DS3231M, built-in crystal, and accurate timing. The boost part uses the MAX1771 high efficiency scheme, low heat (inductive hand can be in long contact). Single-chip machine with STC15W408AS, with anti-cathode poisoning program, delay shutdown, timing switch machine and other functions. The small size makes it easy to fit into a smaller housing. Distribute all wire. Using a 9V12V, 500MA or more power adapter, the interface is DC5.5*2.1. Because this product needs to weld the glow tube or tube seat, make a shell, etc. , so the buyer is required to have a certain amount of hands-on ability.Package Included:1 x 6-Bit NIXIE Clock Remote Control board

• The clock uses the DS3231M, built-in crystal, and accurate timing.
• The boost part uses the MAX1771 high efficiency scheme, low heat (inductive hand can be in long contact).
• Single-chip machine with STC15W408AS, with anti-cathode poisoning program, delay shutdown, timing switch machine and other functions.
• Using a 9V12V, 500MA or more power adapter, the interface is DC5.5*2.1.
• 1 x 6-Bit NIXIE Clock Remote Control board
