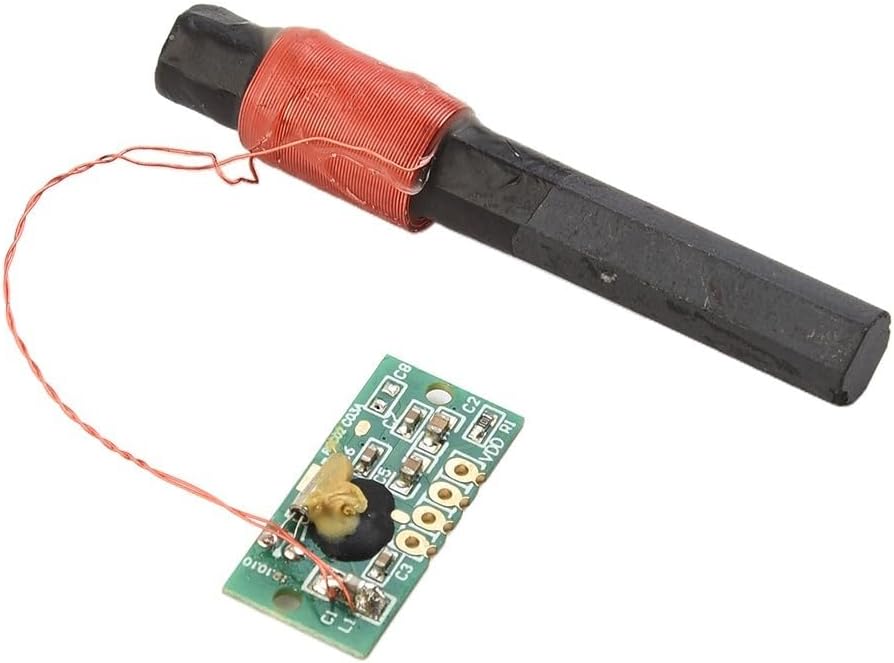

60KHz Fits For WWVB Clock Receiver Module Single Frequency Electronic Time Signal Module, Microcontroller Circuit Board, 85μA Current Consumption

describe:DCF receiver module with DCF antenna tuned to time signal transmitter WWVB/60KHz. The antenna induction signal is sent to the IC for amplification, demodulation, and then identified by the MCU, so that the date and time of the timing center are completely consistent.Below you will find important setup and circuit diagrams.Technical SpecificationsProduct number: WVB-0860N-03ARCCM category: WWVB/60KHz single frequency modulePCB size: 25.0x11.5x1.0mm/FR4Antenna size: AR8x60mm/High QNominal frequency: 60KHz±300HzSensitivity: 28±2dBReceiving IC: CME6005 Operating voltage: 1.1...3.3 V Current consumption: 85 µA max Receiving frequency: 60KHz Board size (without antenna) LxWxH: 22x13.5x1 mm Antenna quality: LxØ: 60x10mm Scope of delivery: 1 piece ⇒ DCF receiver module with antenna connect: ⇒ Ground = Pin ⇒ Operating Voltage = Pin ⇒ data = pin T ⇒ Power On/Off = Pin P1 Important

• 【WWVB/60KHz Receiver Module】This receiver module is specifically designed for receiving time signals from the WWVB/60KHz transmitter. Equipped with a tuned DCF antenna, the module amplifies and demodulates the induction signal before being identified by the MCU to accurate and consistent date and time synchronization with the timing center.
• 【Compact Design】With a PCB size of 0x11.5x1.0mm and an antenna size of AR8x60mm, this module offers a compact and space-saving solution. It is made of FR4 material and is built to be and long-lasting.
• 【High Sensitivity】Featuring a sensitivity of 28±2dB, this receiver module excellent signal reception even in challenging environments. It allows for reliable and stable communication with the WWVB/60KHz transmitter.
• 【Low Power Consumption】Built with efficiency in mind, this module operates within a voltage range of 1 to 3.3V, consuming a maximum current of 85µA. Its power-saving design extended usage time.
