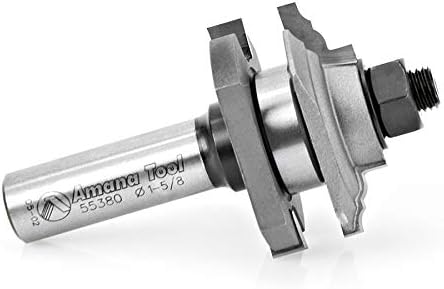

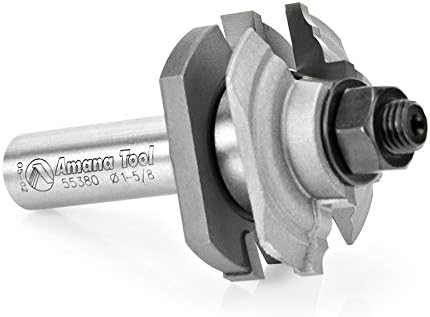

Amana 55380 Classical Stile & Rail 1/2" Shank Router Bit

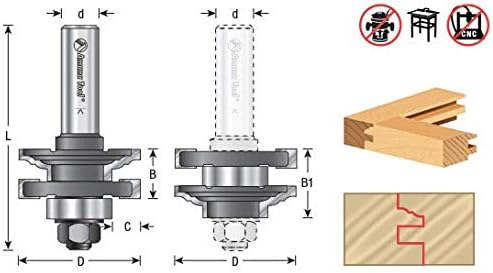

Make precise fitting stile and rail joints with one assembly. Change the position of the cutters and flip material over to switch between stile and rail profiles. Tightness of joint can be adjusted with included shims. Replacement parts available if lost or damaged. Cut both the stiles and rails with a single economical assembly. Switch from the stile cut to the rail cut simply by rearranging the cutters and bearing on the arbor. Because the profile and the cope are cut with the same cutter, you get a perfect fit. The assembly order for each setup is shown in the drawing. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles. Stile & Rail assemblies can be used on 5/8" through 7/8" material.

• Use one tool for both cuts by reversing the assembly
• Includes shims that give perfect alignment before and after sharpening
• For best results, the rail cut should be done on a router table, with complete instructions
• The stile & rail assemblies can be used on 5/8" through 7/8" material
• Tongue & groove can be used on 1/2" through 3/4" material
