AP03 Pressure Oil System IPR Air Test Tool Kit Compatible with 6.0L 7.3L Diesel

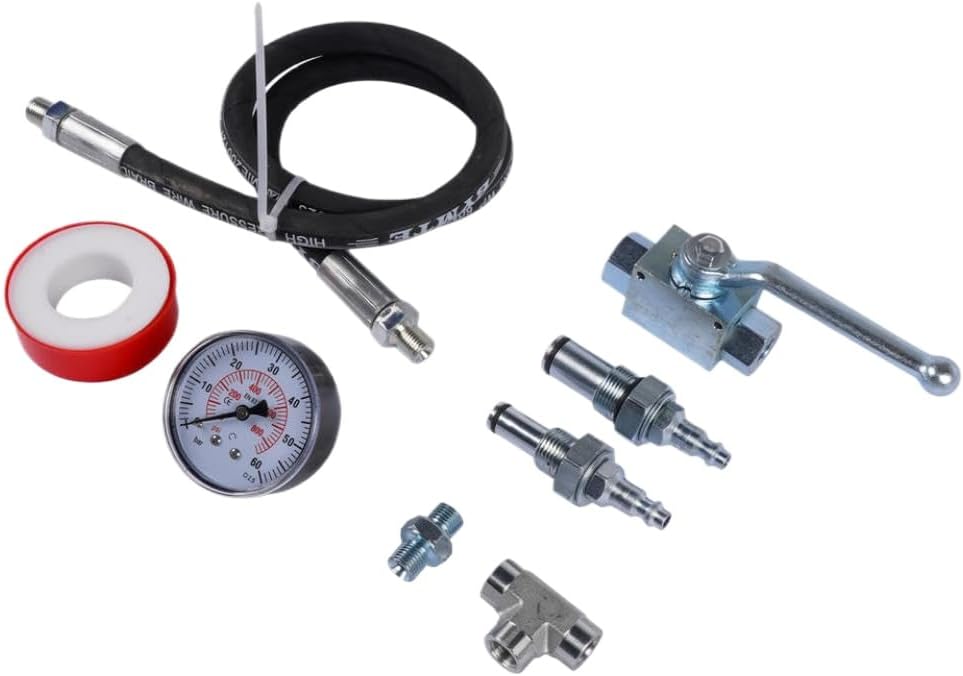

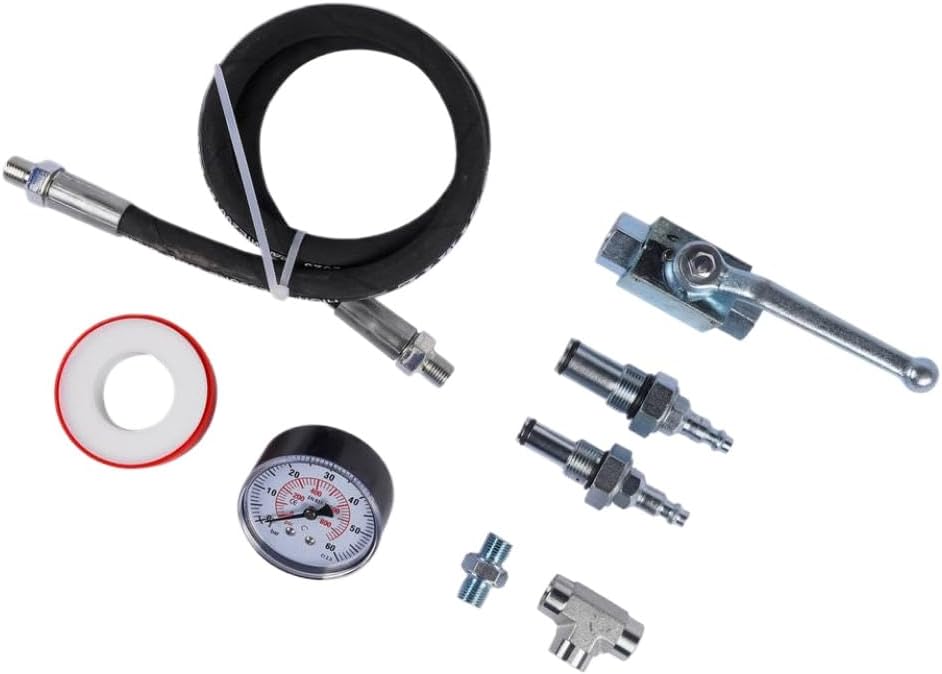

AP03 Pressure Oil System IPR Air Test Tool Kit for 6.0L-7.3L Diesel For use with 6.0L and 7.3L diesel engines (1994–2007).This air test tool kit enables detection of small leaks in the pressure oil system.It replaces the IPR valve to seal the system, allowing pressurization and leak identification.Includes: 1 hose 1 shutoff valve 1 ICP fitting for 6.0L engines 1 ICP fitting for 7.3L engines 1 air pressure meter 2 interconnectors 1 Jake introduction fitting 1 roll of PTFE tape 1 T fitting Installation steps: 1.Remove the air cleaner, FICM, and coolant degas bottle (turbo removal is not required).2.Remove the IPR valve.3.Thread the tool into the IPR port and hand-tighten using the hose.4.Connect shop air and listen for leaks.5.Close the shutoff valve on the tool to seal the system and isolate leaks.6.Optionally, use a scan tool to monitor system pressure via the ICP reading.

• Designed specifically for 6.0L and 7.3L diesel engines to support accurate IPR valve diagnostics and pressure oil system testing
• Includes all essential components for performing air leak tests on the pressure oil system, such as test fittings, adapters, and a calibrated pressure gauge
• Compatible with common service procedures for identifying IPR solenoid issues, op leaks, and injector control pressure inconsistencies
• Features brass and stainless-steel construction for repeated use in professional and DIY shop environments
• Supports safe, non-invasive testing without requiring engine disassembly or removal of the IPR valve from the engine block
