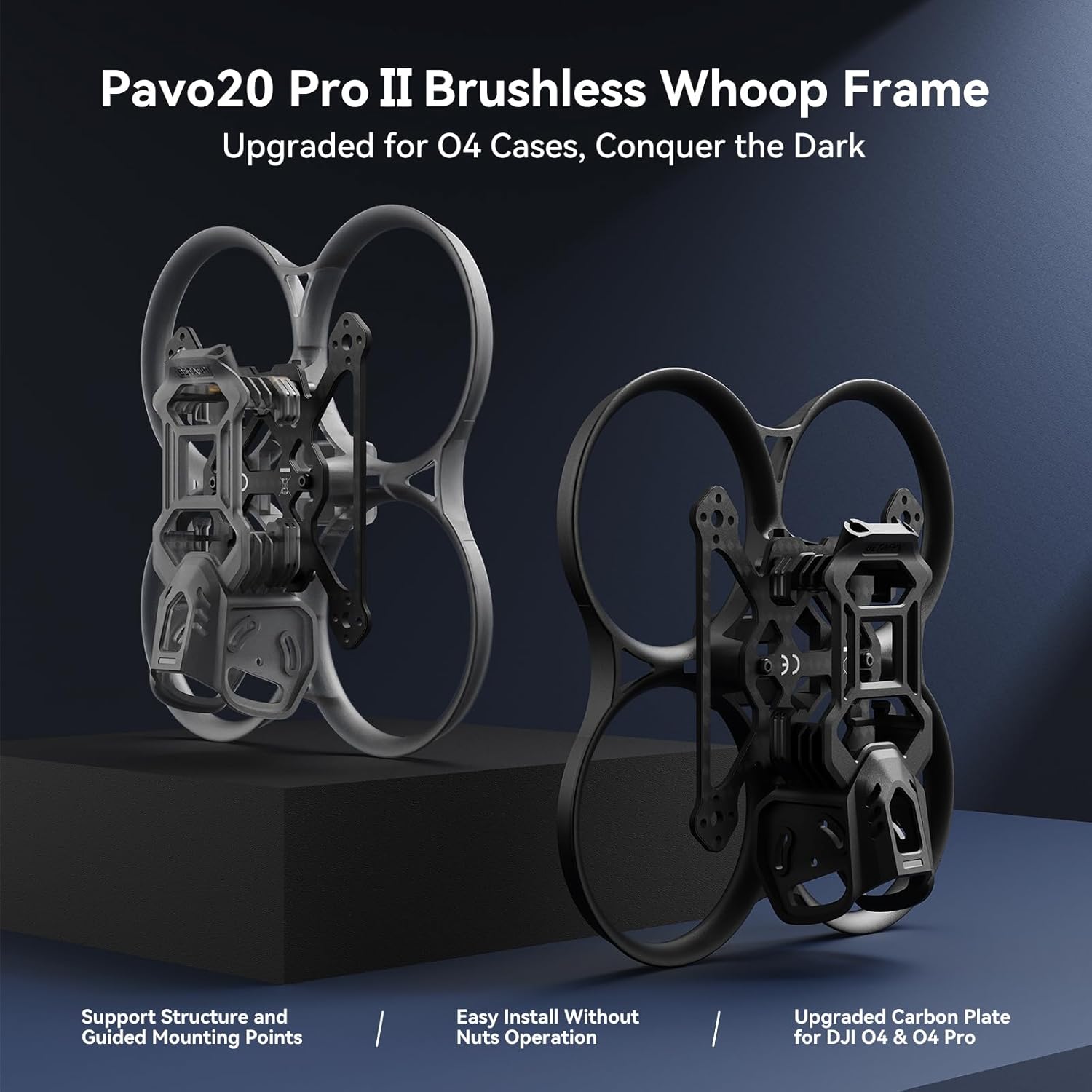

BETAFPV Pavo20 Pro II Brushless Whoop Frame with HD VTX Bracket for O4 Air Unit Pro, PA12 Thickened Duct, Dual Camera Fixed Hole Compatible for O4 /O4 Air Unit Pro
Product details
| Management number | 219628390 | Release Date | 2026/05/03 | List Price | $7.20 | Model Number | 219628390 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

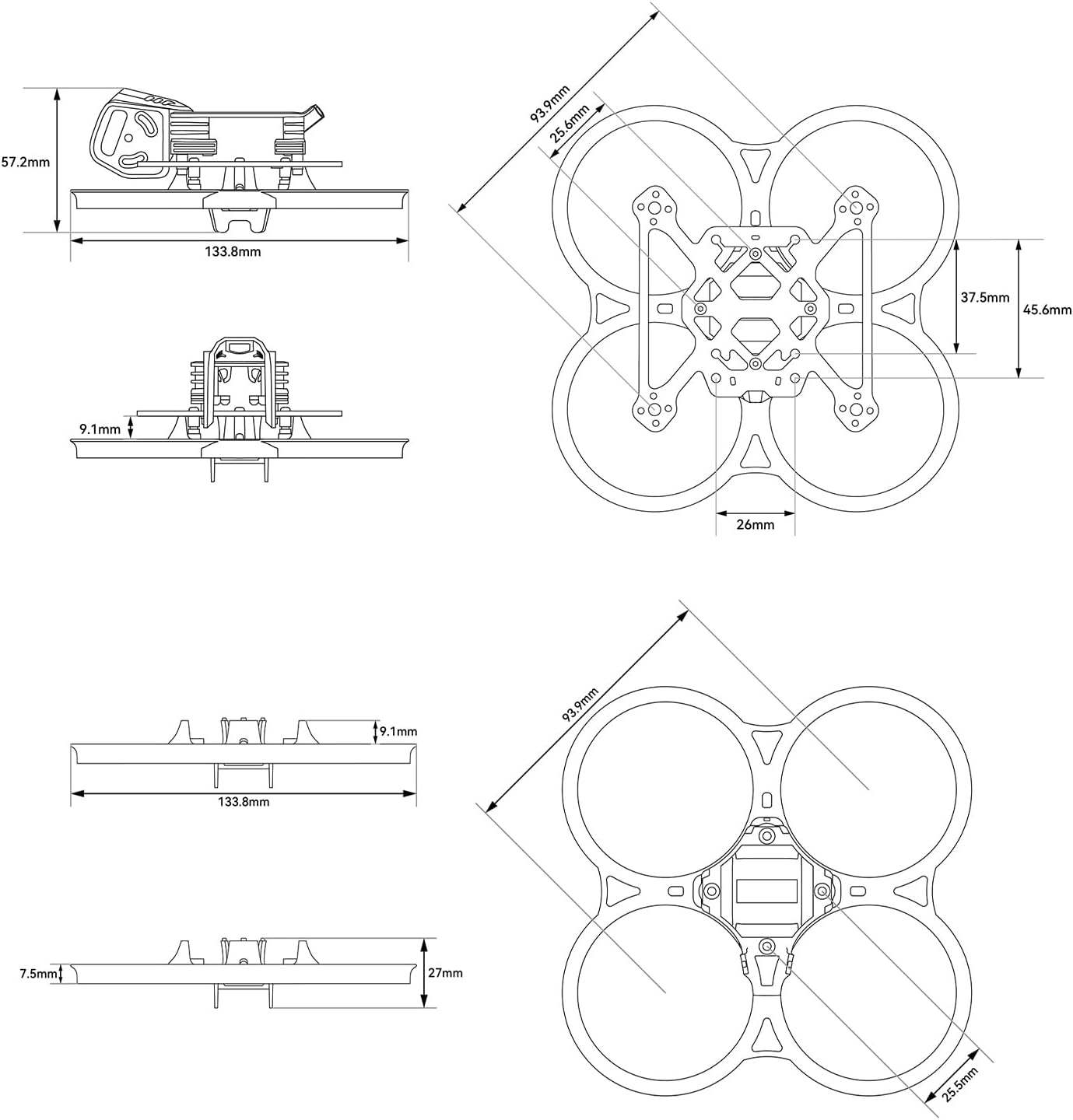

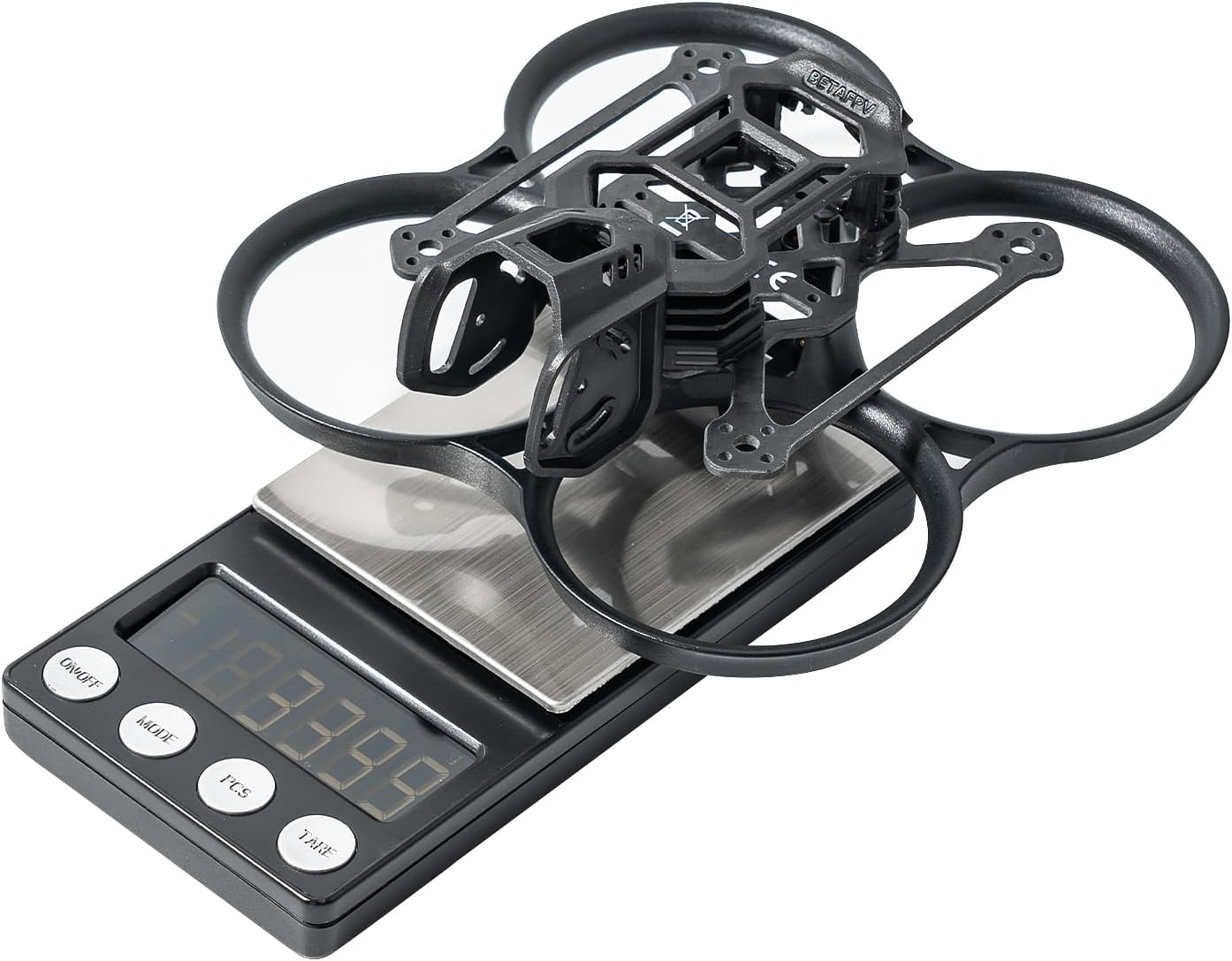

Specifications Item: Pavo20 Pro II Brushless Whoop Frame Wheelbase: 93.9mm Material: PA12/PP Top Plate Thickness: 2mm Frame Weight: 35.7g (With O4 Air Unit Pro Bracket) Whoop Duct Weight: 17.8g Color: Black Camera Mounting Spacing: 20mm FC Mounting Hole Size: 26×26mm Motor Mounting Hole Size: 4-M2-φ9mm Battery Slot Width: 20mm Camera Filter: Supported Recommended Parts Quadcopter: Pavo20 Pro II Brushless Whoop Quadcopter FC & ESC: F4 2-3S 20A AIO FC Motor: LAVA Series 1104 7200KV Brushless Motors Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft) Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery Filter: ND Filter for O4 Pro Camera VTX Bracket: Bracket for O4 Air Unit Pro, Bracket for O4 Air Unit VTX: O4 Air Unit Pro, O4 Air Unit Package Pavo20 Pro II Brushless Whoop Frame 1 * Pavo20 Pro II Top Plate 1 * Pavo20 II Whoop Duct 1 * Bracket for O4 Air Unit Pro 6 * Shock-absorbing Balls for Flight Controller (8mm) 6 * Shock-absorbing Balls for Bracket for O4 Air Unit Pro (6.6mm) 6 * M2*10 Screws 6 * M2*4 Screws 6 * M2*14 Screws 1 * 130mm Battery Strap 2 * 5.8g Antenna 1 * 5.8G VTX Antenna Mount 1 * H1.5 Hex Screwdriver
- Hassle-Free Assembly: An integrated injection-molded bracket and supported structure enable a quick, tool-light build secured with just 4 screws—eliminating tedious adjustments
- O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility. It comes with the HD VTX bracket for O4 Air Unit Pro, a camera protection panel, dual fixing holes, and 30° angled antenna mounts to guarantee smooth cinematic shooting
- Durable PA12 Whoop Duct: Built with a crash-proof construction and a reinforced cross-section design for superior impact resistance and longevity. It is paired with a versatile battery mounting system, featuring an open-ended strap and side-limitation slot, which ensures a rock-solid battery grip, accommodates a wide range of battery sizes, and prevents movement during hard maneuvers
- Aerodynamic Thrust Boost: Engineered airflow dynamics deliver an 8–11% thrust increase compared to ductless designs
- Pavo Series Rubber Damper Design: Proprietary vibration-damping system guarantees buttery-smooth, jitter-free HD footage in all flight modes
| Brand Name | BETAFPV |
|---|---|
| Item Weight | 0.2 Pounds |
| Manufacturer | BETAFPV |
| Are batteries included | No |
| Item Dimensions L x W x H | 6.7"L x 6.7"W x 1.6"H |
| Includes Rechargeable Battery | No |
