CAT40-ER32-70 HSS Collet Chuck Fine-Balanced Tool Holder CNC Tooling (id: 67d 5d4 865 138 fa5
Product details
| Management number | 210127052 | Release Date | 2026/04/02 | List Price | $29.65 | Model Number | 210127052 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

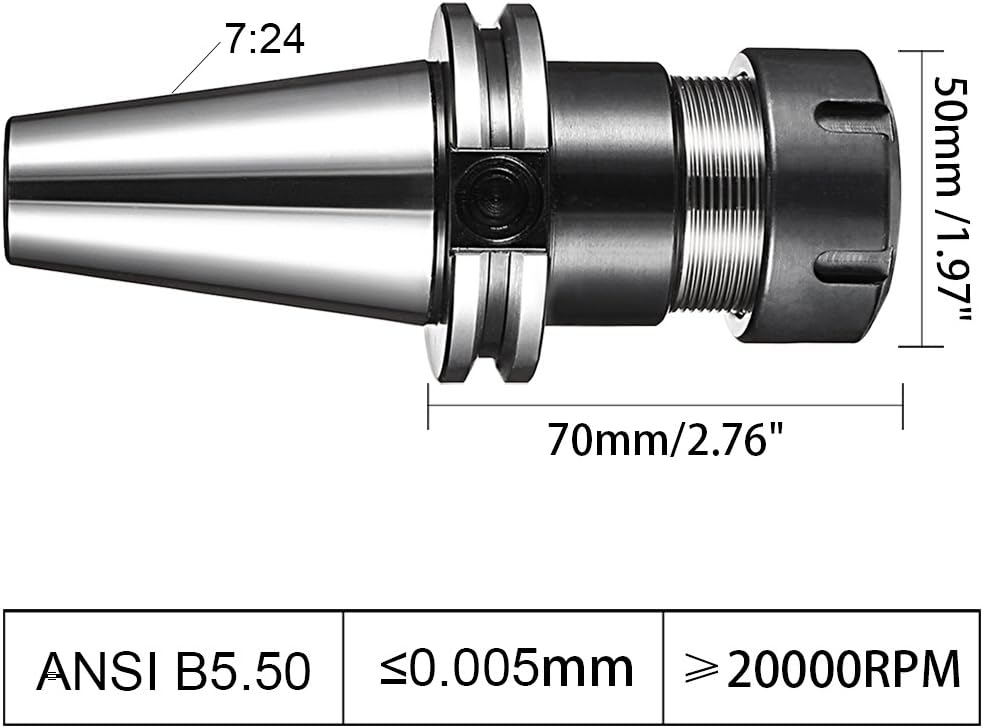

CAT40-ER32-70 HSS Collet Chuck Fine-Balanced Tool Holder CNC Tooling1. Pull Studs Fit on CAT40 ER32-70.2. High Speed True Balance in 20K RPM.3. Tolerance is 0.005mm Maximum.4. Collet chuck with projection length is 2.76-inch. Nut Diameter is 1.97-inch.5. Holder Collet fit for Drilling Machine ,Milling Machine CNC Chuck or Holder.Specification:Product Name: Collet ChuckMaterial: HSSMain Color: Silver Tone, BlackWeight: 1203gTotal Size: 134.5 x 63.5mm / 5.3-inch x 2.5-inch (L*D)Model: CAT40-ER32-70(2.76-inch)Accuracy: 0.005mmSpeed: 20000RPMprojection length: 70mm / 2.76-inchNut Diameter: 50mm / 1.97-inchFemale Thread Size: M16*2PFit Spring Collet Clamping Range: 1-20mm / 0.04-inch- 0.79-inchPackage Content: 1 x Collet Chuck
- Pull Studs Fit on CAT40 ER32-70.
- Collet chuck with projection length is 2.76-inch. Nut Diameter is 1.97-inch.
- High Speed True Balance in 20K RPM. Tolerance is 0.005mm Maximum.
- V-Flange CAT 40 is production balanced to high speed spindle turning and meets industrial needs.
- Holder Collet fit for Drilling Machine ,Milling Machine CNC Chuck or Holder.
| Brand Name | Ruilogod |
|---|---|
| Manufacturer | Ruilogod |
| Model Number | 67d5d48651383fa50653a8fc4b3237 |
| Manufacturer Part Number | d570d754-d00e-c1ecfade6afa5c |
