CHANCS 30W Permanent Magnet DC Motor CH-3420 24V 7000RPM CW/CCW Reversible Electric Gear Motor High Speed Low Noise with 20A PWM DC Motor Speed Controller with Bracket

*This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection. The motor shaft is made with 3 mm diameter hole and 13mm threaded connecting tip. It can be widely usded in cotton candy machine, mini cutting bench, grinder, medical equipment and other mechanical equipment. The Specifications of the motor: Model: CH-3420 Function types: adjustable speed Voltage:24V Rated voltage:2-3.7A Rated power : 30W Speed: 7000RPM Torque:2kgf.cm Package size:13*8*9cm Shaft diamater:8mm Life:3000H Rotation:CW/CCW The specification of bracket: Length: 57.5mm; Width:41mm; Height: 51mm; The measured size data may be subject to some errors! *The specification of the speed controller: Input Voltage: DC 10V-DC 60V (Ultra wide working voltage), Output voltage: linear under load, Control Power: 0.01-1200W, Rated Current: 10A, Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.), PWM Duty Cycle: 0%-100%, PWM Frequency: 25Khz, Product Size(L x W x H): 77*45*28mm, *Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc. *Package include: 1 x DC Motor, 1 x Speed Controllers,1 xBracket

• *This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection.
• *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM； Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Threaded Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 38mm, Rotation:CW/CCW.
• *The specification of bracket: Length: 57.5mm; Width:41mm; Height: 51mm; The measured size data may be subject to some errors.

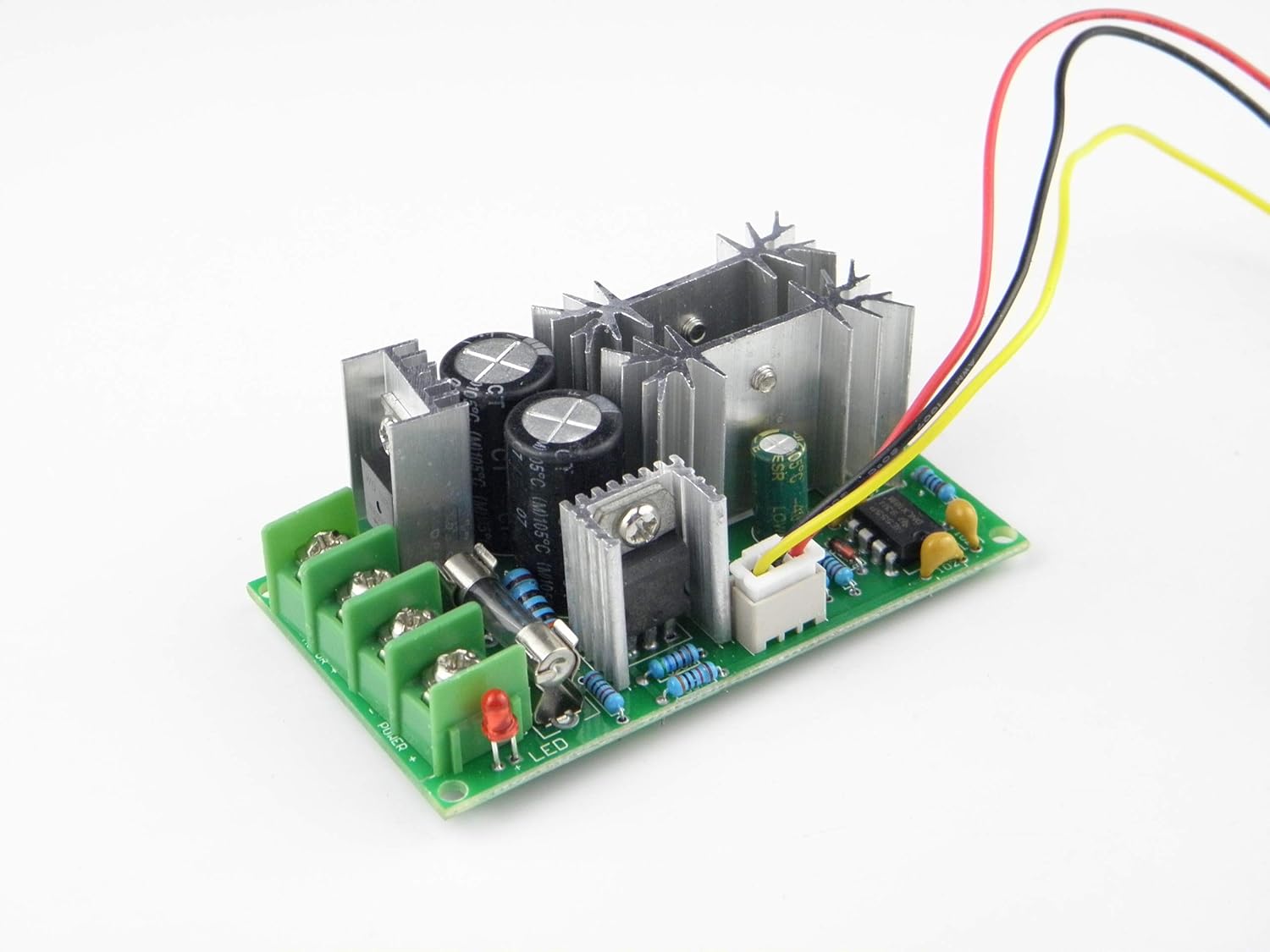

• *The specification of the speed controller: Input Voltage: DC 10V-DC 60V (Ultra wide working voltage),Output voltage: linear under load, Control Power: 0.01-1200W,Rated Current: 10A, Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.),PWM Duty Cycle: 0%-100%, PWM Frequency: 25Khz,Product Size(L x W x H): 77*45*28mm
• *Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.
• *Package : 1 x DC Motor, 1 x Speed Controllers,1 xBracket
