CNCTOPBAOS Micro Harmonic Gearbox Reducer Ratio 50:1,Ultra-Small Gear Drive Rotary Reduction Actuator for Robotic Arms Robot Joints with Flange Output Fit Nema17 42 Stepper Motor Backlash 20 Arcsec
$72.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$72.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
Free 30-day returns Details
Product details
| Management number | 211318848 | Release Date | 2026/04/04 | List Price | $28.80 | Model Number | 211318848 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Main Specifications: Reduction Ratio: 50:1; Backlash: less than 20 arcsec; Torque at 2000r/min Input: 3.5 Nm/ 2.58 ft·lb; Peak Torque at Start and Stop: 8.3 Nm/ 6.12 ft·lb; Max Value for Average Load Torque: 5.5 Nm/ 4.06 ft·lb
- Torque&Speed: Permissible Max Momentary Torque: 17 Nm/ 12.54 ft·lb; Permissible Max Input Rotational Speed: 8500 r/min; Permissible Average Input Rotational Speed: 3500 r/min; Moment of Inertia: 1.4x10^(-2)

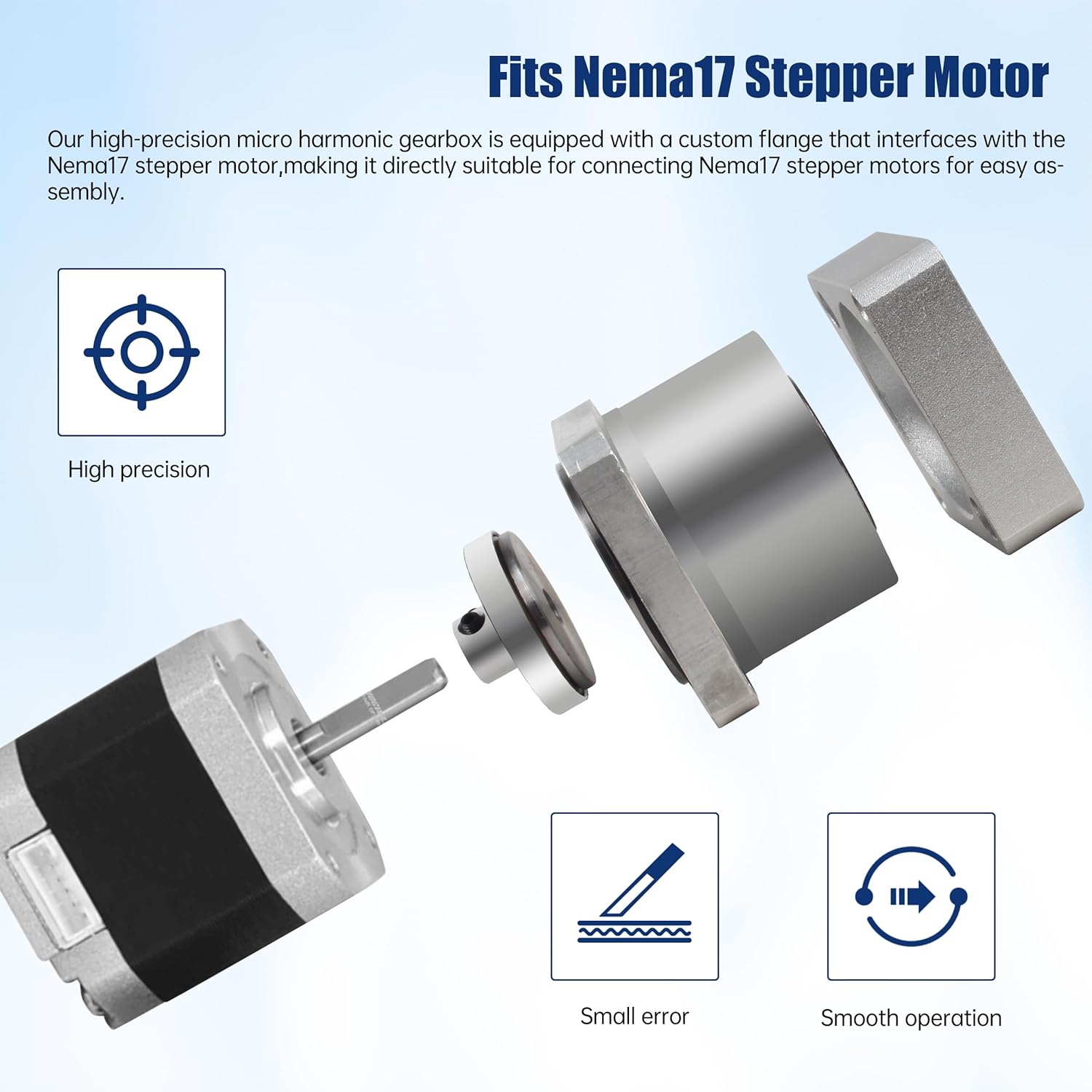

- Fits Nema17 Stepper Motor: Our high-precision micro harmonic gearbox is equipped with a custom flange that interfaces with the Nema17 stepper motor,making it directly suitable for connecting Nema17 stepper motors for easy assembly
- Widely used: Widely used in precision transmission systems such as industrial robots, robotic arms, CNC equipment, cardboard packaging machinery, measurement/analysis/testing machines, medical equipment, and automation industries
- Advantages: Compared with other reducers,it has small backlash, high torque, high reduction ratio, small volume, light weight, small space, excellent position accuracy and repeatability
| Item Weight | 14.1 ounces |
|---|---|
| Manufacturer | CNCTOPBAOS |
| Package Dimensions | 7.48 x 4.7 x 4.7 inches |
