Condenser Pipeline Cleaning Machine 220V/110V, HVAC Tube Cleaner with 24.9ft Flexible Shaft 0.2-0.8in Pipe Dia, Dry-Wet Separation Design Physical Descaling Tool for Heat Exchangers Chillers

Central air conditioning Condenser Pipeline Cleaning Machine 220V Product Parameters: Voltage: 220V Single-phase (Note: One 110V transformer is included. If your power supply is 110V, please connect the machine to the transformer and then connect the transformer to your power supply.) Power: Cleaning machine 370W + High pressure pump 1700W Rotating speed:0-1400rpm Diameter of flexible shaft:12mm (0.5in) Length of flexible shaft:7.6m (24.9ft) Nylon brush:Φ22mm (0.9in) * 10pcs Applicable pipeline diameter: 6-20mm (0.2-0.8in) Quick connection water pipe:20m (65.6ft) Foot switch:3m (9.8ft) Rated water pressure:100Bar Adjustable pressure range:0-22Mpa Water volume:7L/min High pressure water pipe:8m (26.2ft) Self-suction hose:1.8m (5.9ft) Machine size:26.5*49*44cm (10.4*19.3*17.3 inches) Net weight:52.5kg (115.7LBs) Precaution: 1.Before starting the machine, ensure the flexible shaft is fully unwound. Otherwise, the shaft core may be broken. 2.Wear safety goggles and protective gloves before operation. Do not touch the transmission device to avoid hazards while the equipment is in operation. 3.Do not use the equipment when the ambient temperature exceeds 40˚C. 4.The equipment must be grounded. Ensure the power supply parameters match the specifications of equipment. 5.The minimum bending diameter of the flexible shaft is 50cm. Straighten the flexible shaft as much as possible to prevent the shaft core from kinking and prolong the service life. 6.Ensure that the water inside the equipment does not freeze. Item Included (022875): 1 x Condenser Pipeline Cleaning Machine 220V

• Thorough Physical Descaling & Pressure Protection: This condenser tube cleaning machine adopts physical descaling design. A 370W motor drives the flexible shaft and nylon brush to rotate at high speed, cooperating with rinsing water to thoroughly clean silt and scale on the pipe wall. With adjustable pressure (0-22Mpa) and a built-in pressure relief valve, it automatically releases excessive pressure to protect pipelines and ensure stable heat exchange efficiency, avoiding dirt accumulation
• Versatile Cleaning Modes: As a practical HVAC tube cleaner, it integrates three cleaning modes to meet diverse maintenance needs. Tube cleaning mode removes dirt without damaging pipelines; high-pressure cleaning mode (100Bar rated pressure) easily flushes condenser and cooling tower surfaces; self-suction mode works without tap water, with a filter to reduce foreign matter in water. It’s portable and suitable for various construction scenarios, solving the problem of limited cleaning sites
• Dry-Wet Separation for Long Service Life: The central AC condenser pipeline cleaner features an advanced dry-wet separation design, where water enters the flexible shaft directly to avoid water entering the main unit due to seal damage—effectively preventing equipment failure and extending the main unit’s service life. This design addresses the common problem of short service life caused by water leakage, ensuring reliable long-term operation for professional HVAC maintenance

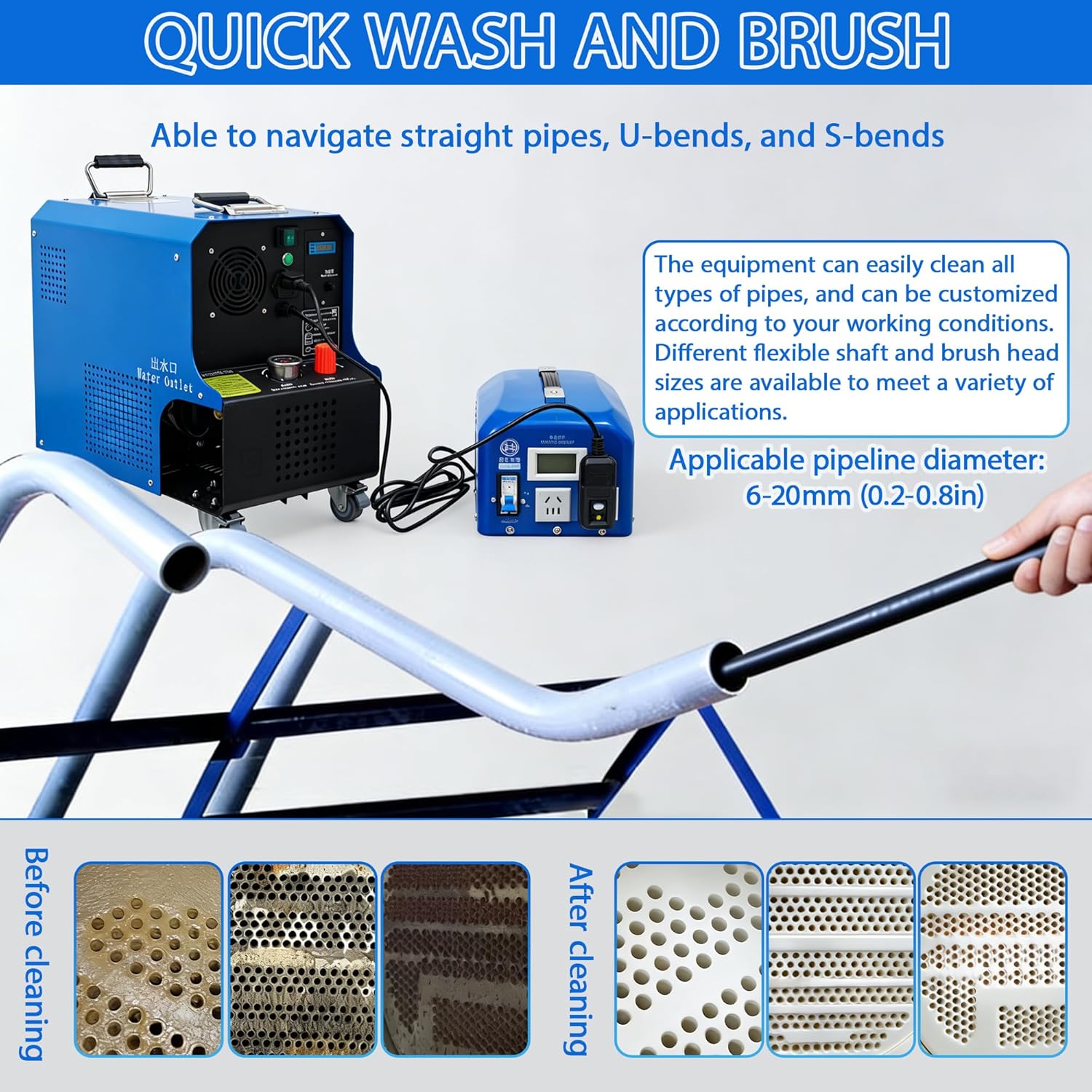

• Flexible Shaft for Complex Pipeline Cleaning: Equipped with a 7.6m (24.9ft) flexible shaft, this flexible shaft condenser cleaner has high flexibility and bendability, suitable for straight, U-shaped and S-shaped pipes. The quick-connect design enables easy assembly and disassembly, matching 10pcs nylon brushes to achieve efficient dust removal and synchronous flushing. It fits 6-20mm (0.2-0.8in) pipelines, easily handling complex condenser pipe bundles
• Precise Control & Safe Hands-Free Operation: This heat exchanger descaling tool is equipped with a compact control panel with digital display, integrating start/stop, speed regulation and state indication for precise operation. The 3m waterproof foot switch frees operators’ hands, allowing long distance control and expanding the safe operation range. It also has real-time pressure monitoring, ensuring safe and efficient cleaning for centrifugal chillers, screw chillers and other equipment
