CPU Cooler and Fan for Intel 1366 BOS-D2 (1366)
Product details
| Management number | 212234000 | Release Date | 2026/04/06 | List Price | $15.98 | Model Number | 212234000 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

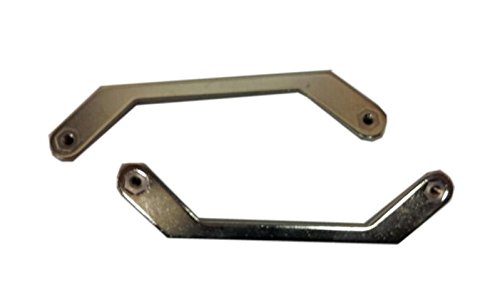

Application: For Intel Core i7, i5, i3, Core 2 Duo & Pentium 4 Socket 1366/1356/775 Cooljag Thermal Solutions is a renowned manufacturer of cooling devices specializing in OEM/ODM heatsinks: Copper, Aluminum, Heatpipe, Skive Fin, Staked Fin, and Extrusion Solution. Cooljag targets specific thermal problems and finds the best overall solution for heat transfer, airflow, noise and cost. Description: Model no.: BOS-D2 (1366) Application: For Intel Core i7, i5, i3, Core 2 Duo & Pentium 4 Socket 1366/1356/775 Dimensions: 123.64 mm (L) x 123.64 mm (W) x 51.4 mm (H) Materials: AL + Copper Core Weight: 490 g PWM Function: YES Thermal Grease: Dow Corning SC102 Includes Backplate Bracket Fan Specifications: Fan size: 80x80x15mm Fan voltage: 12V Bearing: Dual Ball bearing Fan speed: 1200~ 4200 RPM Noise Level: 21~39.9 dBA Air Flow: 13.31~46.57 CFM Power: 1.2~ 6 W Static pressure: 0.33~3.99 mmH2O Fan connector: 4-pin Lead wire: UL1061 #26AWG or equivalent Pin Assignment: Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
- OEM/ODM heatsinks
- Model no.: BOS-D2 (1366)
- Application: For Intel Core i7, i5, i3, Core 2 Duo & Pentium 4 Socket 1366/1356/775
- Dimensions: 123.64 mm (L) x 123.64 mm (W) x 51.4 mm (H)
- Materials: AL + Copper Core
| UPC | 840556099710 |
|---|---|
| Voltage | 12 Volts |
| Wattage | 1.2 watts |
| Brand Name | Cooljag |
| Unit Count | 1.0 Count |
| Noise Level | 39.9 Decibels |
| Manufacturer | Cooljag |
| Material Type | Aluminum, Copper |
| Cooling Method | Air |
| Compatible Devices | Desktop |
| Power Connector Type | 4-Pin |
| Maximum Rotational Speed | 4200 RPM |
| Item Dimensions L x W x H | 4.87"L x 2.02"W x 4.87"H |
