Dinkle Brown DK2.5N-BR DIN Rail Terminal Block Screw Type UL 600V 20A 12-22AWG, Pack of 50
Product details
| Management number | 218152512 | Release Date | 2026/05/03 | List Price | $12.00 | Model Number | 218152512 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

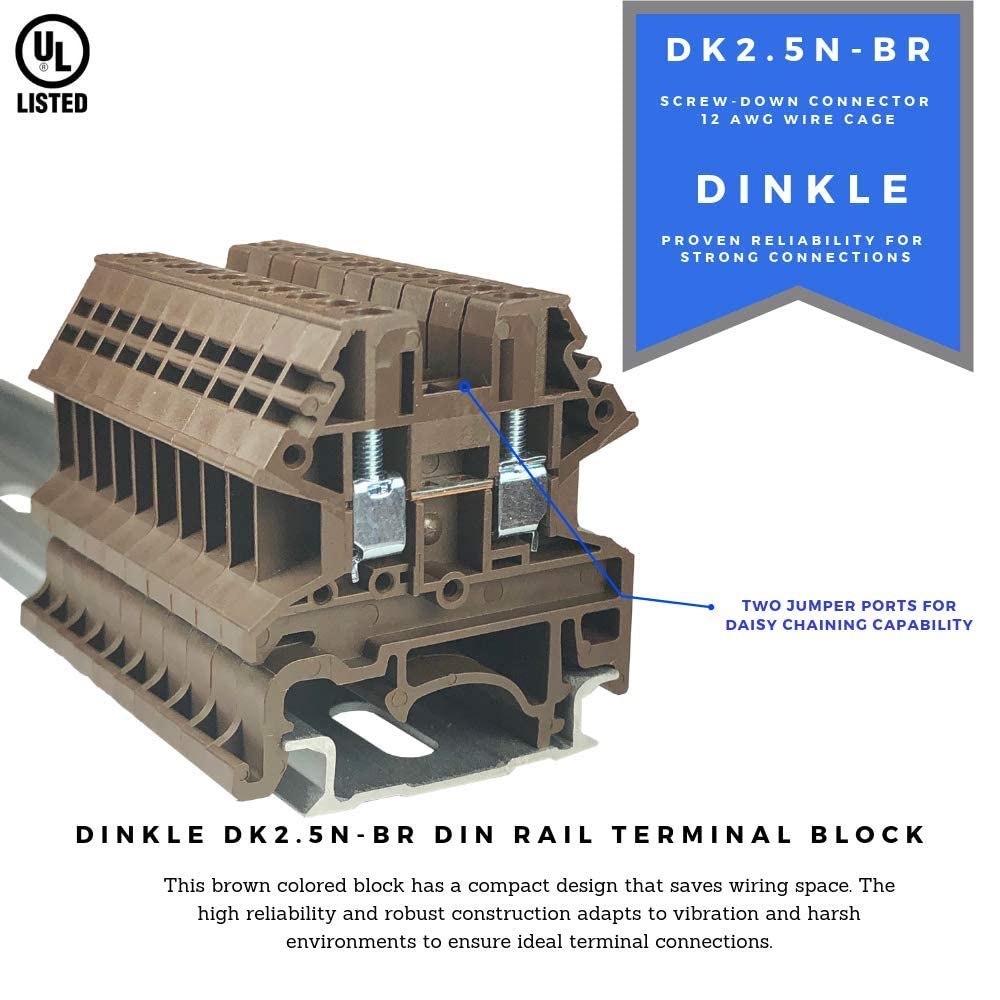

Dinkle DK2.5N-BR brown color block has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault. Rated voltage: UL 600V, IEC 1,000 V. Rated current: UL 20A, IEC 24A. Conductor cross-section, solid(AWG/mm2): UL 22-12, IEC 0.5-2.5. Conductor cross-section, flexible(AWG/mm2): UL 22-12, IEC 0.5-2.5. Rated impulse withstand voltage: 6KV. Torque(N-m): 0.4. Screw: M2.5. Wire strip length: 9-11mm. Insulating material: PA. TxHxW(mm): 5.1 x 39.6 x 40.5. End cover DK4NC-BR. Partition DKNSPS-005. Jumper DSS2.5N-02P, DSS2.5N-03P, DSS2.5N-04P, DSS2.5N-05P & DSS2.5N-10P. Marking label TM26W.
- UL 600V
- UL 12-22AWG
- UL 20A
| UPC | 680847732298 |
|---|---|
| Color | Brown |
| Gauge | 12.0 |
| Model | DK2.5N-BR(50) |
| Pitch | 39.6 Millimeters |
| Voltage | 600 Volts |
| Brand Name | International Connector |
| Part Number | DK2.5N-BR(50) |
| Manufacturer | Dinkle |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 20 Amps |
| Number Of Poles | 2 |
| Centerline Length | 39.6 Millimeters |
| Specification Met | UL |
| Number Of Contacts | 100 |
| Number of Positions | 1 |
