DS04-NFC 360 Degree Continuous Rotation Micro Servo Motor+3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controller for Helicopter Car Boat Servo
Product details
| Management number | 219498058 | Release Date | 2026/05/03 | List Price | $5.99 | Model Number | 219498058 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

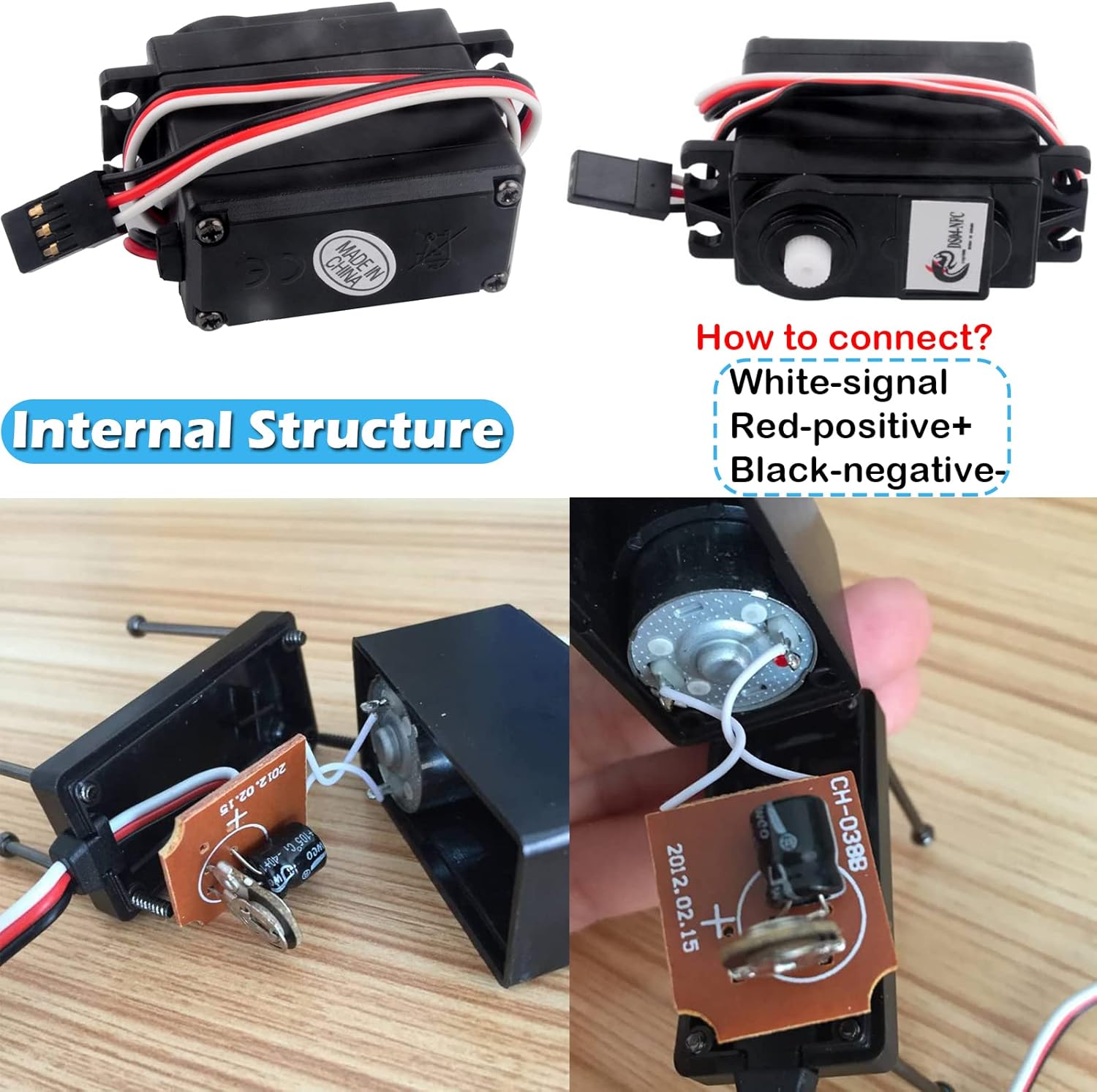

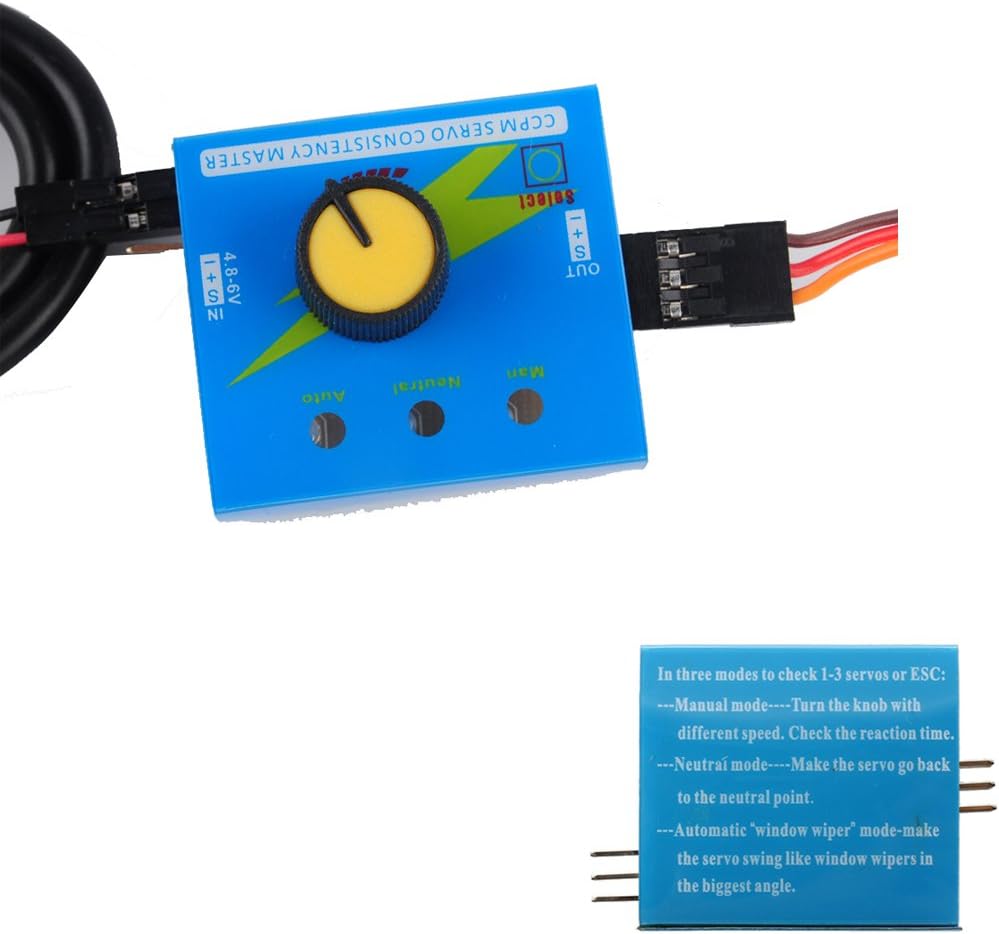

Servo: Model: DS04-NFC For Aerospace Model / Cars / robot Weight: 38g Dimensions: 40.8 x 20 x 39.5 mm Torque: 5.5kg / cm (at 4.8V) Speed??: 0.22sec / 60 ° (at 4.8V) Operating voltage: 4.8v-6v Operating temperature: 0 ℃ -60 ℃ Current: <1000mA Servo Tester: Output: ≤15mA (5.0) Input: DC 4.2-6.0v Output signal: 1.5ms ± 0.5ms Size: 46 * 32 * 17MM Weight: 8g Adjustment modes: manual, automatic, and the median. Features: It can be easily detected and set the dummy bit server, jitter and median. Can be connected to two servos or ESC; MCU control, good stability, high accuracy. Turn the knob, steering can be detected. If you connect the electronic governor (brush or brushless available), you can get rid of the remote control device for manual control, for testing tone Speed ??or motor performance is very practical, no longer cumbersome connecting the remote control and the receiver. It is equivalent to a "hand Dynamic Receiver "feature, playing rudder knob analog transmitters Note: This tester can test more than 55 grams of servos Package Included: 1 x 360 Degree Continuous Rotation Servo 1 x Servo Tester
| UPC | 702795764135 |
|---|---|
| Size | 40.8 x 20 x 39.5 mm |
| Color | Blue |
| Theme | Robotics" or "Remote Control Vehicles |
| Set Name | Servo Motor and Servo Tester |
| Brand Name | Geekstory |
| Unit Count | 2.0 Count |
| Manufacturer | Geekstory |
| Model Number | Geekstory |
| Power Source | DC power supply |
| Material Type | Plastic |
| Operation Mode | Automatic |
| Is Assembly Required | No |
| Age Range Description | Kid |
| Educational Objective | Game, play |
| Supported Battery Types | No batteries required |
| Manufacturer Part Number | Geekstory |
| Manufacturer Maximum Age MONTHS | 20 |
| Manufacturer Minimum Age MONTHS | 20.00 |
