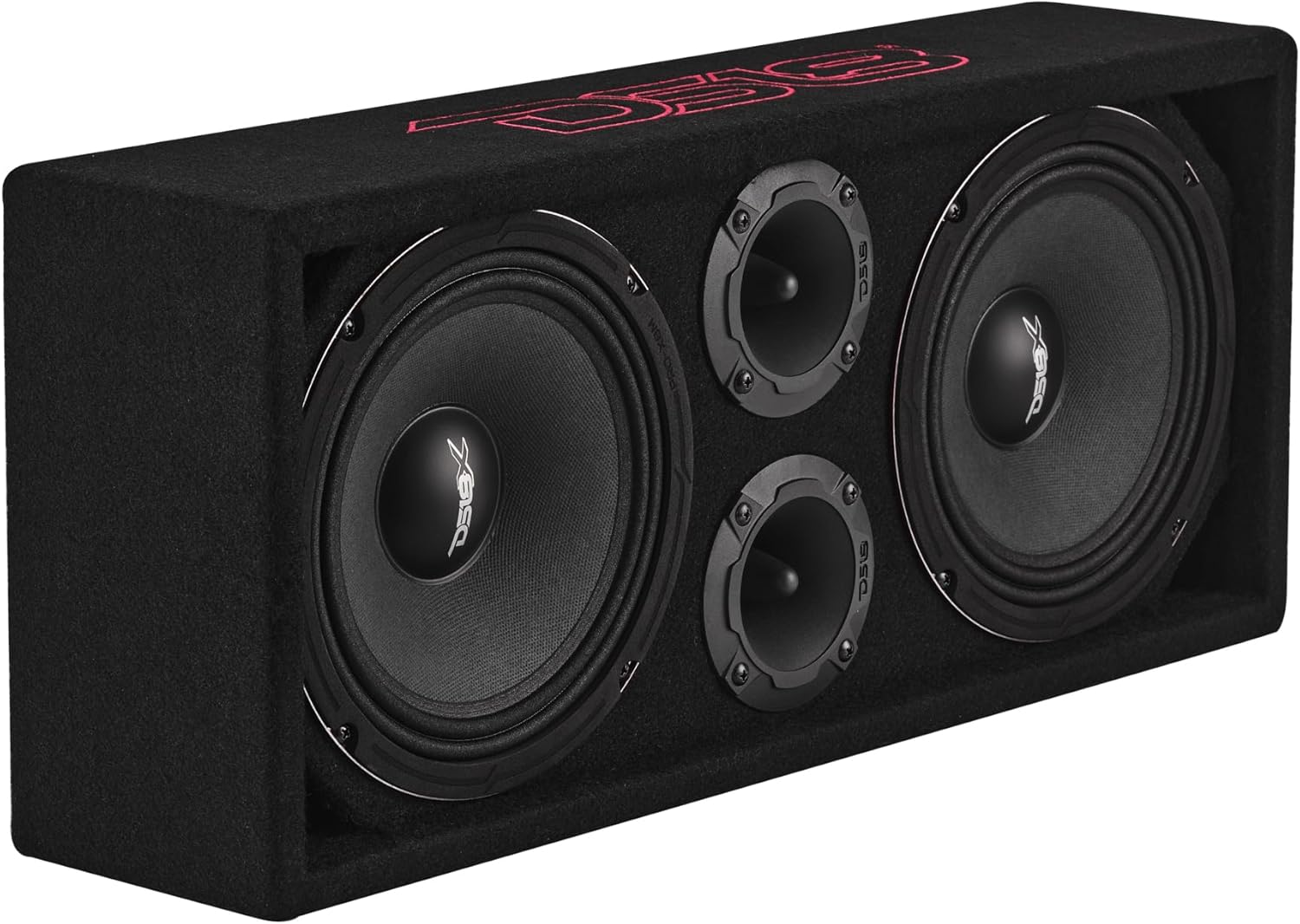

DS18 VOC8LD-PK Ported Loaded Voceteo Enclosure Package with Dual 8" Mids, Dual 3.78" Tweeters, 4-Channel Full Range Amplifier & 12ft OFC Speakon Cable – Chuchero Speaker Box Bundle
Product details
| Management number | 215172037 | Release Date | 2026/04/12 | List Price | $259.98 | Model Number | 215172037 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Speaker SystemDual 8" Mid-Range (PRO-X8M) + Dual 3.78" Tweeter (PRO-TWX2)Total Impedance: 4 OhmsTotal RMS Power Handling: 275WTotal MAX Power Handling: 550WSensitivity (1W/1M): 97 dBFrequency Response: 80Hz – 20kHzRecommended High-Pass Crossover: 120 HzEnclosure SpecificationsInternal Volume: 11.6L / 0.41ft³Port Tune (Fb): 120 HzLoad Configuration: ParallelEnclosure Type: Side PortedMaterial: 1/2" (15mm) MDFFinish: Black Carpet-3dB Dropping Point (F3): 80 HzMeasurementsHeight: 22.25" (565mm)Width: 9.5" (241mm)Depth: 5.25" (133mm)Amplifier Power RatingsRMS Power @ 4 Ohms: 4 x 120WRMS Power @ 2 Ohms: 4 x 200WRMS Power @ 1 Ohm: 4 x 300WRMS Power @ 4 Ohms Bridge: 2 x 350WRMS Power @ 2 Ohms Bridge: 2 x 500WAmplifier Audio SpecsFrequency Response: 10Hz – 20kHzSignal to Noise Ratio: 90dBEfficiency @ 4 Ohms: 97%Damping Factor: 90Input Impedance: 10kTHD (Total Harmonic Distortion): 0.5%Low-Level Input Range: 400mV – 6VSelectable Crossover: HPF / FULL / LPFCrossover Range: 10Hz – 2kHzBass Boost Frequency: 50HzBass Boost Level: 0 – 12dBChannel Separation: 50dBSpeaker Wire / CableType: Speakon (Male)Total Length: 12ft (3.6m)Conductor Material: 100% Copper (OFC)Number of Conductors: 4Wire Gauge: 14 AWGOuter Diameter: 8mmConstruction Type: Stranded / Multi-TwistSheath Material / Color: PVC / Black
- Complete Voceteo Audio Package - Experience DS18’s VOC8LD-PK, a fully loaded ported chuchero enclosure featuring (2) 8" PRO-X8M midrange speakers, (2) 3.78" PRO-TWX2 bullet tweeters, and a powerful FRP-1.2K4 amplifier—all pre-matched for professional sound performance
- Plug-and-Play Loud Setup - This turnkey Voceteo system includes everything needed to get loud fast—preloaded enclosure, full-range amp, and a 12ft 4-conductor OFC Speakon cable for clean, easy connections. Perfect for car audio competitors, show vehicles, and street setups
- Powerful Midrange & Crystal-Clear Highs - Delivers 550W MAX (275W RMS) power handling with 97dB sensitivity and a frequency range of 80Hz–20kHz, ensuring clear vocals, hard-hitting mids, and screaming highs that dominate outdoor and indoor environments
- Rugged & Stylish Construction - Built from ½” (15mm) MDF, finished with durable black automotive carpet, and tuned to 120Hz, this ported Voceteo box is made to withstand vibration, travel, and performance pressure—all while looking clean and professional
- Matched 4-Channel Amplifier Included - The FRP-1.2K4 full-range amplifier delivers up to 1200W max, with HPF/LPF/FULL crossover control, 0–12dB bass boost, and efficient Class AB design. Perfectly matched to power mids and tweeters in a 4-ohm parallel load
| UPC | 810097269958 |
|---|---|
| Brand | DS18 |
| Color | Black |
| Model Name | Voceteo Chuchero Enclosure Package |
| Unit Count | 1.0 Count |
| Manufacturer | DS18 |
| Model Number | VOC8LD-PK |
| Speaker Size | 8 Inches |
| Speaker Type | Midrange and highs |
| BuiltIn Media | Speakon Cable |
| Mounting Type | Universal Mount |
| Number of Items | 1 |
| Audio Driver Size | 8 Inches |
| Additional Features | Speakon terminal + 12ft OFC 4-conductor Speakon cable |
| Warranty Description | 1 year manufacturer |
| Connectivity Technology | Wired |
| Item Dimensions D x W x H | 5.25"D x 9.5"W x 22.25"H |
| Compatible with Vehicle Type | Car |
| Speaker Maximum Output Power | 550 Watts |
