Feetech FS90R Analog Servo 360 Degree Continuous Rotation Micro RC Servo with Wheel for RC Car plane Robot (4 sets)
Product details
| Management number | 219493895 | Release Date | 2026/05/03 | List Price | $9.20 | Model Number | 219493895 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

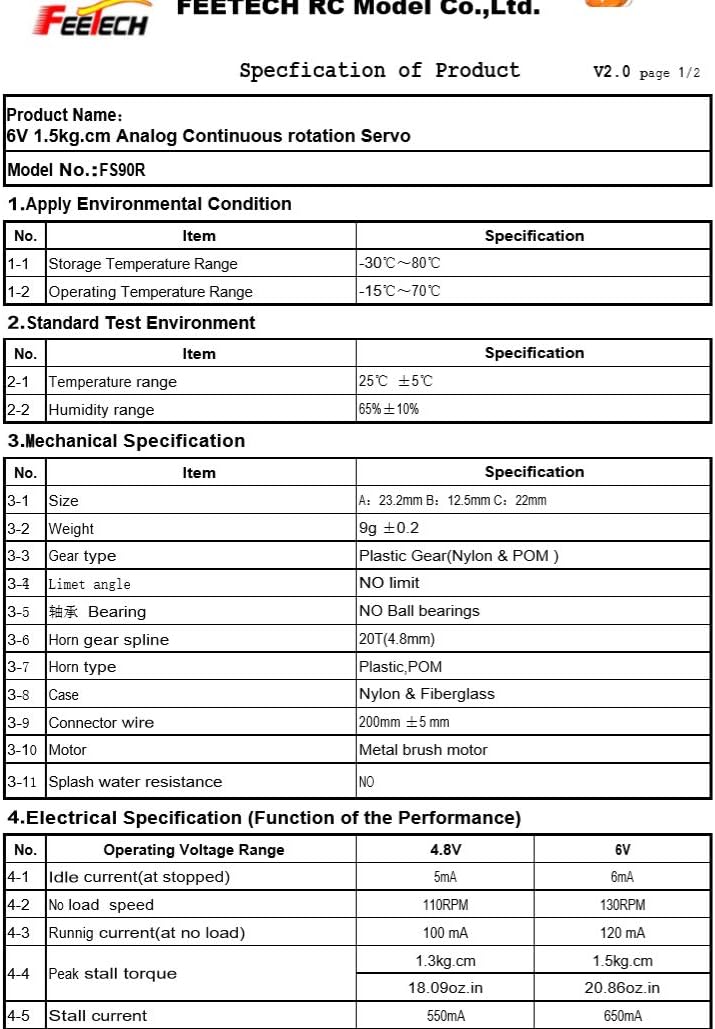

Description for FS90R Servo: Dimensions:23.2 × 12.5 × 22 mm Weight:9g/pcs Operating Speed : 110RPM (4.8V) 130RPM (6V) Stall Torque :1.3kg.cm/18.09oz.in(4.8V),1.5kg.cm/20.86oz.in(6V) Operating Voltage: 4.8V~6V Control System: Analog Direction: CCW Operating Angle: 360degree Required Pulse: 900us-2100us Bearing Type: None Gear Type: Plastic Motor Type: Metal Connector Wire Length: 20 cm Description for wheel: This black plastic wheel is press-fit onto the FS90R output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60 mm (2.36″) in diameter. Two additional mounting holes for 3-40 screws make it possible to use the wheel with several of mounting hubs. Package Inlcuding: 4 X Feetech FS90R Servo 4 X Wheel 4 X Screw
- High Rotation - well-controlled, 360 degree rotation, perfect for robot joint activities
- This feetech servo has CE & ROHS certificate
- This black plastic wheel is press-fit onto the FS90R output gear shaft, and easy to make a nice drive solution for small robots.
- Package Includes: 4 X Feetech FS90R Servo,4 X Wheel,4 X Screw
| Item Weight | 4.2 ounces |
|---|---|
| Manufacturer | S-snail |
| Item model number | FS90R |
| Package Dimensions | 6.69 x 5.55 x 1.81 inches |
| Manufacturer recommended age | 12 years and up |
| Is Discontinued By Manufacturer | No |
