Geekworm for Raspberry Pi UPS, X728 (Max 5.1V 6A) UPS & Power Management Board with AC Power Loss Detection|Auto Power On|Safe Shutdown|Battery Capacity Reading|Low Battery Auto Shutdown|Buzzer
$43.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$43.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
Free 30-day returns Details
Product details
| Management number | 212282721 | Release Date | 2026/04/06 | List Price | $17.20 | Model Number | 212282721 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Function: X728 provides 5.1V 6000mA Power Backup, intelligent and safe power management, safe shutdown, auto power-on, full poweroff from software,Battery capacity reading, Low battery automatic shutdown, Buzzer alarm, RTC
- User Manual: Google Geekworm Wiki search X728 for manual; Matching metal case for X728 and Pi 4 is X728-C1
- How to Power and Specifications: Power supply via Type-C socket : 5Vdc ±5%, ≥3A OR Via DC power jack : 5Vdc ±5%, ≥4A; UPS output : 5.1V ±5% Max 6A; UPS charging current: 2.3~3.2A; Terminal Battery Voltage : 4.24V; Recharge Threshold : 4.1V

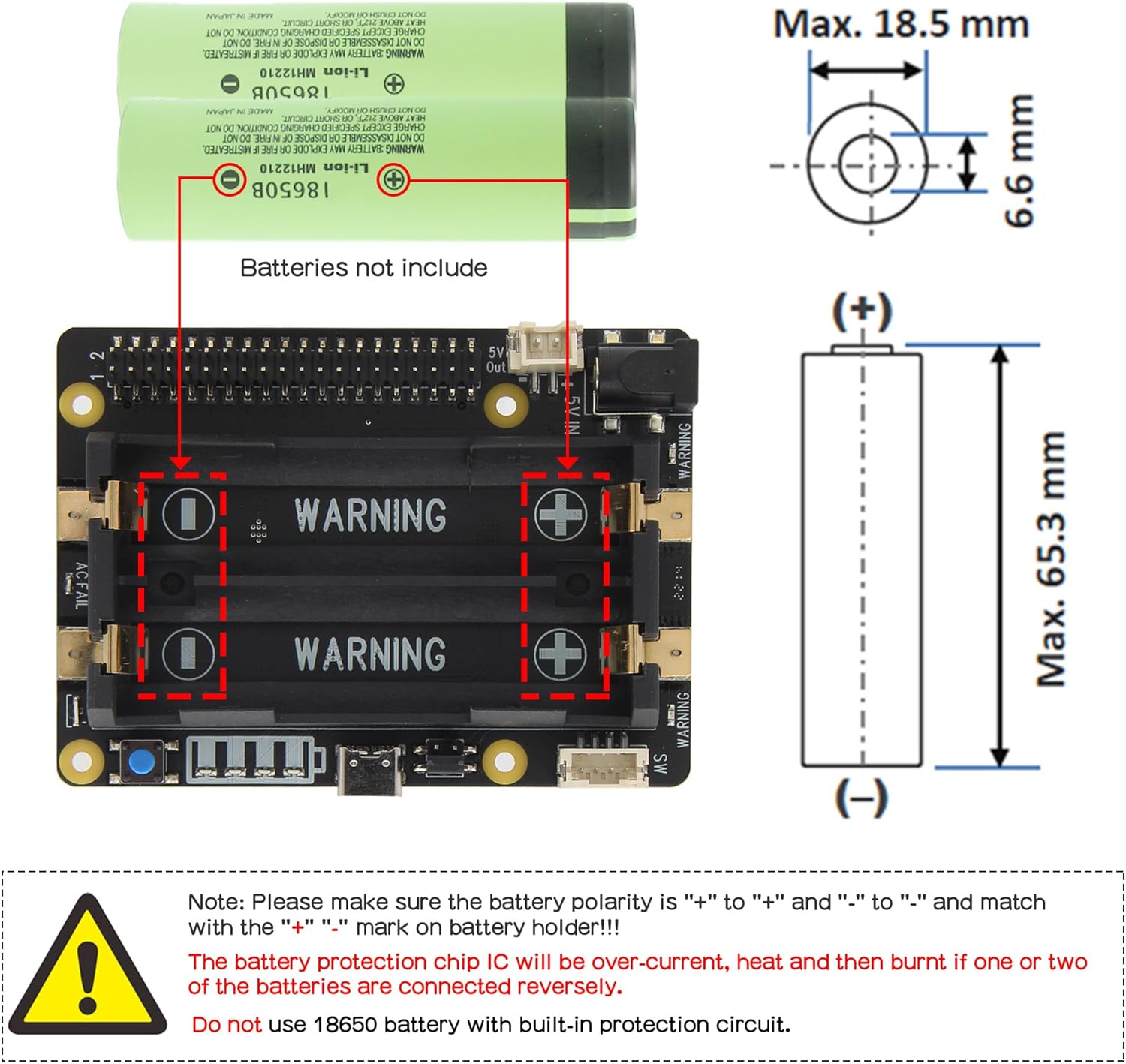

- Important Note: 1. Do not apply power to your RPi via the Micro USB or USB Type-C socket. 2. Do not use battery with built-in protection circuit. 3. Please make sure the polarity of battery is "+" to "+" and "-" to "-" and match with the "+" "-" mark on battery holder
- Application: X728 reserves the 40-pin header to stack with other Raspberry Pi accessory boards for enhanced applications. The X728 can also be used with the X825/X828/X829 (2.5" HDD/SSD Shield) and X857/X862/X872 (MSATA/M.2 SSD shield) for safe data backup
| Brand | Geekworm |
|---|---|
| Color | X728 |
| Runtime | 30 hours |
| Voltage | 5 Volts |
| Wattage | 30.6 watts |
| Amperage | 6 Amps |
| Form Factor | Compact |
| Item Weight | 0.06 Kilograms |
| Manufacturer | Geekworm |
| Model Number | X728 |
| Input Voltage | 5 Volts |
| Maximum Power | 30.6 Watts |
| Connector Type | Type-C, DC jack |
| Output Current | 6000 Milliamps |
| Output Voltage | 5.1 Volts |
| Output Wattage | 30.6 Watts |
| Item Dimensions | 3.35 x 2.52 x 1.38 inches |
| Mfr Part Number | TB-2019-71 |
| Power Plug Type | No Plug |
| Battery Cell Type | Lithium Ion |
| Number of Outlets | 1 |
| Enclosure Material | Plastic |
| Warranty Description | 3 months |
