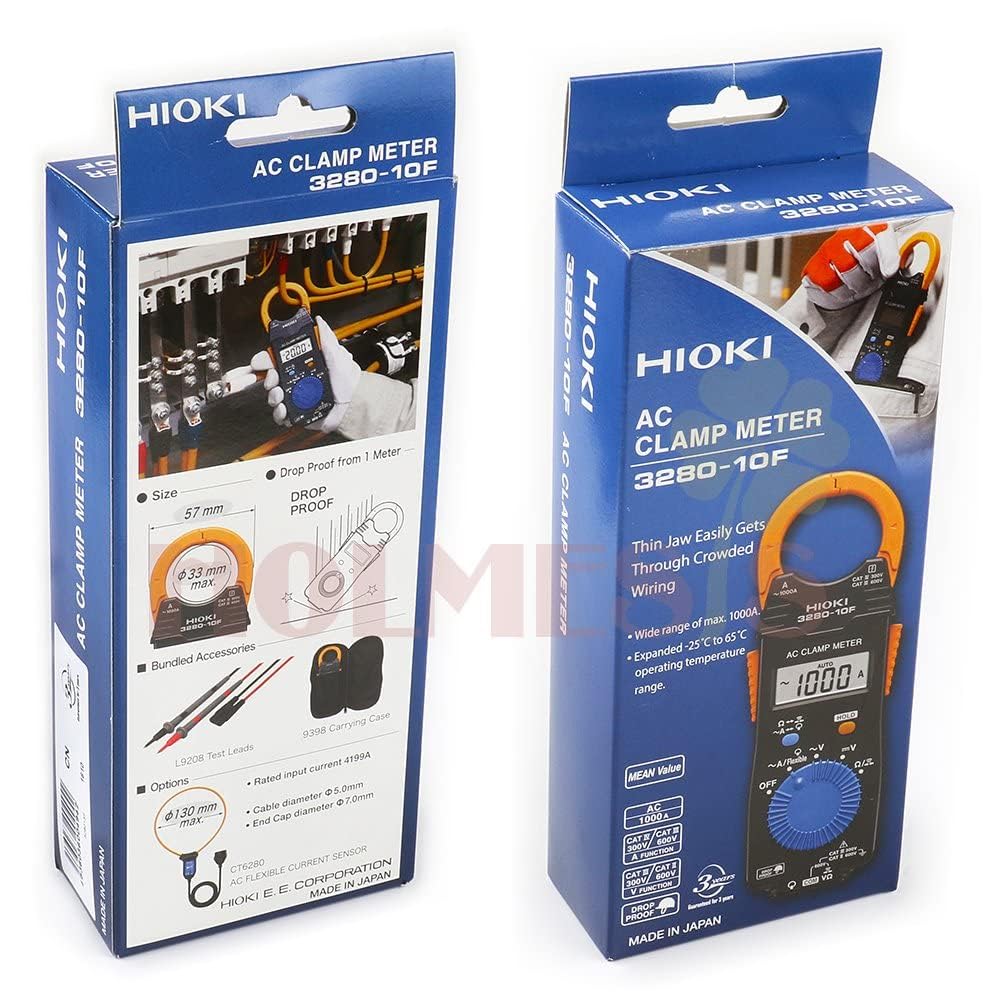

Hioki 3280-10F - AC Current Clamp Meter with Broad Operating Temperature Range, Attachable Flexible Sensor, and Drop-Proof Durability

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots. AC Current 41.99 to 1000 A, 3 ranges (50 to 60 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. DC Voltage 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. AC Voltage 4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: ±1.8 % rdg. ±7 dgt. Crest factor N/A Resistance 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter Display LCD, max. 4199 dgt., Display refresh rate: 400 ms Environmental protection IP40 dustproof and waterproof Power supply Coin type lithium battery (CR2032) ×1, Continuous use 120 hours Core jaw dia. φ 33 mm (1.30 in) Dimensions and mass 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)

• Dual action jaw Light and slim body design Easy clamping in narrow locations Safe and easy operation Independent opening, double lever design Eliminates magnetization induced heat and noise, even in heavy current measurement No metal (iron core) exposureMeasure the fundamental waveform component using the average rectified method
• Measure the fundamental waveform component using the average rectified method
• Expanded -25 °C to 65 °C operating temperature range
• Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
• Hioki flexible sensor CT6280 on the last image is not included (purchase required separately) and Drop proof design withstands drop from a height of 1 meter
