IntXanth 220V 1PH High Quality Electric Kiln High Temperature Heating Machine Electric Kiln Ceramic 3.5KW Firing Small Ceramic Products Sintering Glazes Teaching Demonstrations Creative Projects

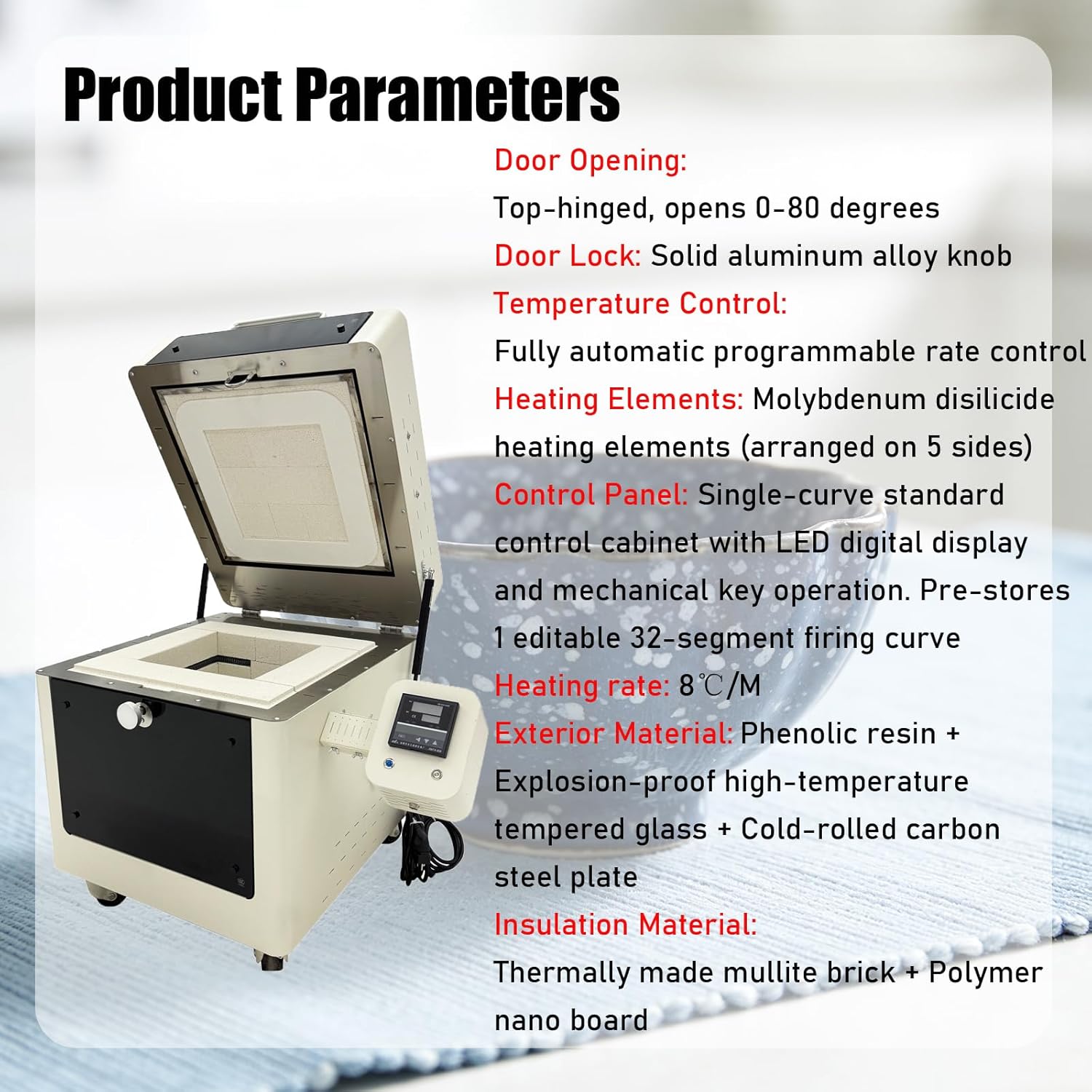

Specification Voltage: AC220V Phase Number: 1 Power: 3.5kW Power socket: 16A Interior Dimensions: 11.8"*11.8"11.0"*(300mm*300mm*280mm) Shelf Board Dimensions: 11.2"*11.2"(26cm*26cm) Effective Volume: 0.88ft3 (0.025m3) Exhaust/Viewing Port Diameter: 0.79"(20mm) Exterior Surface Temperature: ≤50°C (within 3 hours of operation) Capacity Reference: Fits 35 cups (HxW) - 3.9"x2.75"(100mmx70mm) Maximum firing temperature: 1300℃ (2372℉) Conventional firing temperature: 1250℃ (2282℉) Door Opening: Top-hinged, opens 0-80 degrees Door Lock: Solid aluminum alloy knob Temperature Control: Fully automatic programmable rate control Heating Elements: Molybdenum disilicide heating elements (arranged on 5 sides) Control Panel: Single-curve standard control cabinet with LED digital display and mechanical key operation. Pre-stores 1 editable 32-segment firing curve Heating rate: 8℃/M Exterior Material: Phenolic resin + Explosion-proof high-temperature tempered glass + Cold-rolled carbon steel plate Insulation Material: Thermally made mullite brick + Polymer nano board Package Dimensions 33"*29"*48"; 496pounds

• [Versatile & Controllable Vent with Viewport] The operable side vent cover is an intelligent multi-functional design that combines ventilation, cooling, and viewing. Opening it during the initial heating phase effectively releases internal moisture for thorough drying and improved firing quality. During the cooling phase, opening it significantly speeds up the process, saving you time.
• [Precision Chamber] Smooth interior walls lined with high-quality thermally processed mullite bricks (excellent high-temperature resistance/thermal stability), five-sided uniformly arranged heating elements for balanced heat distribution, and a polymer nano-board insulation layer. Together, they form a professional, efficient, energy-saving, and durable heating core—every detail embodying our commitment to perfect artwork firing.
• [Intelligent Control, Precision Firing] The control panel offers full control over the entire firing process : set/lock target temperatures, precisely program 32 segments of ramping/holding durations, and edit freely. With a clear LED display , it enables fully automatic programmable control—from preheating, ramping, and soaking to cooling—simplifying complex procedures into a reliable, automated workflow.
• [Cushioning Seal for Kiln Integrity] The inner edge of the lid is lined with a specialized alumina-silicate fiber paper gasket—a key protective component. This resilient, flexible barrier effectively cushions impact and friction between the lid and kiln body during frequent opening/closing, preventing chipping or degradation of the durable kiln bricks from direct collision.
• [User-friendly Design] Designed for ultimate convenience, four locking swivel casters make this 225kg unit remarkably easy to maneuver. The top-mounted handle is crafted from high-quality aluminum alloy and finished with an anodized oxidation process. The dedicated cooling fan on the machine's side ensures that critical components remain cool and stable even during high-temperature operation.
