IP Ethernet Over Twisted Pair Extenders up to 300M(1000FT),Ethernet Over RJ45 Cat5/6 Network Cable up to 500M (1650FT) for HD Network IP Cameras 2 Pack

Applicable for: 1.Analog video surveillance upgrade network camera. 2.Network extension, network camera video long-distance transmission extension. 3.Elevator monitoring transmission and so on Specification: 1.Transmission rate: 0-100Mbps max. 2.Suitable Cable Type: Twisted pair and telephone wires. 3.Power Supply: DC5V-12V. (Not support PoE,The unit at camera side does not power up the camera) 4.Operating Temperature: -20°C to 55°C degree. 5.Relative Humidity: 5%-95% Non-condensing. 6.Product Size: 72x44x27mm (LxWxH). 7.Weight: about 0.5KG/pair without 2 power adapter. Package content: 2x IP Ethernet over Twisted pair Extenders 2x US standard Power supply adapter

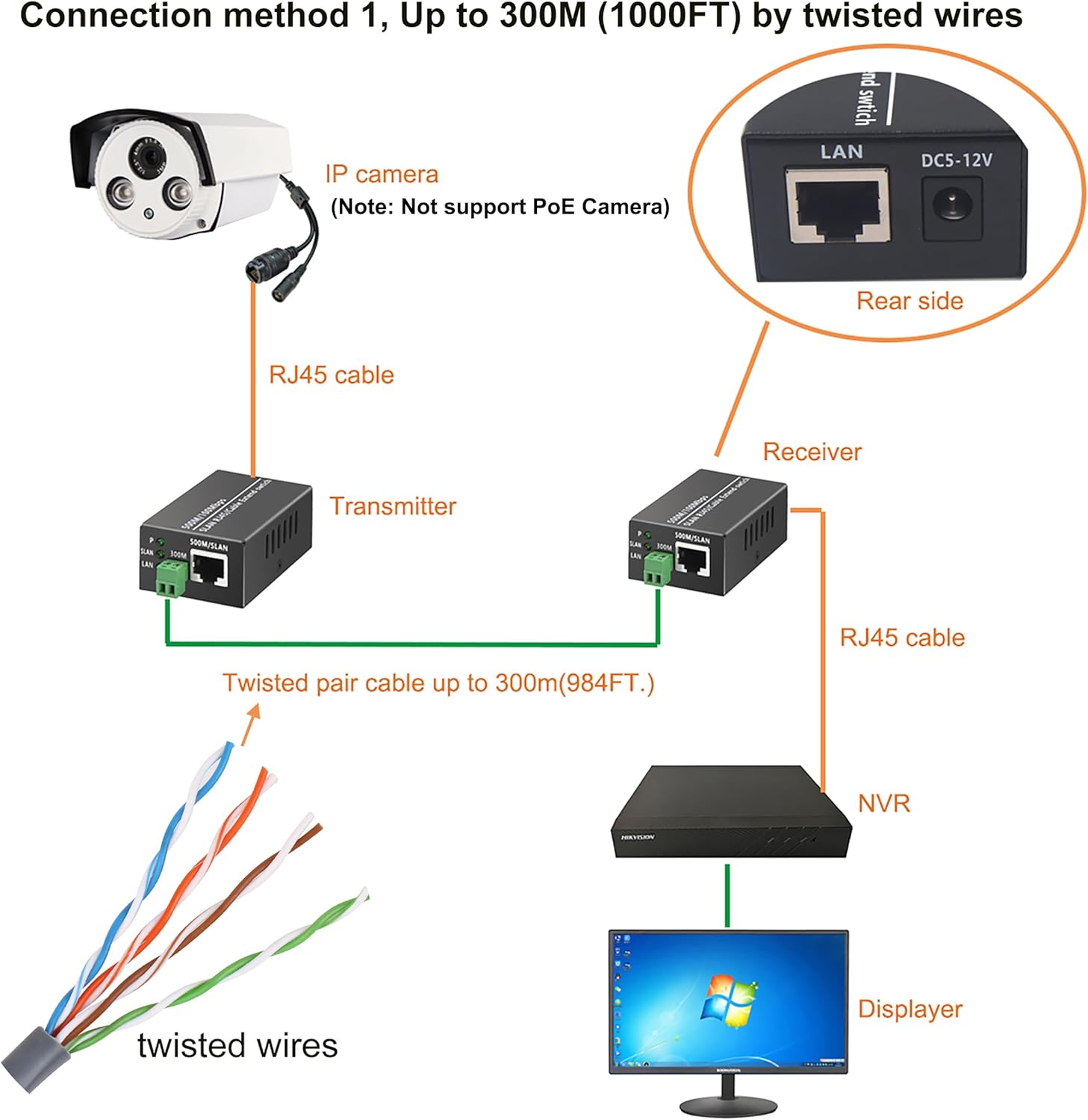

• This unit is dual-use IP Network extender, it can be used by twisted pair wires, it also can be used by Cat5e/6 network cable. Transmission distance: up to 500 meters (1650FT.) through a Cat5e/6 network cable, Up to 300meters(1000FT) through one twisted pair (2 wires).
• Support 720P, 960P,1080P HD Network IP cameras. (Not support PoE,The unit at camera side does not power up the camera)
• Compact design, Durable Metal. Bilateral heat dissipation.
• Support plug and play, and no setting of network terminating equipment, including web camera, needs to be changed
• Cost effective, It is simple to construct at a low cost, for full use can be made of the original coaxial cable, power line or telephone line for cabling; moreover, network installation cost can be reduced since communication media, such as Ethernet, needn’t be re-laid
