Jaw Crusher Rock Crush Machine Electric Shatter Pulverizer for Ore Coal Stone 220V 4KW

This jaw crusher is made of manganese steel which has more hardness than carbon steel.Jaw crusher is mainly used for crushing various medium-hard rocks or ores, and is an important equipment in laboratories and laboratories of metallurgy, geology, building materials and other industries. It can also be used in small-scale ore crushing production.ParameterVoltage: 220VPower: 4KWFeeding Inlet Size: 110*150mmFeeding size: ≤120mmOutput size: 3-25mmRotating Speed: 680 rpmCapacity: 500-3000kg/hInstallation Attention1.The installation foundation of the machine body must be firm and flat to prevent the machine body from being broken due to uneven stress.2.Before commissioning, check whether the fastening screws are tightened and whether the pulley is flexible to be turned by hand. If any abnormality is found, the commissioning can only be carried out after troubleshooting.3.Before the test run, the no-load test run must be carried out. During the idle test, turn the small handwheel to check whether the regulating mechanism is flexible. It can only be used if there is no abnormality after half an hour of no-load.4.The hardness of the broken material should not exceed the medium hardness to avoid accelerating the damage of the parts and reducing the service life.5.For the convenience of discharging, the installation height of the whole machine can be properly raised during installation.Note: This machine has no plug and needs to be connected to the air switch for use by the customer (we have a video of the wiring, if you can't wire it, you can contact us for a video reference)

• 【Jaw Crusher】Jaw crusher is the use of jaw plate mutual compression of the material will be crushed equipment, the machine crushing is more uniform, low energy consumption, suitable for high hardness, viscous materials for crushing, such as ores, limestone and so on.
• 【Drawer-type Discharge Port】The discharge is designed to be fully sealed drawer-type, allows for quick and easy emptying and collection of processed material without cumbersome shutdowns, increasing work efficiency. Also no dust leakage and improves the working environment.

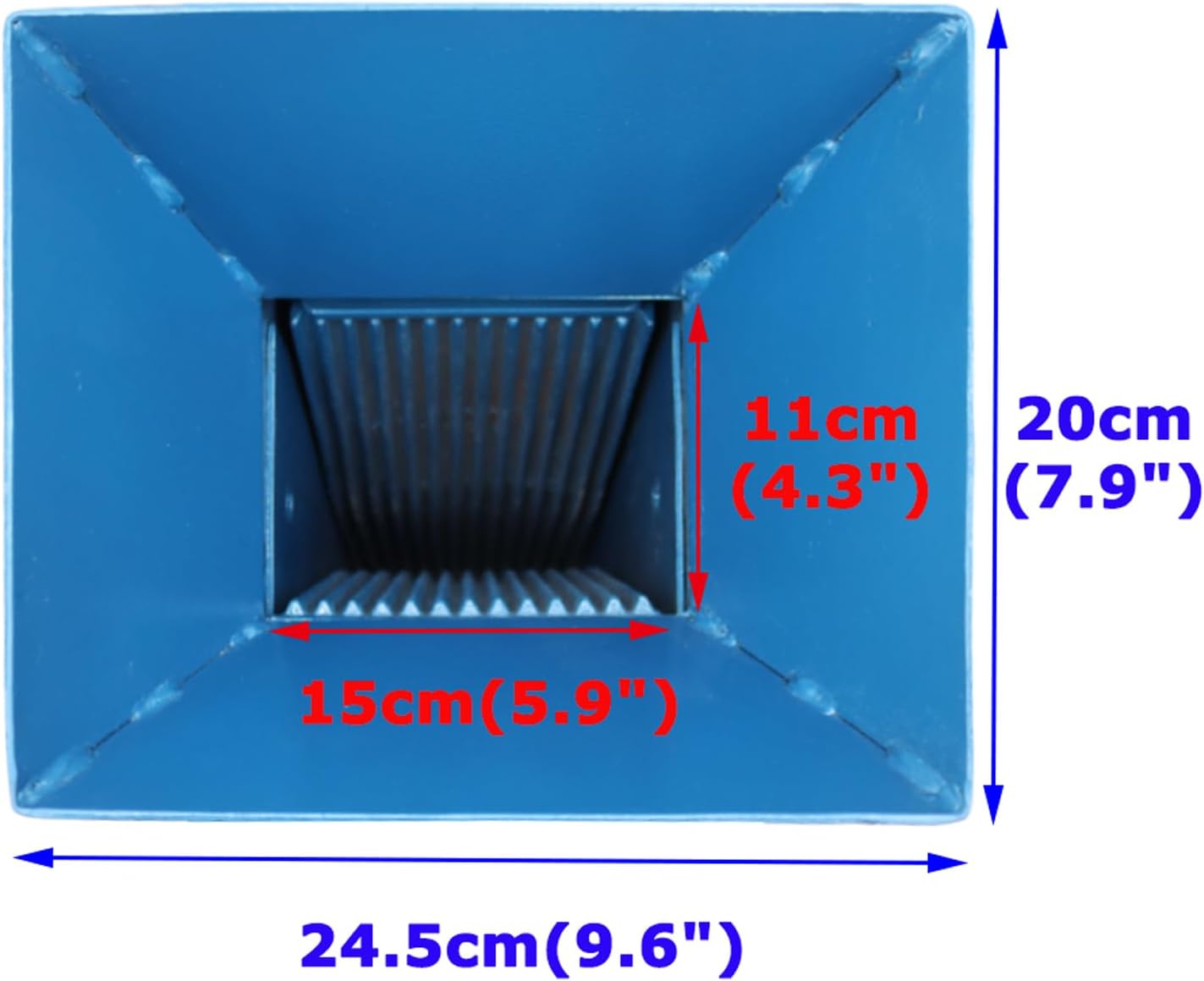

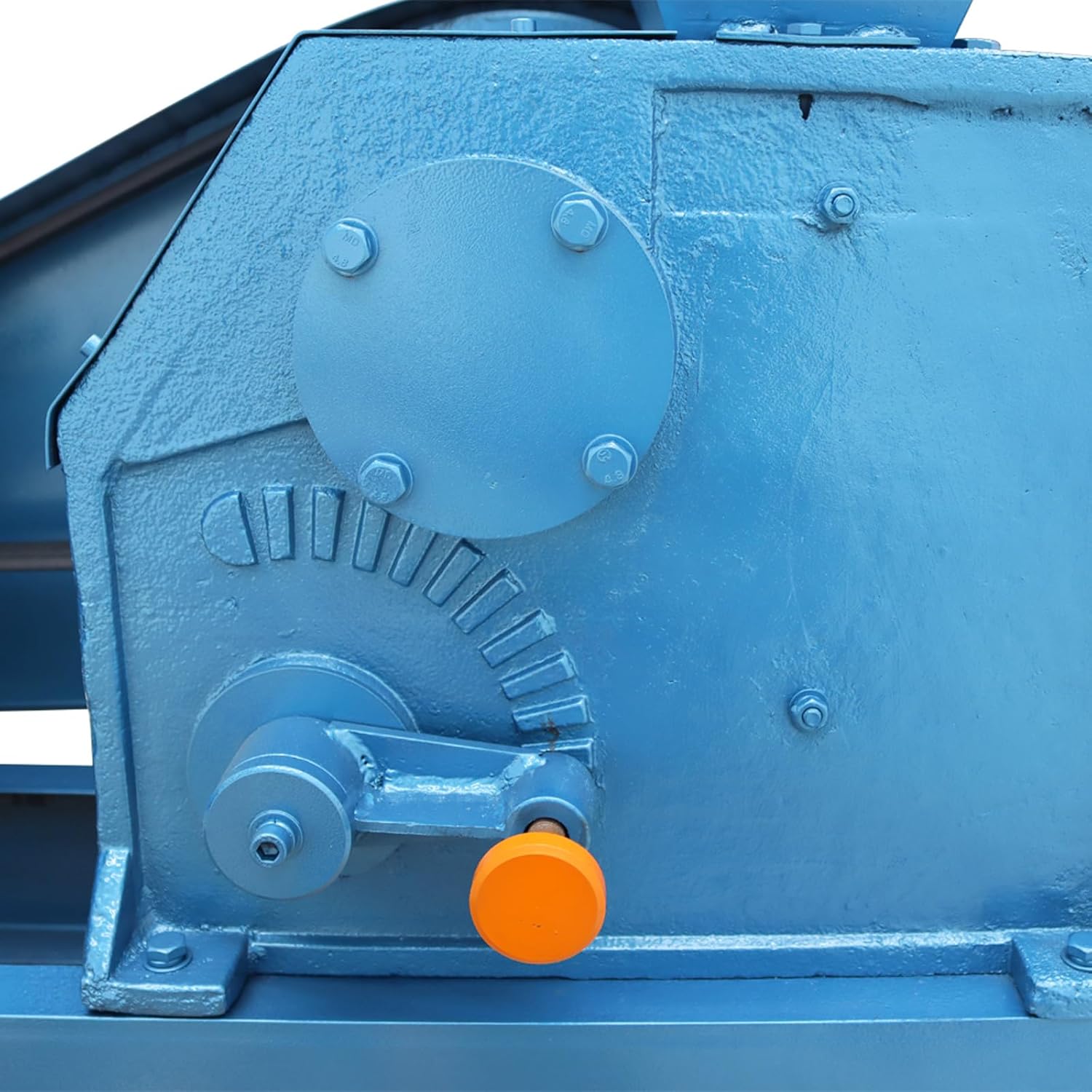

• 【Higher Production】This machine equipped with 220V 4KW high power motor, strong power, low heat generation, stable operation. Enlarged feed port (110*150mm/4.3*5.9in), improve crushing efficiency, with solid adjusting lever, effectively control the particle size, faster and more uniform discharge. The rotating speed is up to 680rpm and the production capacity is up to 500-3000kg/h.
• 【Premium Material】This jaw crusher is made of manganese steel which has more hardness than carbon steel. Thickened flywheel effectively reduce vibration and make the machine run smoothly.
• 【Application】Jaw crusher is suitable for crushing Calcite, talcum, cabblestone, kaolin, slag, steel slag, diabase, coom, coalgangue, maifanstone, basalt, iron ore, quartz sand, CaCO3, bentonite ect.
