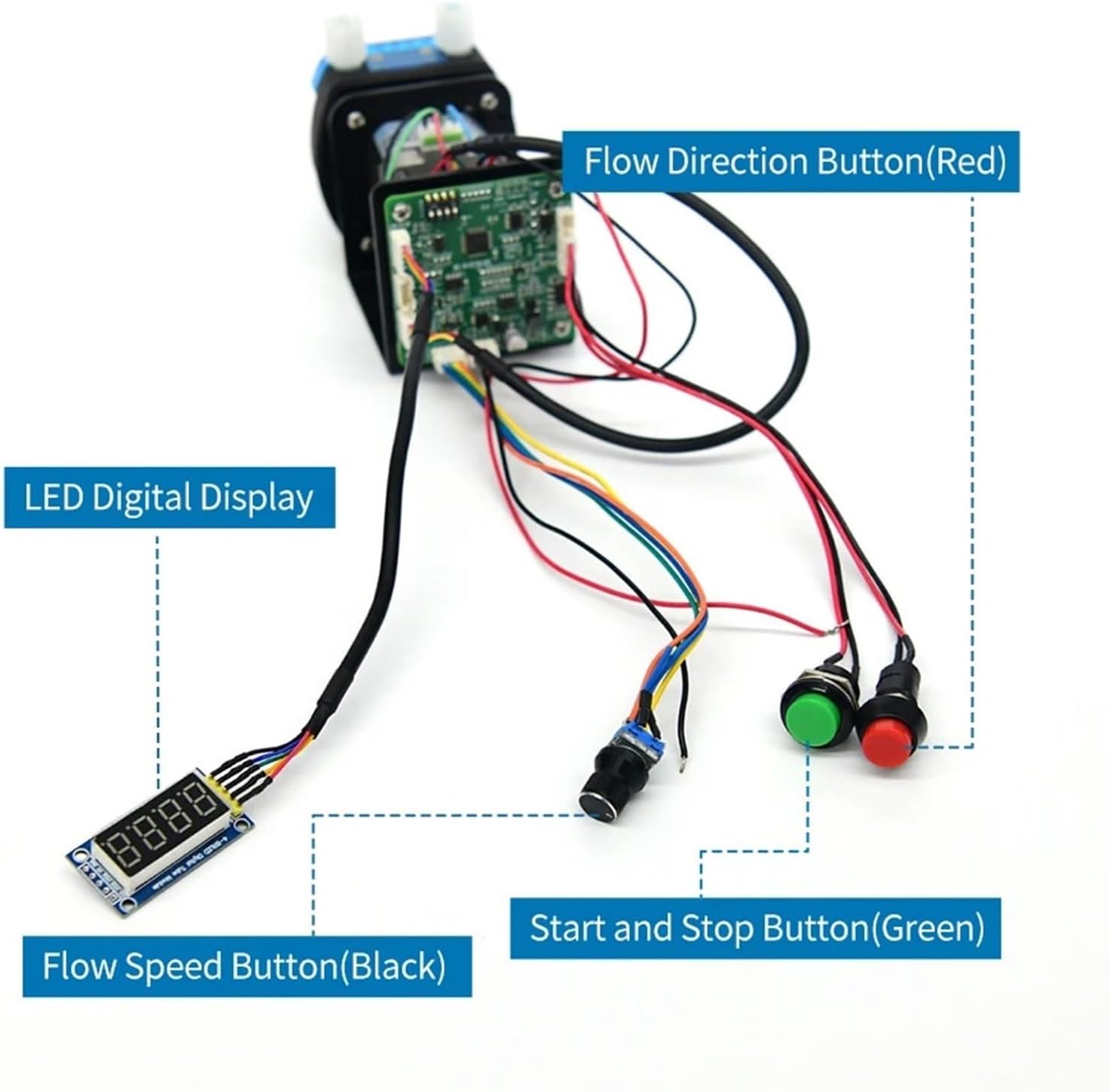

KCM-ODM High Precision Peristaltic Pump 12V /24V Dosing Pump for Lab Liquid Transfer Stepper Motor-Installation ODMA Type(KCM-B163 ODMA)

Solenoid ValvesKCM-ODM Peristaltic Pump Stepper MotorSelection Guide1.Know what liquid do you want to transfer?(Imported BPT Tubing Chemical stable; Silicone tubing is suitable for Neutral liquid.)2.What's your bottle volume and how many bottles you want to fill 1 minute?3.Select the tubing size based on the following chart.All the data in the chart is tested on the water.Silicone tubing is customized.(If you need silicone, please contact us.)If your liquid is viscous or corrosive, please choose BPT tubing.Pump HeadTubeID: inner diameterOD: outer diameterSpeedrange(RPM)Flow rate(ml/min)Tubing lifetimeTubing working temperature6-rotor Pump headB14ID1.6 x OD4.8mm0.1-350641000H-51~1323-rotor Pump headB16ID3.2 x OD6.4mm0.1-3502521000H-51~1323-rotor Pump headB40ID4.0 x OD7.2mm0.1-3503361000H-51~1323-rotor Pump headB25ID4.8 x OD8.0mm0.1-3504521000H-51~132Suitable for viscous and non-viscous liquid transferHigh precision, small pulsationIt can be placed outside the instrument panel to pass ground detection.Simple structure, high reliabilityPump tube can be quickly replacedImported motor has excellent performanceBasic ParametersMotor: Stepper motorVoltage: 12V/24V with Driver Board KMD-42B-P and 2802 controllerFlow: 13.5~452ml/minTube material: Silicon tube/PharMed BPTInstallation method: ODMA/ODMBRotor: 3/6 rotorsPump head: Engineering plasticsCustomize: YesTemperature: 0~40Humidity: Less than 80%ODMA--Rubber shock behind the pump(Regular one)ODMB--No Rubber shockVarious Applications# Experiment# Filling packaging# Laboratory; research institutes# Food and beveragePacking List1 KCM-ODM Pump with Driver Board and 28
