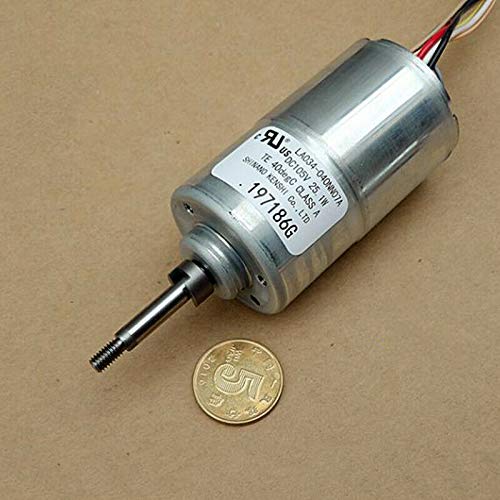

LA034-040NN07A 3-Phase 8-Wire Hall Brushless Electric Motor Double Ball Bearing Large Torque DC105V 25W
Product details
| Management number | 218180240 | Release Date | 2026/05/03 | List Price | $8.35 | Model Number | 218180240 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

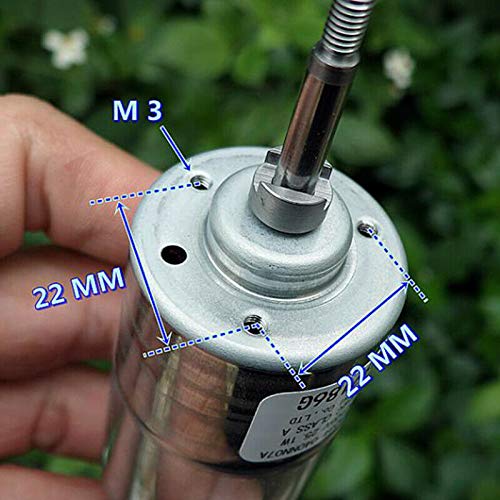

Item Description:SpecificationThis motor is brushless motor,inner rotor,3-phase 8-wire with hall.Double ball bearings with 8 P lead, 3 main wires and 5 hall wires.The motor has no built-in drive board and it needs to be equipped with drive by the buyer himself.1.Motor diameter; 36.5mm2.Motor length: 61mm3.Output shaft diameter: 5mm (with 3.9mm orthodontic thread)4.Output shaft length: 35.5mm5.Lead: 8P lead (3 main wires and 5 hall wires)6.Weight: 233 grams7.Rated voltage: DC 105V8.Rated speed: not clear9.No-load current: not clear10.Test data:Voltage:24V Speed:2800RPMVoltage:30V Speed:3500RPMVoltage:36V Speed:4300RPMVoltage:48V Speed:5800RPMVoltage:60V Speed:7100RPMPackage Include:Item Specification:Commutation: BrushlessType: Micro MotorProtect Feature: Explosion-proofOutput Power: 25WConstruction: Permanent MagnetUsage: Home ApplianceEfficiency: IE 1Output shaft diameter: 5mmMotor diameter: 36.5mmActual Rated Input Voltage: 105V
- Type:other
- Commutation: Brushless
- Type: Micro Motor
- Protect Feature: Explosion-proof
- Output Power: 25W
| Speed | 7100 RPM |
|---|---|
| Voltage | 105 Volts |
| Horsepower | 25 Watts |
| Part Number | Kan3-AL157-MT9-33 |
| Manufacturer | Kanlim |
| Material Type | lead |
