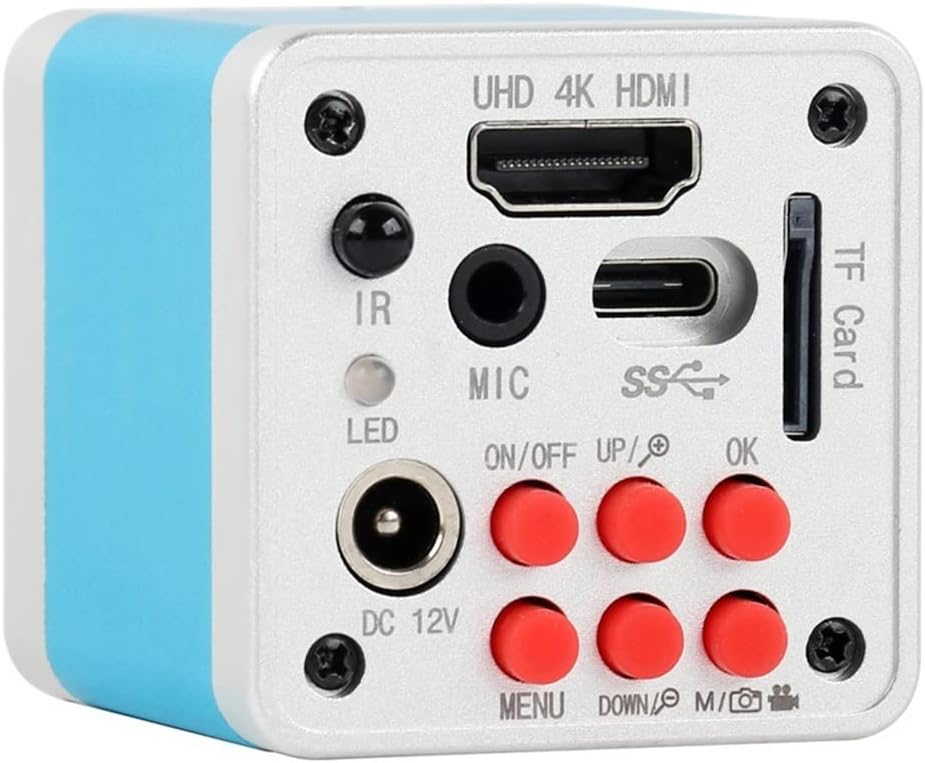

Lab Microscope Replacement Parts Microscope Cameras 4K UHD I_MX334 Digital TF HDMI USB Type-C 3.0 Industrial Electronic Camera for Phone Repair Soldering

Product Type: Microscope Cameras2: For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.3: When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.4: When connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)Features:Sensor: I_MX334Real-time output resolution: 4K/2K/1080PSensor Size: 1/1.8 inchPixel Size: 2.0 x 2.0 mImage Resolution: 8528 x 4808 (41 MegaPixel)Frame rate: 3840 x 2160 @30FPS(4K); 1080P @60FPSImage Format: JPEGWave Length[nm]: 400nm~1000nmLens Type: C/CS MountStorage: TF Card, Maximum support 256G (TF card is not included)Language: Chinese, English, Japanese, French, German, Russian, Italian, Korean, TurkishOutput Interface: HDMI / USB Type-C 3.0 interfaceHDR Function: Support HDR,Multiple exposure HDR, Digital overlap HDRVideo output interface: HDMI/USB dual interface can output image simultaneouslyTimer function: Support taking pictures/video recording at specified timeComparison on the same screen: Real-time observation and comparison of two productsWhite Balance: Support One-click, Auto and Manual white balanceImage Zoom: 7x digital zoomTransverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line, 5 vertical line, any positionsExposure: Auto/Manual, value adjustableEncode: H.264 /H.265 (High Profile)Video format: Video formatInput V: Type-C 5V / DC 12V 1ASize: 45×45×53mm180X C-MOUNT LensWorking distance: 95mmZoom c-mount Lens0.5X C-mount adapterZoom ratios: 6.5:1Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)Size: 180mm(L) * 50mm(DIA)Working distance:145-100mm300X C-MOUNT LensWorking distance: 95mmZoom c-mount Lens1X C-mount adapterZoom ratios: 6.5:1Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)Size: 248mm(L) * 50mm(DIA)Working distance:110-100mm100X C-MOUNT LensMagnification Power by 0.12 - 2X (about 8X - 100X on the display)Work distance: 100mmVisual field :2.4mm-32mmSize: 115mm(L) * 40mm(DIA)Weight: 210gWorking distance:30-280mm130X C-MOUNT LensZoom ratio: 15: 1Magnification Power by :1X~120XMaterial vision: 2.4mm-36mmWorking distance: 55mm-570mmLens length: 110mmInterface size: 28mm200X Working distance:100mm -175mm500X Working distance:90mm -110mmConnector:CS C mountZoom:continouasly variable zoomObjective Magnification:0.7X - 5X(about 28 - 200X on the display)/(about 70 - 500X on the display)Eyepiece lens adapter:0.4X/1XFixed position:50mmLocking:0.7X - 5X LockingThread:42mmAuxiliary Objective Lens:0.35X, 0.5X, 2X,1X (optional)Size:132mm(L) * 55mm(DIA) / 175mm(L) * 55mm(DIA)56 LED Adjustable Compact Microscope Ring LightProvides intense and focused shadow-free illumination56 bright white LED bulbsLighting direction changeableVariable intensity controlIntense and focused shadow-free illumination100,000 hours of lifePower input: 100-240V, 50-60HZ, auto switchingInside diameter of the ring light: 1.0" (27mm)Overall outside diameter: 1.77" (45mm)Working Distance: 27mm-120mmPackage including:1 x 4K Microscope Camera1 x Power supply1 x USB line1 x HDMI line1 x Remote ControlOptional Accessories Incluede:1 x C-MOUNT Lens(100X or 180X or 300X or 130X or 200X or 500X)1 x 56 LED Adjustable Microscope Ring Light

• Product Type: Microscope Cameras. Real-time output resolution: 4K/2K/1080P. Sensor Size: 1/1.8 inch. Pixel Size: 2.0 x 2.0 m.
• Image Resolution: 8528 x 4808 (41 MegaPixel). Frame rate: 3840 x 2160 @30FPS(4K); 1080P @60FPS. Image Format: JPEG. Wave Length[nm]: 400nm~1000nm. Lens Type: C/CS Mount.

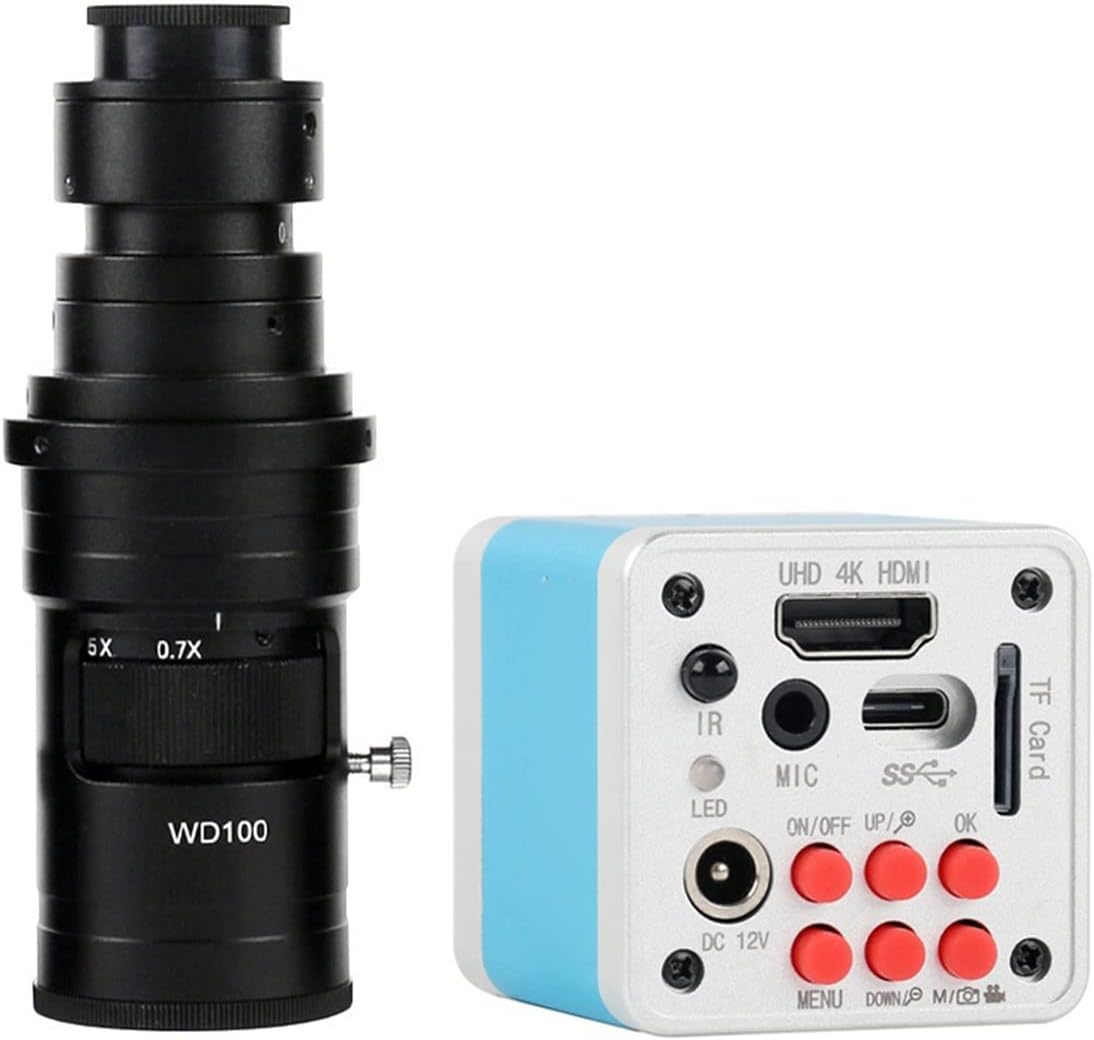

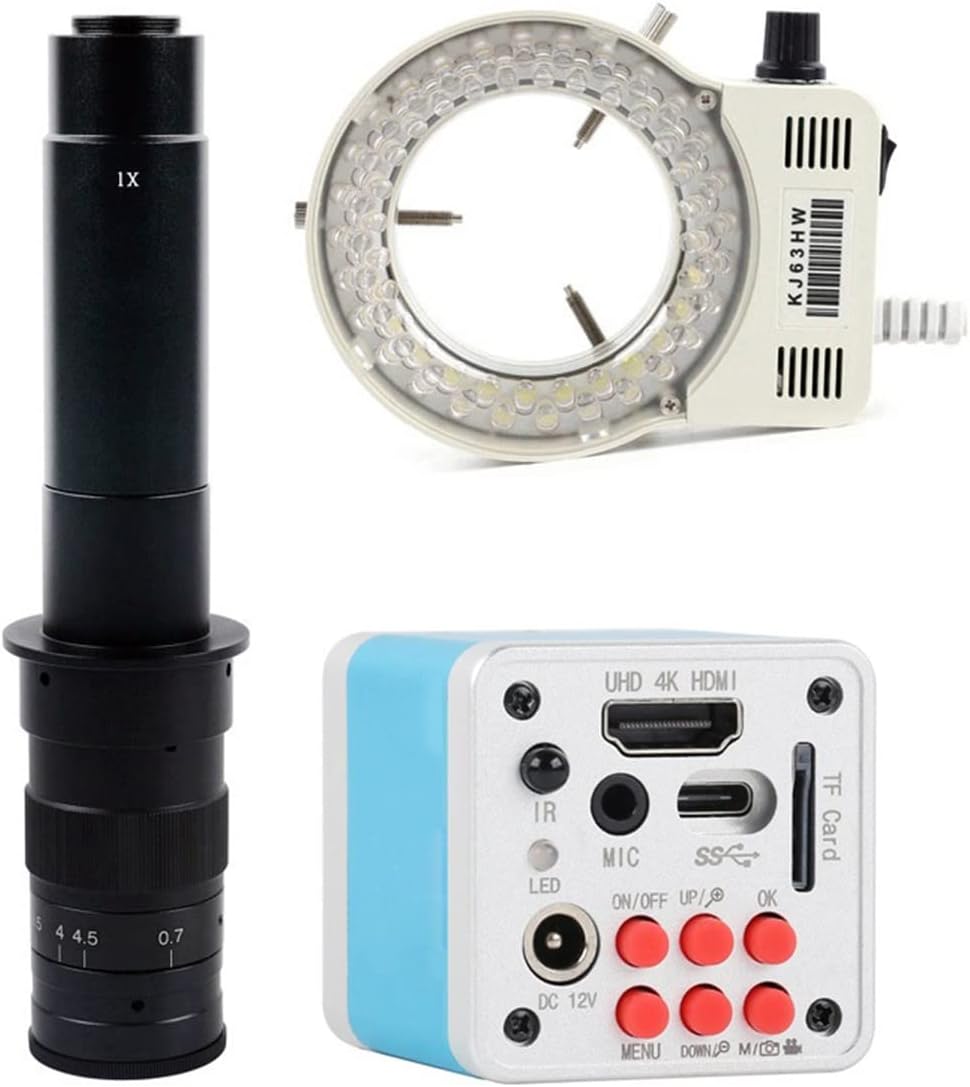

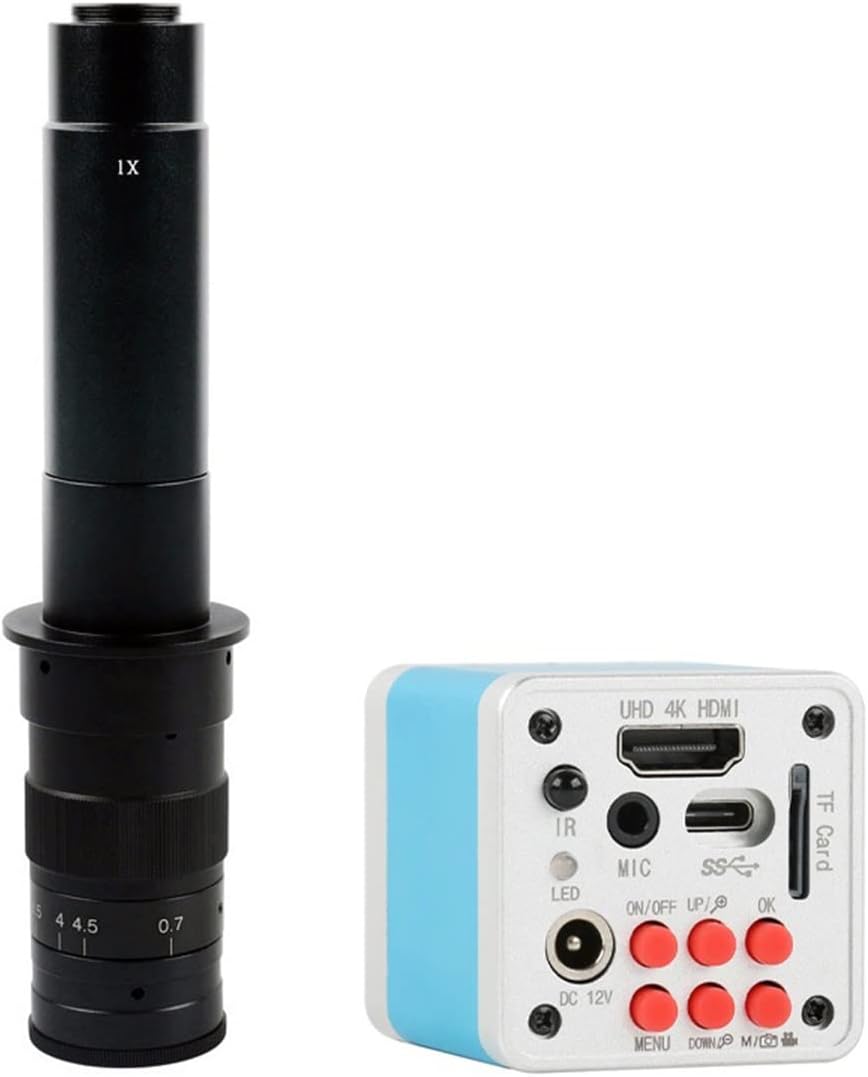

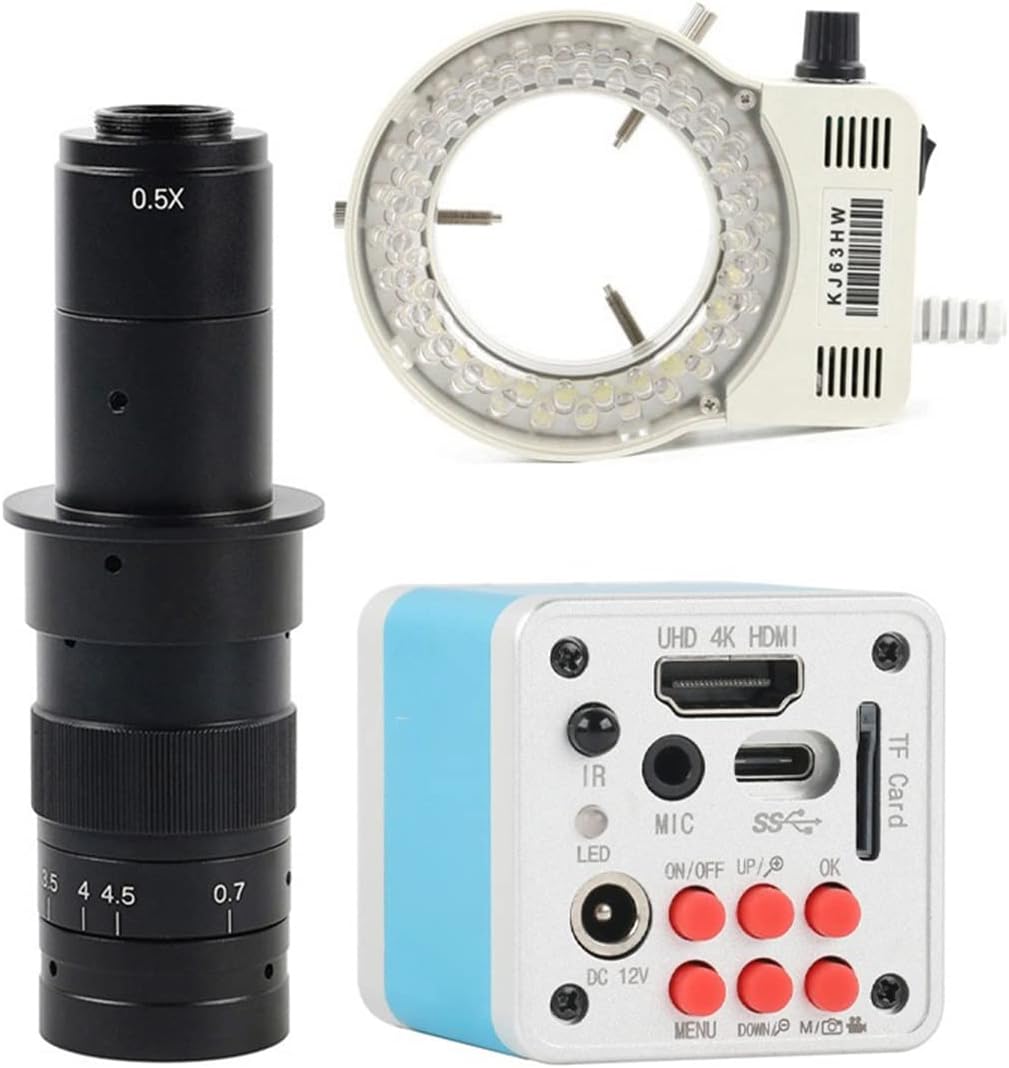

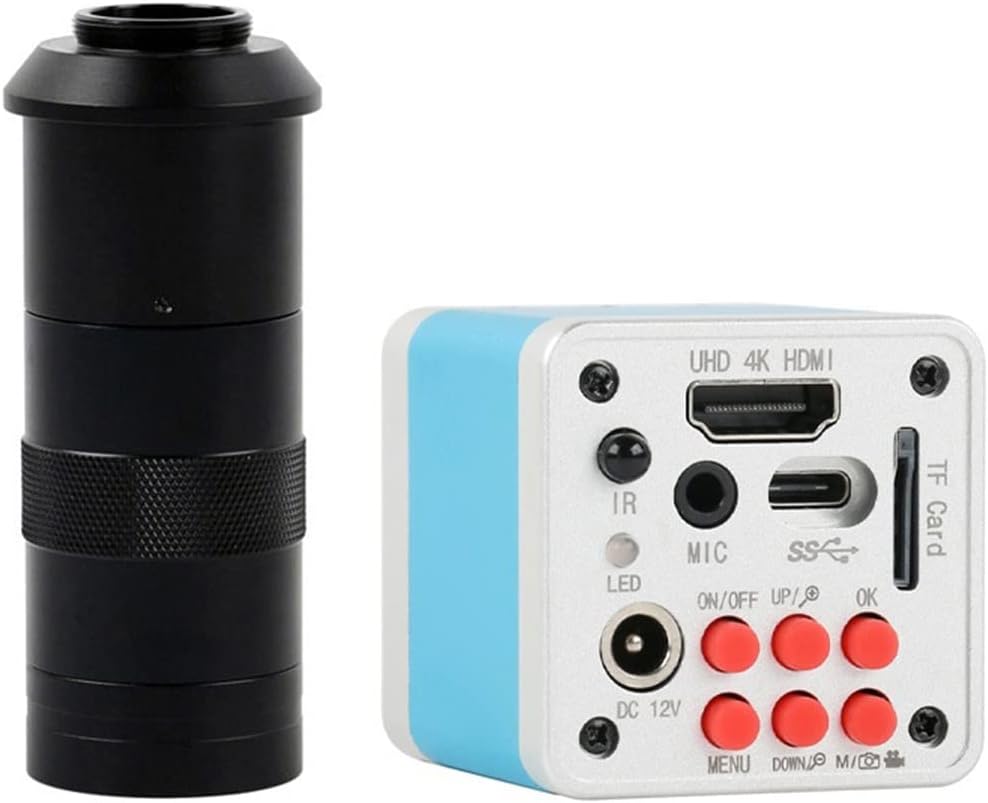

• Including: 1 x 4K Microscope Camera, Optional Accessories Incluede: 1 x C-MOUNT Lens(100X or 180X or 300X or 130X or 200X or 500X).
• Includes essential lab microscope accessories such as eyepieces, objective lenses, stage clips, and replacement parts for comprehensive microscope maintenance and operation.
• Designed to fit most standard biological and compound microscopes. We typically respond promptly within 24 hours. available to assist with product questions and technical guidance.
