LCG Metal Prefixal Gearbox with 30% Overdrive Gear Front Motor Transmission Transfer Case for 1/10 RC Crawler SCX10 I II 90046 Capra LCG Chassis Upgrade Parts (Red)
Product details
| Management number | 218141775 | Release Date | 2026/05/03 | List Price | $9.20 | Model Number | 218141775 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

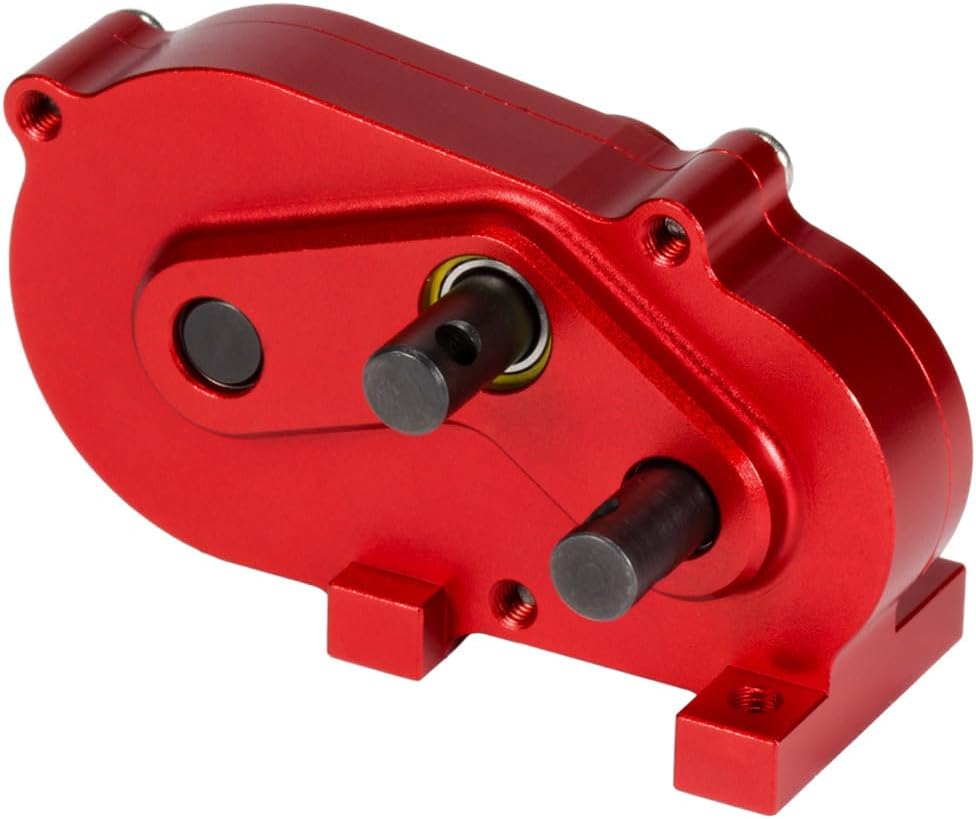

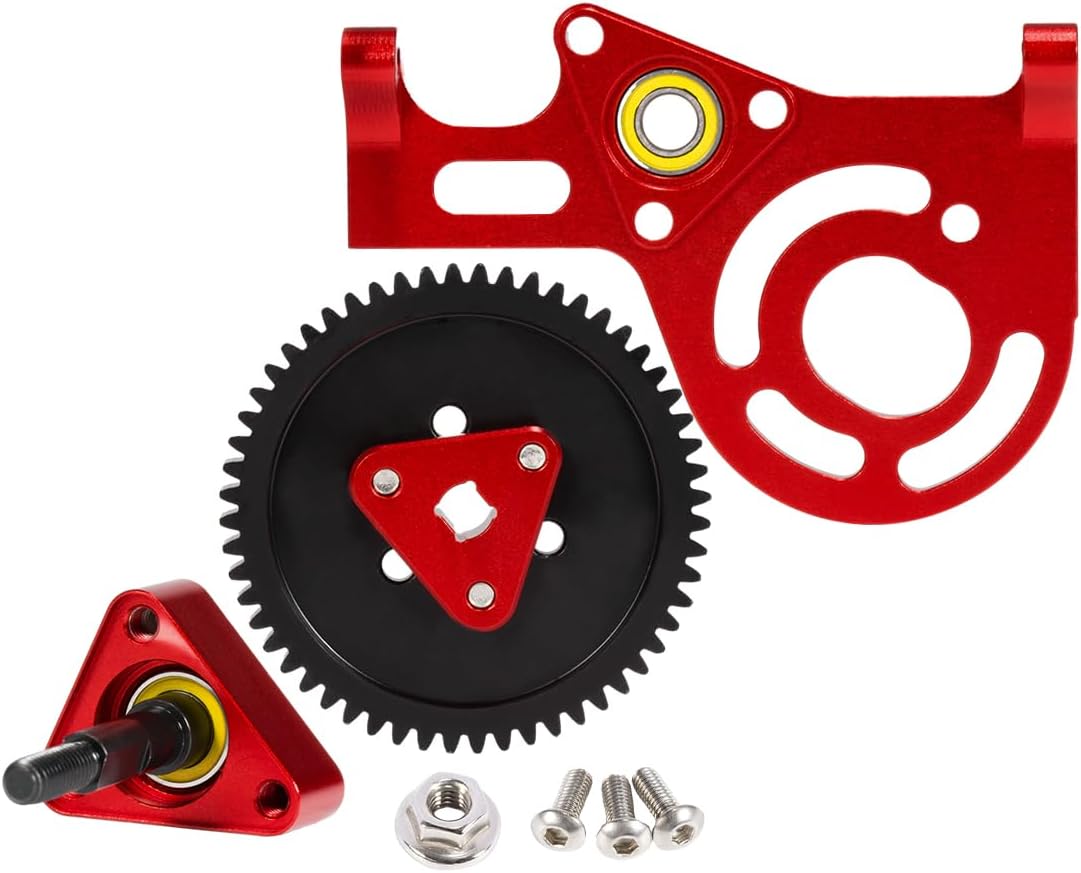

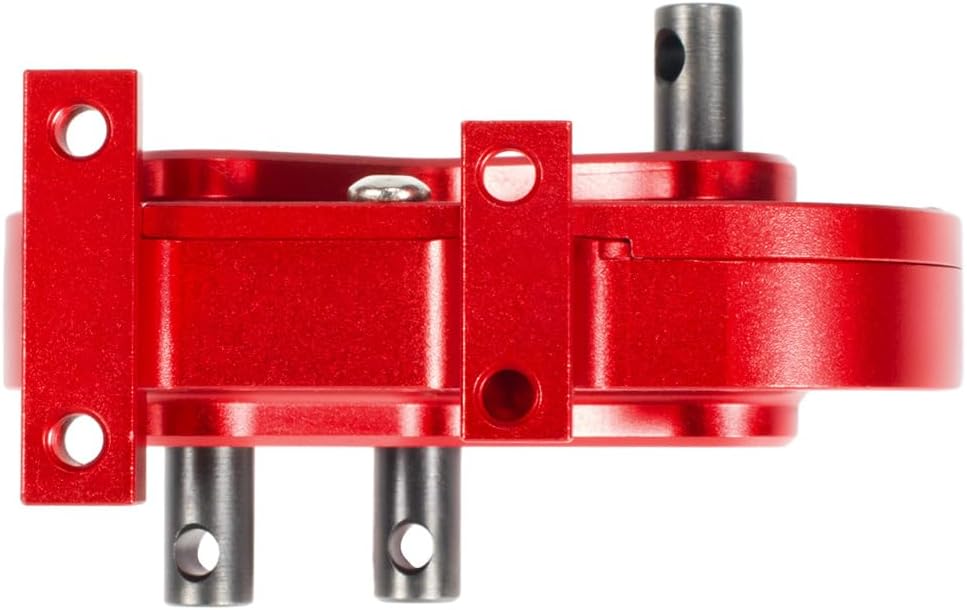

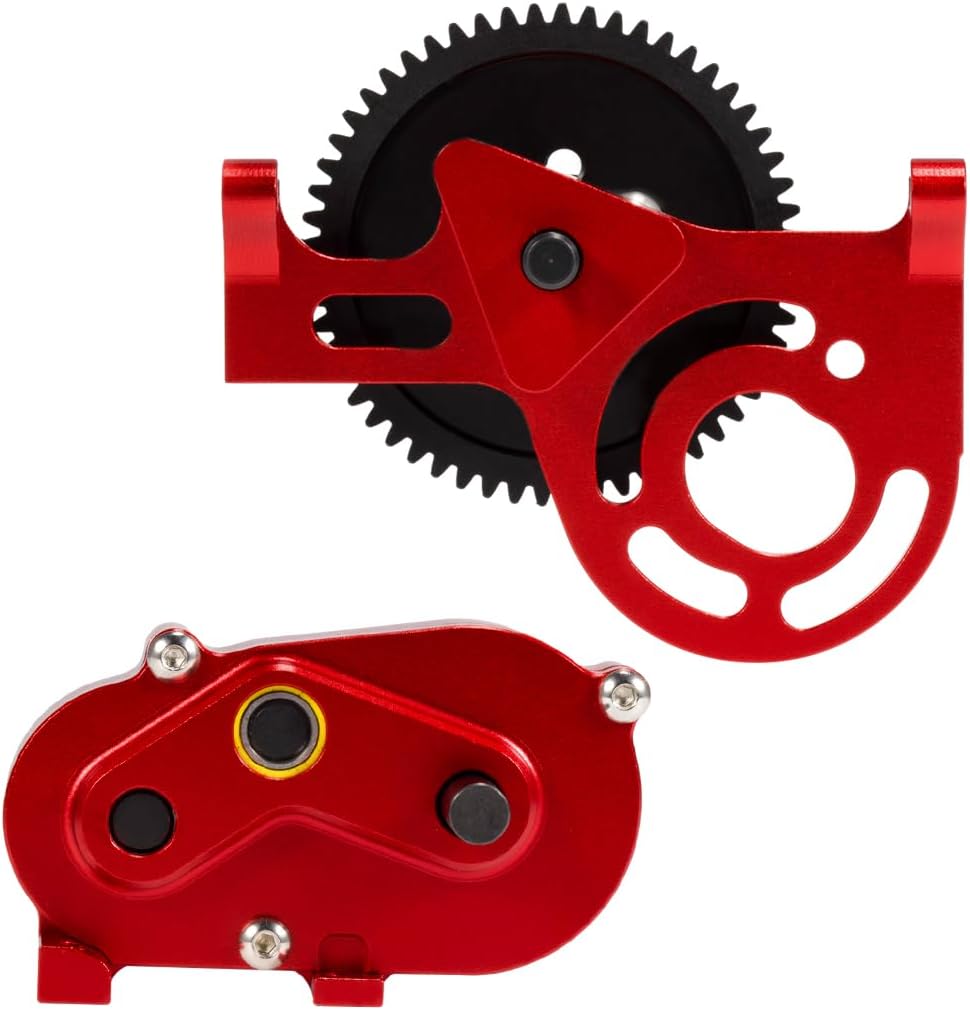

1/10 Transmission 30% OD Transfer Case Forward Motor Mount with Delrin Spur Gear for 1/10 RC Crawler Axial SCX10 II Element Enduro DIY LCG Chassis SCX10 UpgradesMachined aluminum housing, black/red/purple anodizedWith 56T Delrin spur gear and aluminum spur lockerSteel shaft and sealed rubber bearingsHeavy duty machined steel gear set (17T*1, 33T*1, 45T*1)30% overdrive(can be mounted on driver or passenger side of skid by way of flipping the gears and shafts inside the case)Fits RC crawler/cheater rigs/comp builds DIYSpecifications:Item: Transfer Case and Motor Mount SetMaterial: Aluminum Alloy, Steel, DelrinColor: Black, Purple, RedFront Output Ratio=1.94:1 (Excluding Spur Gear)Rear Output Ratio=2.65:1 (Excluding Spur Gear)Transfer Case Housing: 53*29*15mmAX10 Mounting PatternShaft Diameter: 5mmMotor Mount Width: 67mmWeight:Transfer Case: 65g(2.29oz)Motor Mount and Spur Gear Set: 40g(1.41oz)What's Included:1pcs Aluminum Gearbox1pcs Aluminum Transfer Case with POM main gear1pcs frosted aluminum skid plateAll necessary hardware
- 【Suitable for 1/10 RC Crawler】Enhance your 1/10 RC Crawler with this LCG transmission set. It is designed specifically for 1/10 RC Crawler Sherpa Chassis Comp Builds Cheater Rigs DIY
- 【High-intensity RC Crawler Transmission】This 1/10 Transmission is crafted from high-quality aluminum alloy, steel, and Delrin. The steel shafts and sealed rubber bearings offer enhanced strength and durability
- 【30% overdrive Transmission】The 1.94:1 front transmission output and 2.65:1 rear transmission output. The 1/10 LCG transmission will deliver about a 30% overspeed effect for a 1/10 RC crawler
- 【RC Crawler Transmission Specifications】The front output ratio is 1.94:1 (excluding the spur gear), and the rear output ratio is 2.65:1 (excluding the spur gear). The shaft diameter measures 5mm, while the motor mount width is 67mm. The transfer case weighs 65g (2.29oz), and the combined weight of the motor mount and spur gear set is 40g (1.41oz)
- 【Inbox】The package includes 1pcs aluminum gearbox, 1pcs aluminum transfer case with POM main gear, 1pcs frosted aluminum skid plate, and all necessary hardware. If you have any concerns about our 1/10 RC Crawler Transmission, our support team is always available to assist you
| Brand Name | VNUHV |
|---|---|
| Model Name | lcg transmission |
| Part Number | ZZ3624 |
| Manufacturer | VNUHV |
| Material Type | Alloy Steel, Aluminum, Polyester |
| Included Components | Gearbox |
