LiTime 48V Battery Equalizer, Active Balancer for 24V/36V/48V Bank, Supports for LiFePO4, Lead Acid, Gel, FLA, SLA Battery, Perfect for Home, RV, Solar, Trolling Motor, Off Grid
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
Free 30-day returns Details
Product details
| Management number | 212831393 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 212831393 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Up to 48V Battery Bank: The LiTime Balancer boasts 4 distinct connection ports, enabling seamless integration with battery banks as high as 48V. This versatility is ideal for constructing a robust 48V battery bank, achieved by combining 16 units of 12V batteries in a configuration of first 4 in parallel and then 4 in series. Furthermore, it's compatible with 24V, 36V, and 48V battery banks, making it a perfect choice for diverse applications, such as RVs,trolling motors, and off-grid systems
- Active Protection Functions: The LiTime battery balancer are equipped with reverse polarity protection and High Temperature Protection. Among these advanced protective features, we've incorporated a robust reverse polarity protection mechanism, offering you peace of mind against accidental wiring errors. Furthermore, our High Temperature Protection technology is designed to safeguard the battery balancer against overheating, a common issue that can lead to performance degradation and safety risk

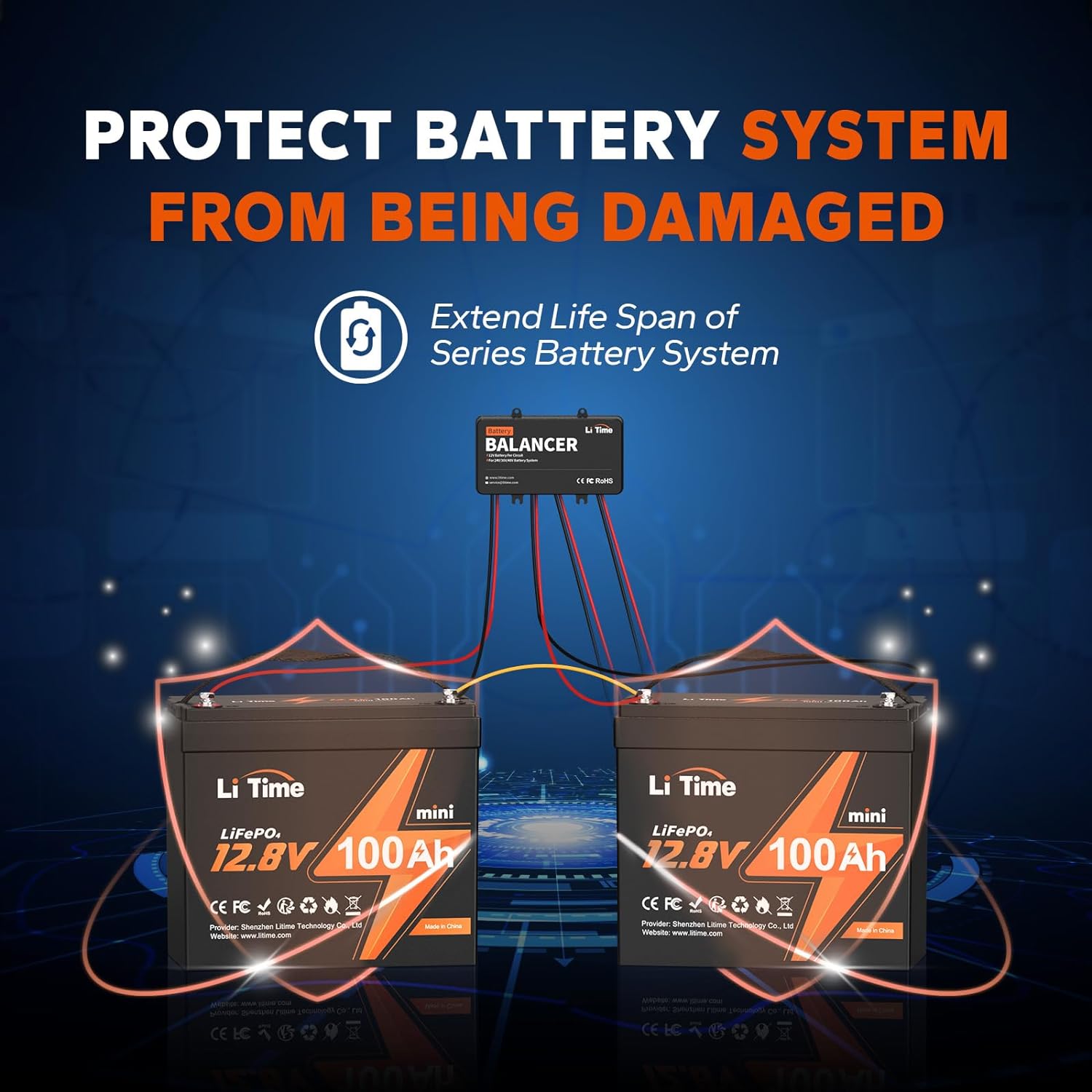

- Prolong Battery’s Life Span and Cycle Times: With this comprehensive active balancing functions, LiTime battery balancer not only optimizes battery performance but also extends their lifespan. You can harness the full potential of batteries, achieving longer cycle times and overall improved performance. Whether you're using it for your recreational vehicle, energy storage system, or any other application, LiTime battery balancer is your trusted companion for optimizing your battery's life.
- Suitable for Multiple Battery Type: The LiTime 48V battery balancer is suitable for multiple types of batteries on the market, including LiFePO4 battery, lithium ion battery, lead acid battery, GEL,SLA (Sealed Lead Acid),FLA(Flooded Lead Acid) battery and all the other batteries that have a rated voltage that are within 3-20V, our battery balancer has you covered. our state-of-the-art battery balancer is compatible with an extensive range of battery types available in the market.
- Auto Balance Mode and Standby Mode: The LiTime battery equalizer will automatically starts working when there is voltage difference between the connected batteries. And works until the voltage difference under 10mV. The maximum working current is 10A, which works for all 12V batteries at all capacity. If the battery bank have voltage difference less than 10mV, the equalizer will automatically turn into standby mode and only draw less than 5mA from the battery bank.
| Brand | Litime |
|---|---|
| Color | Black |
| Amperage | 10 Amps |
| Item Weight | 0.46 Kilograms |
| Manufacturer | Litime |
| Model Number | Litime-BE-001 |
| Input Voltage | 20 Volts (DC) |
| Current Rating | 10 Amps |
| Output Voltage | 12 Volts (DC) |
| Mfr Part Number | Litime-BE-001 |
| Number of Ports | 4 |
| Specification Met | CE, FCC, RoHS |
| Warranty Description | 1 Year Warranty |

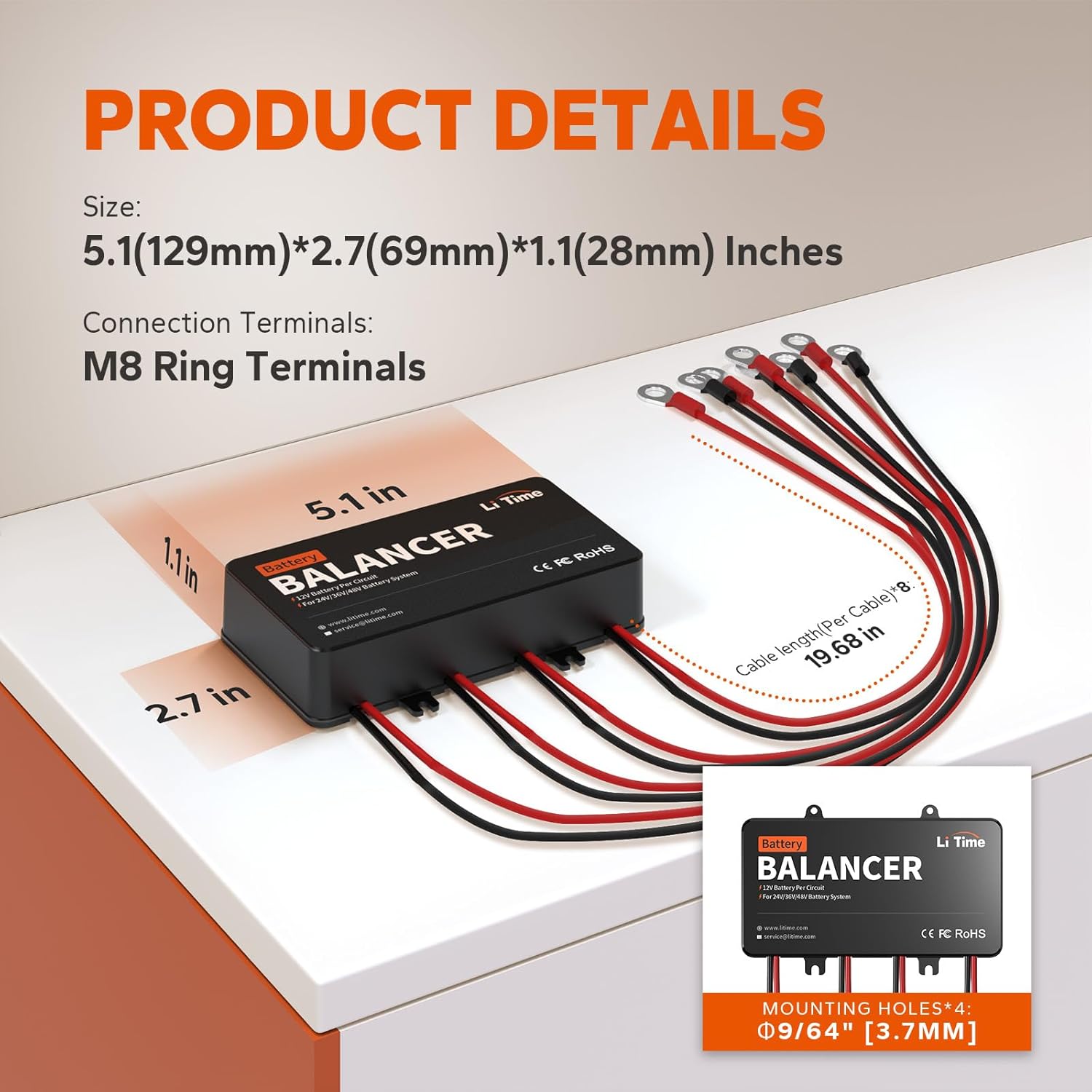

| Item Dimensions D x W x H | 5.1"D x 2.7"W x 1.1"H |
| Connector Type Used on Cable | M8 |
