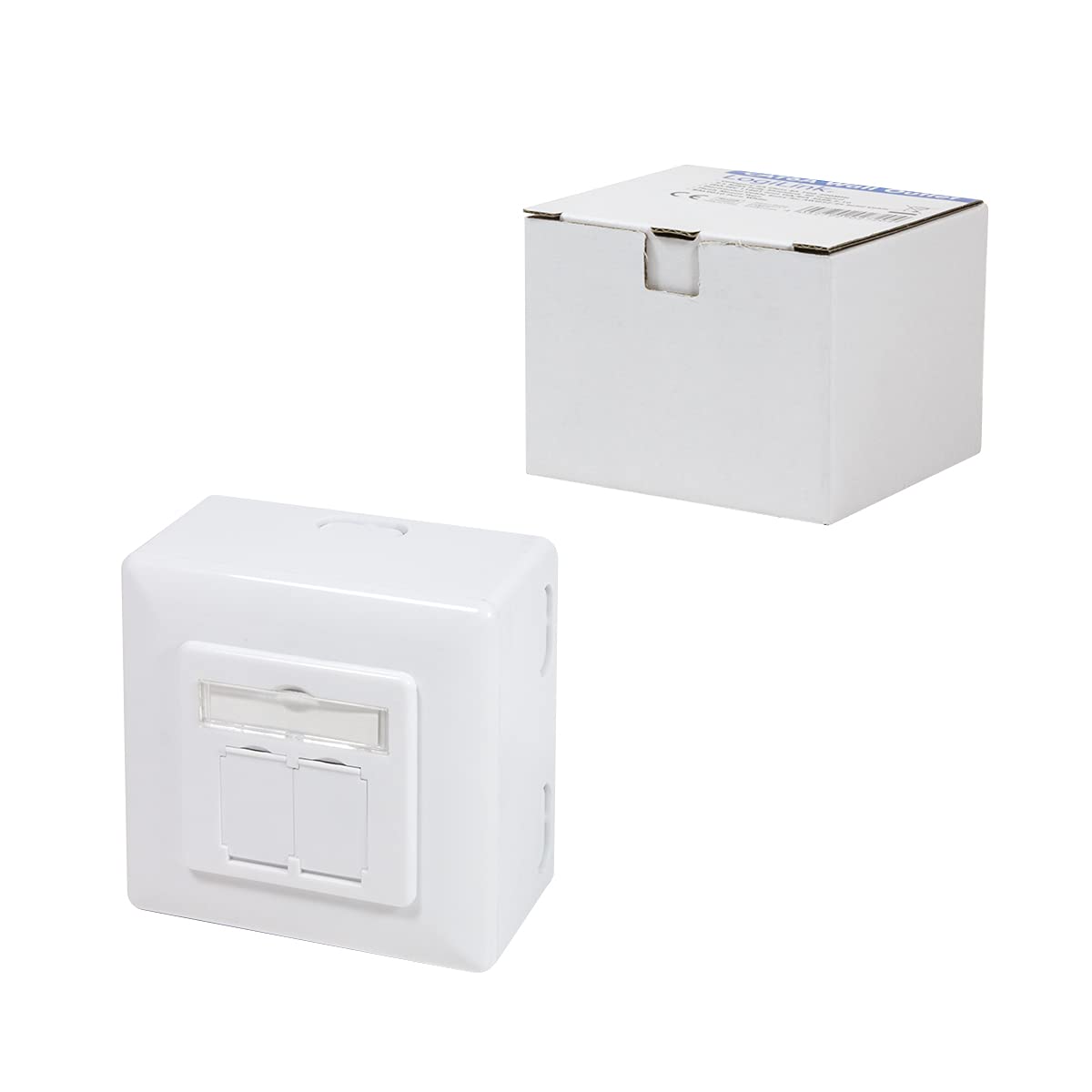

Logilink Professional NP0126 CAT.6A Universal Junction Box (Flush-Mounted), 2 x RJ45 STP (Fully Shielded) with 45° Outlet
Product details
| Management number | 218124616 | Release Date | 2026/05/03 | List Price | $11.19 | Model Number | 218124616 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Shielded RJ45 junction box Cat.6A with angled outlet and 2 RJ45 ports. Specified up to 500 MHz, this socket is suitable for all data transfers up to 10 Gigabit Ethernet including PoE and PoE+. The sturdy die-cast zinc housing with combined shield contact and strain relief is suitable for flush-mounted, surface-mounted or cable duct mounting, the surface-mounted frame is included. This universal socket is therefore suitable for all Cat.5, Cat.6 and Cat.6A cables.
- RJ45 Junction Box Category CAT.6A Class EA 10G 500 MHz
- Horizontal cable feed AWG 22-24 - ISO/IEC 11801 and ANSI/TIA/EIA 568C.2
- 2 shielded R45 sockets 45° angled - housing fully shielded
- Flush-mounted and surface-mounted version (surface-mounted housing included)
- Colour: RAL9003 signal white
| Color | White |
|---|---|
| Model | NP0126 |
| Frequency | 500 MHz |
| Brand Name | Logilink |
| Cable Type | Ethernet |
| Item Shape | Round |
| Model Name | NP0126 |
| Unit Count | 1.0 Count |
| Part Number | NP0126 |
| Manufacturer | 2direct GmbH |
| Connector Type | RJ45 |
| Maximum Current | 6 Amps |
| Maximum Voltage | 10 Volts |
| Number of Items | 1 |
| Connector Gender | Male-to-Male |
| Specification Met | ANSI, EIA, IEC, ISO, TIA |
| Data Transfer Rate | 10 Gigabits Per Second |
| Included Components | 1 x flush-mounted box |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Customer Package Type | protective packaging |
| Compatible Phone Models | Cat,Cat.6a |
| Ethernet Cable Category | Cat 6a |
| Recommended Uses For Product | [Netzwerk und Datenübertragung, sowohl für den Innen- als auch Außenbereich, für Fest- oder temporäre Installationen] |
| External Testing Certification | SO/IEC 11801, TIA/EIA 568C.2 |
| Other Special Features of the Product | Hohe Geschwindigkeit |
