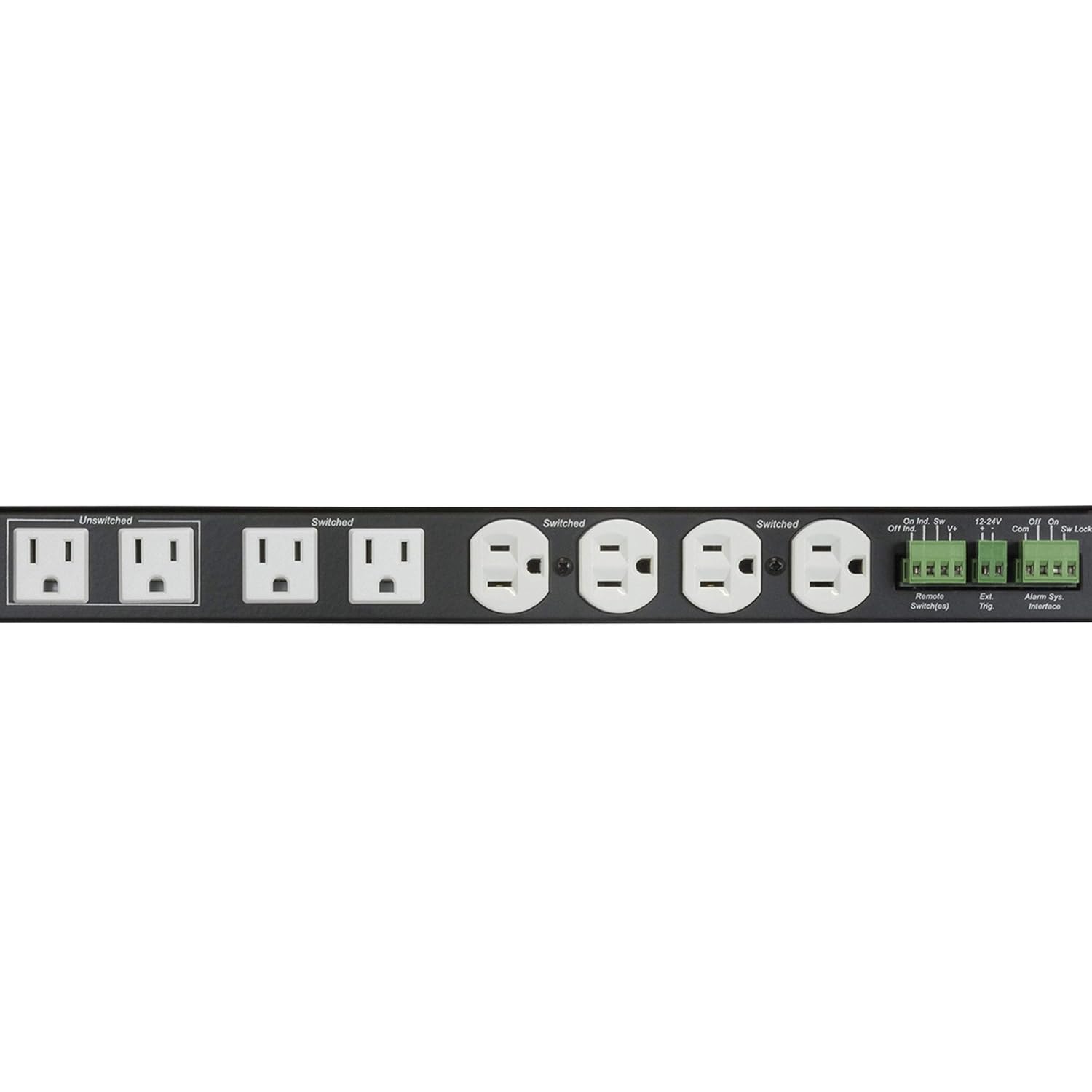

Lowell ACR-RPC-1508-SD PDU with 8 (15A) Outlets, Surge Suppression, Remote Circuitry; 8 Outlets: 2 Rear Un-Switched, 6 Rear Switched; 120VAC, 60Hz, 15A; Surge Protection to 40,000A
Product details
| Management number | 219268086 | Release Date | 2026/05/03 | List Price | $292.45 | Model Number | 219268086 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Lowell ACR-RPC-1508-SD PDU with 8 (15A) Outlets, Surge Suppression, Remote Circuitry; 8 Outlets: 2 Rear Un-Switched, 6 Rear Switched; 120VAC, 60Hz, 15A; Surge Protection to 40,000A This power distribution unit (PDU) is a 19-inch rack-mount panel that features remote control circuitry, surge protection, and 8 NEMA 5-15R receptacles. 6 outlets are to be controlled by a remote switch, external trigger voltage, alarm system, or sequencer (ordered separately). 2 outlets are always on. All outlets are clearly marked to assist the integrator with connections. The panel also includes includes basic surge suppression (maximum surge current 40,000A) Key Features: - Outlets: 8 outlets (2 rear un-switched, 6 rear switched) - Power Rating: 120VAC, 60Hz, 15A - Termination: 9 ft. attached cord with NEMA 5-15P plug - Surge protection to 40,000A - Remote power control circuitry (RPC) allows for on/off control by switch or sequencer - Integral override facilitates use in life safety applications where fire code mandates an alarm interface - Steel Chassis: 19 in. x 9.00 in. x 1.75 in. (1U) - Activation: Rear barrier strip termination blocks for momentary (normally open) remote switches Specifications: - Power Rating: 15A - Rear Outlets: 8 (15A) - Surge suppression: yes - Power Input: 9 ft cord - Switch Type: ext - Circuit Breaker Protection: 15A with reset switch - Outlets Controlled by switch: 6 - Input from Remote Switch: yes - Input from External Trigger: yes - Input from Alarm System: yes - Country of Origin: USA - Certification: ETL Listed in US/Canada (UL60065) - Chassis: 19 W x 9 D x 1.75 H (1U) - Weght: 9 lbs - Shipping Weight:
- Outlets: 8 outlets (2 rear un-switched, 6 rear switched)
- Power Rating: 120VAC, 60Hz, 15A
- Termination: 9 ft. attached cord with NEMA 5-15P plug
- Surge protection to 40,000A
- Remote power control circuitry (RPC) allows for on/off control by switch or sequencer
- Integral override facilitates use in life safety applications where fire code mandates an alarm interface
| UPC | 811859031585 |
|---|---|
| Wattage | 1800 watts |
| Terminal | Plug in |
| Brand Name | Lowell |
| Unit Count | 1.0 Count |
| Item Weight | 9 Pounds |
| Part Number | ACR-RPC-1508-SD |
| Circuit Type | multi-way |
| Contact Type | Normally Open, Normally Closed |
| Control Type | remote |
| Manufacturer | Lowell |
| Material Type | Alloy Steel |
| Mounting Type | Plug In Mount |
| Connector Type | Plug In |
| Control Method | Remote |
| Current Rating | 15 Amps |
| Operation Mode | ON-OFF |
| Contact Material | Alloy Steel |
| Operating Voltage | 120 Volts |
| Specification Met | Nema |
| Compatible Devices | Devices requiring 120VAC, 60Hz, 15A power supply with NEMA 5-15P plugs, and external control devices (switch or sequencer) |
| Number of Positions | 8 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
