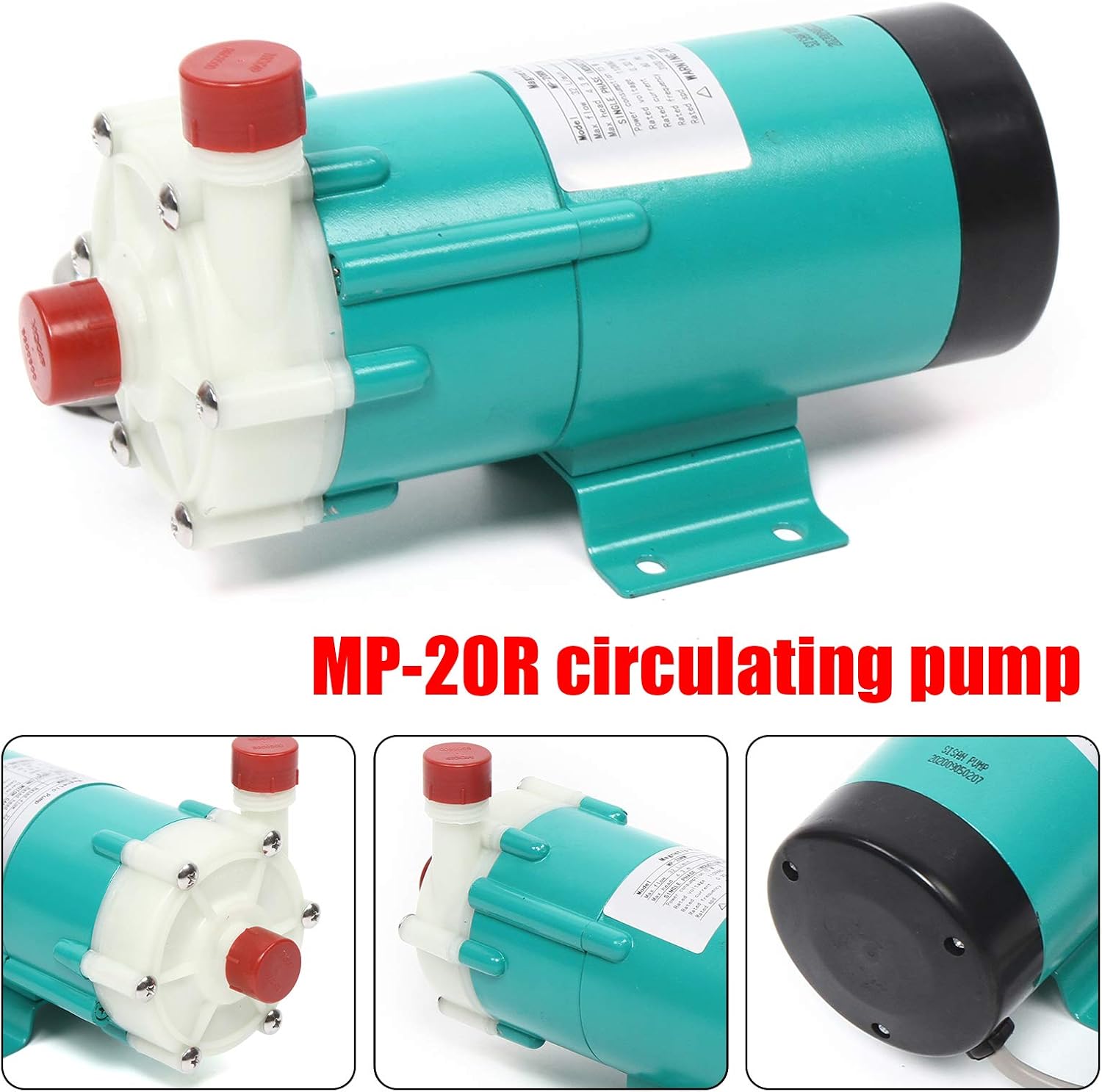

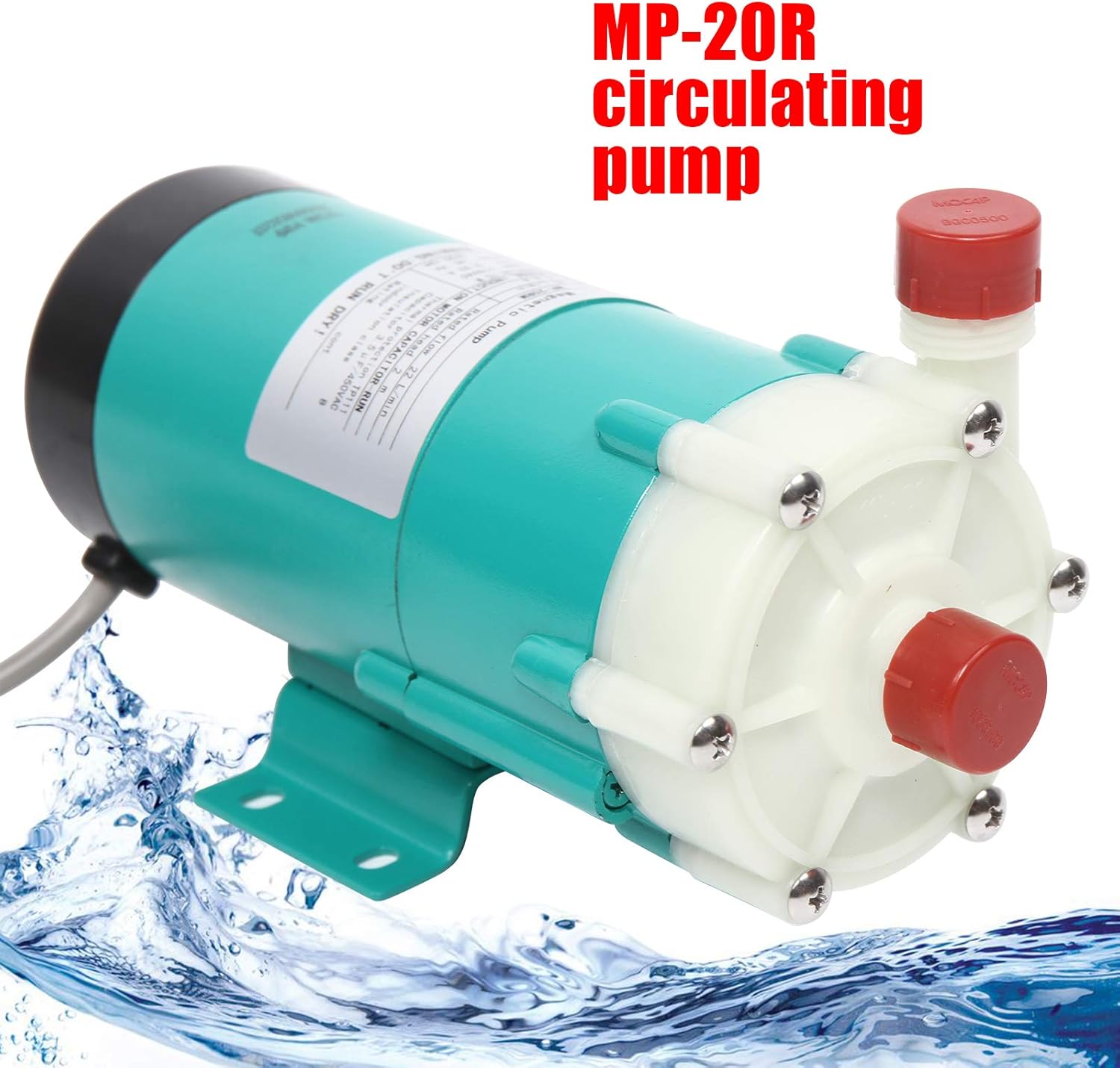

Magnetic Pump, Mp-20R Chemical Pump, Micro Plastic Head Circulation 110V for Industry,Pharmaceutical,Electroplating

ApplicationThis circulation pump can be used in the chemical industry, semiconductor luminescent chemicals,pharmaceuticals and other pharmaceuticals, electroplating industry, photographic industry, electrical appliances industry, metal industry, mining industry, food industry, medical equipment, water treatment, as well as experimental plants, ice machines, beverage machines, household boilers, heat exchangers, solar energy, as well as fountains, ponds, and ornamental aquariums of recycling.SpecificationModel: MP-20RMColor: GreenStyle: ModernMaterial: Engineering PlasticDriving Mode: ElectromagneticPump Shaft Position: HorizontalImpeller Classification: Single SuctionMotor Type: Asynchronous AC MotorPower Source: WiredRated Voltage: 110VRated Power: 15WRated Current: 150MANormal Conveyed Medium's Temperature: 0~80℃/32~176℉ Maximum Flow: 27L/7.13Gal/Min Rated Flow: 17L/4.49Gal/Min Maximum Lift: 3.1m/10.17ftRated Head: 2m/6.56ftRated Speed: 2600rpmTube Interface: G1/2 Capacitance: 2μF/ 400V AcThermal Protection Type: Tp111Insulation Class: BNoise: About 45dBPower Cable Length: 1.6m/5.25ftProduct Size: 20.5x8.9x11.6cm/8x3.5x4.6inPackage Size: 24x14x14cm/9.45x5.51x5.51inGross Weight: 2.16kg/4.76lbsNet Weight: 2.05kg/4.52lbsPackage Included1xCirculating PumpNotes1.Please the magnetic pump will not self-priming, so it is strictly forbidden to no-load. 2.Under normal temperature and clear water conditions, the head is 0 at the maximum flow rate; The flow rate is 0 at the highest head. 3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.

• High Efficiency: The rotational torque of the motor is driven by the attraction of the active and passive magnets, and this circulation pump has a high head of 6.56ft, a maximum lift of 10.17ft, and a maximum flow of 7.13Gal/min, which can complete more effective water-circulating work in a short time.
• Good Performance: The coupling shaft and impeller are respectively equipped with magnetic materials to attract and couple with each other. the circulation pump selected a specially designed special formula ceramic as bearing, which has strong abrasion. Its advanced performance makes it a reasonable and ideal liquid transfer pump on industrial equipment.
• Good Sealing Structure: The circulation pump is a completely sealed structural pump, which completely avoids the corrosion defects caused by liquid leakage caused by the traditional mechanical seal pump.
• Low Noise: The circulation pump uses a high-class asynchronous motor that generates only about 45 dB of noise during operation, equivalent to the volume of a regular indoor conversation, creating a quiet working environment for you.
• Compact and Lightweight: Compact in size(8x3.5x4.6 inches) and light in weight(4.52 lbs), it is easy to transport and install, especially suitable for applications with limited space.
