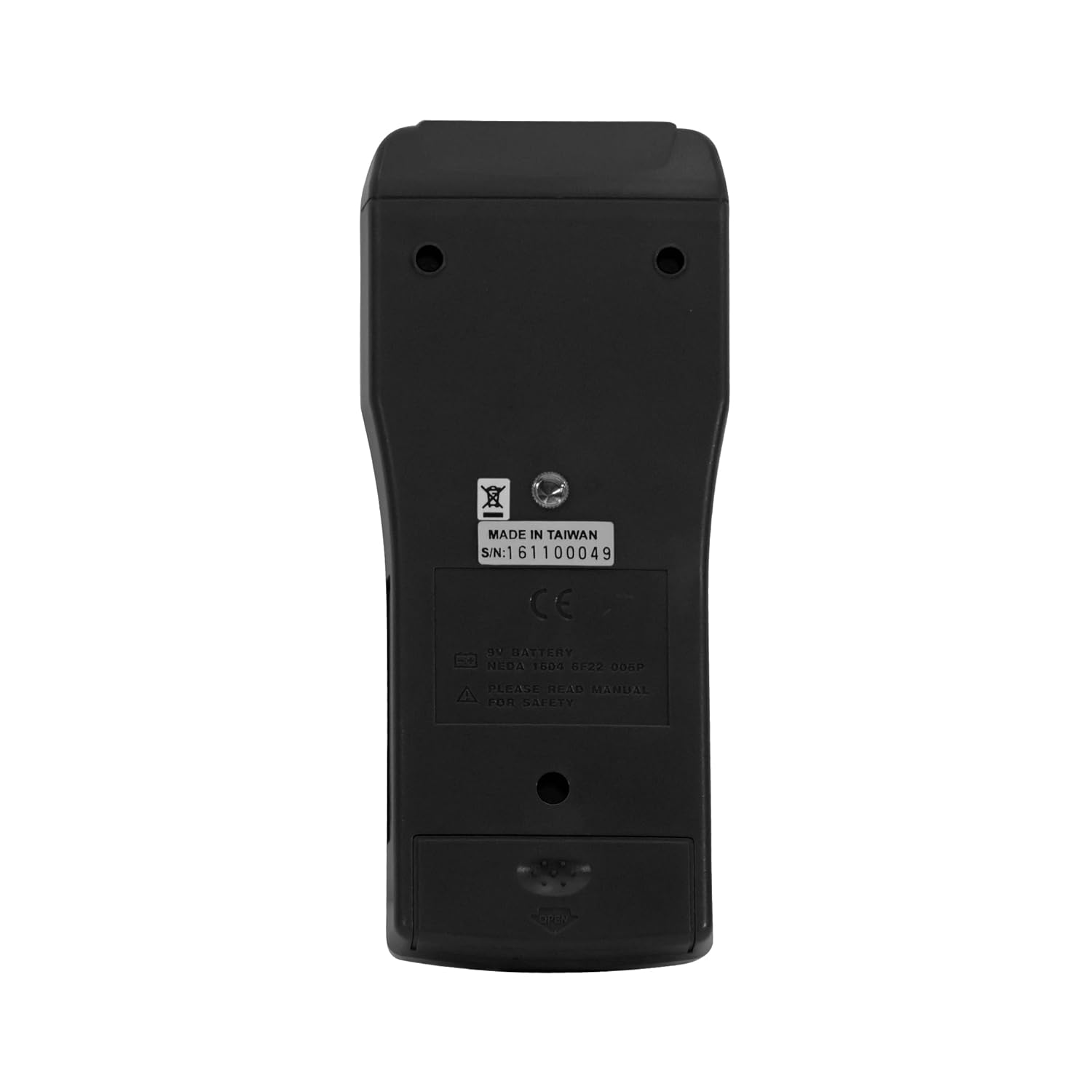

MG-2000TD EMI Magnetic Field Gauss Meter with Datalogger Triple Axis Pro EMF Detector: Measuring Electromagnetic Fields of Extremely Low Frequency (ELF) of 30 to 2000Hz

Description & Features The MG-2000TD Meter is designed to measure electromagnetic fields of extremely low frequency (ELF) in the range of 30 - 2000Hz. - Uses 3 internal orthogonal sensors to test a wide range of ELF magnetic fields, independent of measurement angle - The tester is designed to provide user a quick, reliable and easy way to measure magnetic field radiation levels around power lines, home appliances and industrial devices - The tester is a cost-effective hand-held instrument that was designed and calibrated to measure magnetic field radiation at different bandwidths from 30Hz to 2000Hz - Display micro Tesla (μT) or milli Gauss (mG) units - Data hold (HOLD), maximum hold (MAX) and minimum hold (MIN) functions - Auto range or Manual range select mode - Data logging capacity with memory size: 500 data sets - Time and Calendar function - Low battery indication - Over load display ("OL") - Auto power off function. For troubleshooting steps, please refer the manufacturer’s website. Specifications - Display: 4 digits Triple LCD Display, maximum reading 9999 - Range: 20/200/2000 mG, 2/20/200 μT - Resolution: 0.01/0.1/1 mG or 0.001/0.01/0.1 μT - Frequency response: 30 Hz ~ 2000Hz - Sensor: Triple Axis (X, Y, Z) - Accuracy: 20 mG ¡Ó(3.0% + 30 digits) at 50Hz/60Hz or 3.0μT ¡Ó(3.0% + 30 digits) at 50Hz/60Hz - Overload: LCD display "OL" - Sample rate: 2.5 times per second - Battery: 1 x 9V Battery - Battery Life: approx. 100 hours - Operating Temperature: 5 ~ 40 XC (41 ~ 104 XF) - Operating Humidity: <80% R.H. - Storage Temperature: -10 ~ 60 XC (14 ~ 140 XF) - Storage Humidity: <70% R.H. - Dimension: approx. 173 (L) x 80 (W) x 32 (D) mm (6.81 x 3.15 x 1.26 inch) - Weight: approx. 230 g (8.11 oz)

• Uses 3 internal orthogonal sensors to test a wide range of ELF magnetic fields, independent of measurement angle
• The tester is designed to provide user a quick, reliable and easy way to measure magnetic field radiation levels around power lines, home appliances and industrial devices
• The tester is a cost-effective hand-held instrument that was designed and calibrated to measure magnetic field radiation at different bandwidths from 30Hz to 2000Hz
• Display Micro Tesla (μT) or milli Gauss (mG) units
• Data hold (HOLD), maximum hold (MAX) and minimum hold (MIN) functions
