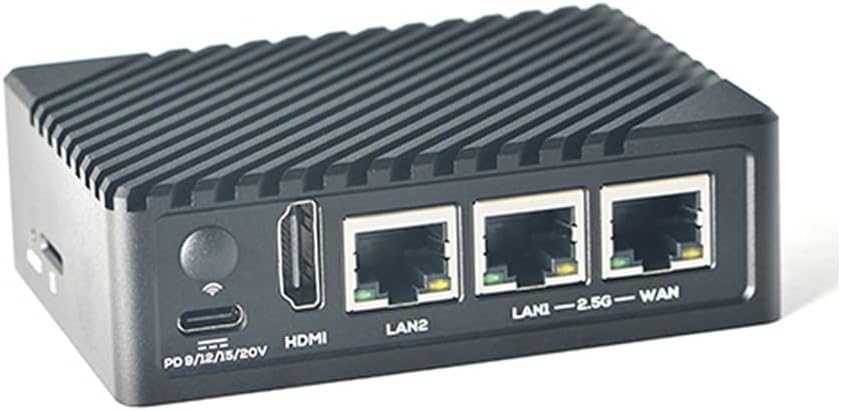

Nanopi R6S Mini Router OpenWRT, LPDDR4X 4GB RAM 64GB eMMC, RK3588S SoC with 6Tops NPU, 8K/4K Video Decoders, 2.5G&1G Gbps Ethernet for IoT NAS Smart Home Gateway, Support Linux Ubuntu Android
Product details
| Management number | 216110807 | Release Date | 2026/04/19 | List Price | $72.00 | Model Number | 216110807 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SoC: Rockchip RK3588SCPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2VPU: 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoderNPU: 6TOPs, supports INT4/INT8/INT16/FP16RAM: 64-bit 4GB/8GB LPDDR4X at 2133MHzFlash: 64GB eMMC, at HS400 modeEthernet: one Native Gigabit Ethernet, and two PCIe 2.5G EthernetUSB: one USB 3.0 Type-A and one USB 2.0 Type-AHDMI:compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operationsupport up to 7680x4320 60HzSupport RGB/YUV(up to 10bit) formatmicroSD: support up to SDR104 modeGPIO:12-pin 0.5mm FPC connectorwith up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 2x SPDIF, up to 8x GPIOsDebug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bpsLEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)others:MASK button for eMMC updateone user buttonPower supply: USB-C, support PD, 5V/9V/12V/20V inputPCB: 8 Layer, 62x90x1.6mmAmbient Operatin
- Open Source & Programmable: NanoPi R6S Mini Computer Wifi Router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home office gateways, 8K/4K video decoders and more.
- Rockchip RK3588S SoC: NanoPi R6S Mini Router Integrated Rockchip RK3588S SoC (4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz), Mali-G610 MP4 GPU compatible with OpenGLES 1.1, 2.0, and 3.2. VPU: 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder encoder, with 6TOPs NPU, supports INT4/INT8/INT16/FP16.
- Larger Storage & Scalable: NanoPi R6S Mini Router with 64bits 4GB/8GB LPDDR4X RAM at 2133MHz, 64GB Flash eMMC at HS400 mode and support MicroSD slot/UHS-I up to SDR104 mode; Onboard USB3.0 and USB 2.0. GPIO: 12-pin 0.5mm FPC connector; Debug UART x1, 3pin 2.54mm header. One 1G Native Gigabit Ethernet and dual PCIe 2.5G Gigabit Ethernet ports (1 WAN and 2 LAN), gets around 941Mbits/second.
- Multiple OS Compatible: NanoPi R6S Portable Travel Mini Router support Android TV 12/Tablet, Debian 10/11 Desktop, FriendlyWrt 24.10, FriendlyWrt 23.05, Ubuntu 22.04 LTS Desktop, Ubuntu 24.04 Desktop, FriendlyCore Focal Lite(Base on Ubuntu 20.04), OpenMediaVault, Proxmox VE system. Kernel version: Linux-5.10-LTS/Linux-6.1-LTS/U-boot-2017.09 OS.
- Embedded Development: Nanopi R6S wifi router is very suitable for enterprise customers to customize and develop mini machine vision systems with multiple network ports, and it is also suitable for embedded enthusiasts to discover, explore and create their own unique gameplay. It is a cannot-miss platform with infinite possibilities for light NAS, video playing, game center, geeks, fans and developers.
- 8K Video Decoders & Encoders: NanoPi R6S Computer Mini Router support 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoder. HDMI compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation. support up to 7680x4320 60Hz and RGB/YUV(up to 10bit) format.
- USER MANUAL: "wiki.friendlyelec.com/wiki/index.php/NanoPi_R6S". All after-sales questions please click "WaPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
| Brand | WayPonDEV |
|---|---|
| Color | 4+64GB |
| Voltage | 12 Volts (DC) |
| Model Name | Nanopi R6S Mini Computer Router OpenWRT |
| Manufacturer | WayPonDEV |
| Model Number | Nanopi R6S Mini Router |
| BuiltIn Media | Show as picture |
| Antenna Location | Business, Gaming, Home |
| Operating System | Debian, Ubuntu, FriendlyWrt, Android 14, OpenMediaVault 8.0.6, Proxmox VE, Alpine-Linux Buildroot |
| Compatible Devices | Gaming Console, Personal Computer, Smart Television, Tablet |
| Data Transfer Rate | 941 Megabytes Per Second |
| LAN Port Bandwidth | 10/100/1000 Mbps |
| Frequency Band Class | Dual-Band |
| RAM Memory Installed | 4 GB |
| Warranty Description | WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
| Wireless Compability | 802.11ac, 802.11ad, 802.11ax, 802.11n |
| Connectivity Technology | Ethernet, USB, Wi-Fi |
| Maximum Upstream Data Transfer Rate | 941 Megabits Per Second |
| Other Special Features of the Product | Access Point Mode, Guest Mode, Internet Security, QoS |
