RATTMMOTOR 800W Water Cooled Spindle Kit, 65mm Spindle Motor 0.8KW 110V 400HZ+1.5KW VFD 110V Single to 3 Phase Inverter Variable Frequency Drive+65mm Spindle Mount+ER11 Collet+80W Water Pump for CNC
$229.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$229.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
Free 30-day returns Details
Product details
| Management number | 210271108 | Release Date | 2026/04/02 | List Price | $91.60 | Model Number | 210271108 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Package Include】: ①1 x 0.8KW Water Cooled Spindle Motor ER11 ②1 x 1.5KW VFD 110V③1 x 65mm Spindle Motor Mount ④1 x 80W Water Pump ⑤1 x 5m Pipe ⑥14 x ER11 Collet（1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 3.175mm）

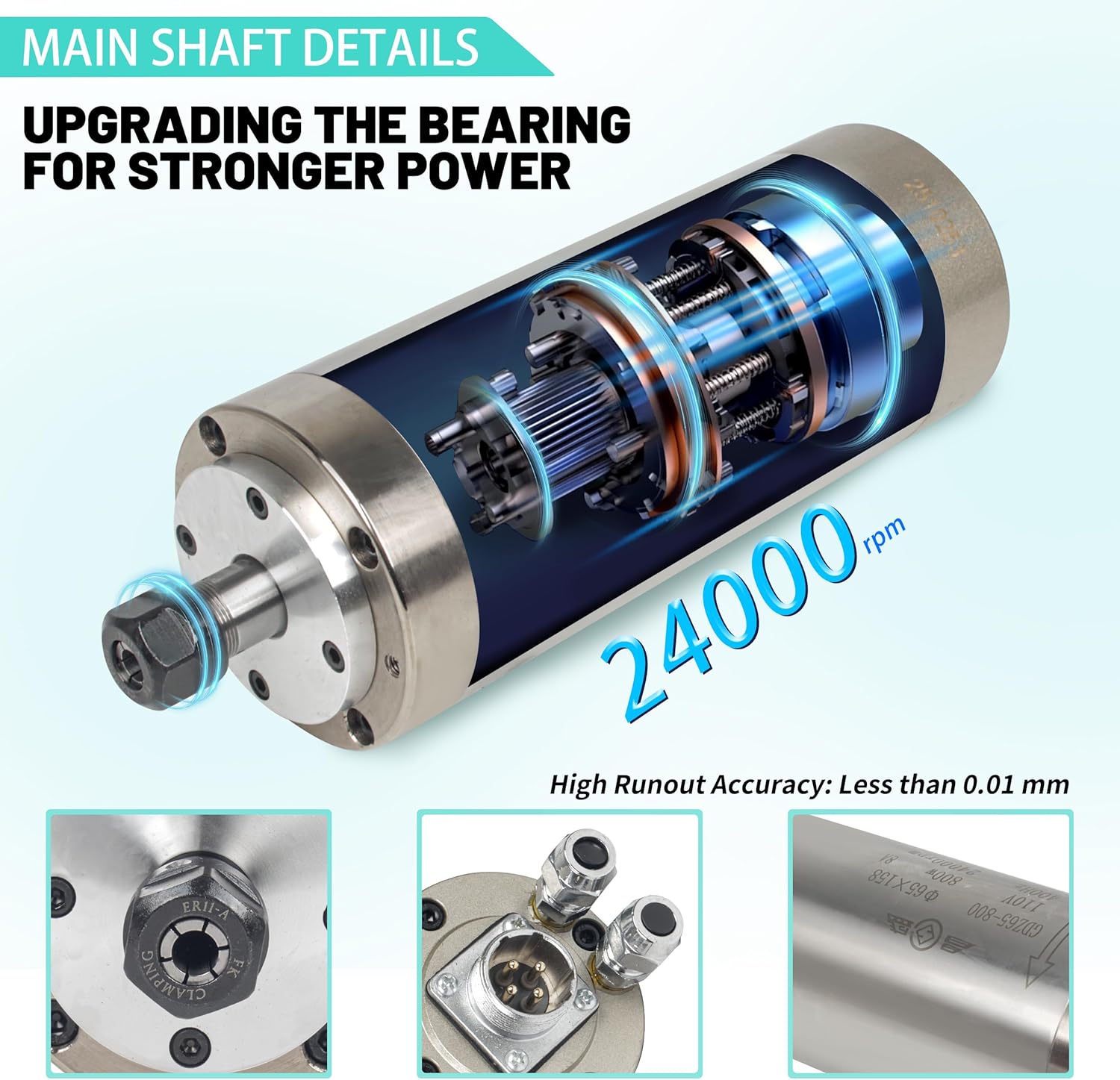

- 【0.8KW Spindle Motor】: ①This is a 110V-0.8KW water-cooled 8A Φ 65x158mm spindle motor come with a ER11 nut and collet, and equipped with a 65mm spindle mount. Frequency is 400HZ, 0.003--0.005 accuracy and runout off is Less than 0.01mm. ②Speed of The Spindle Motor : 0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the main shaft cannot only rotate clockwise or counter clockwise.

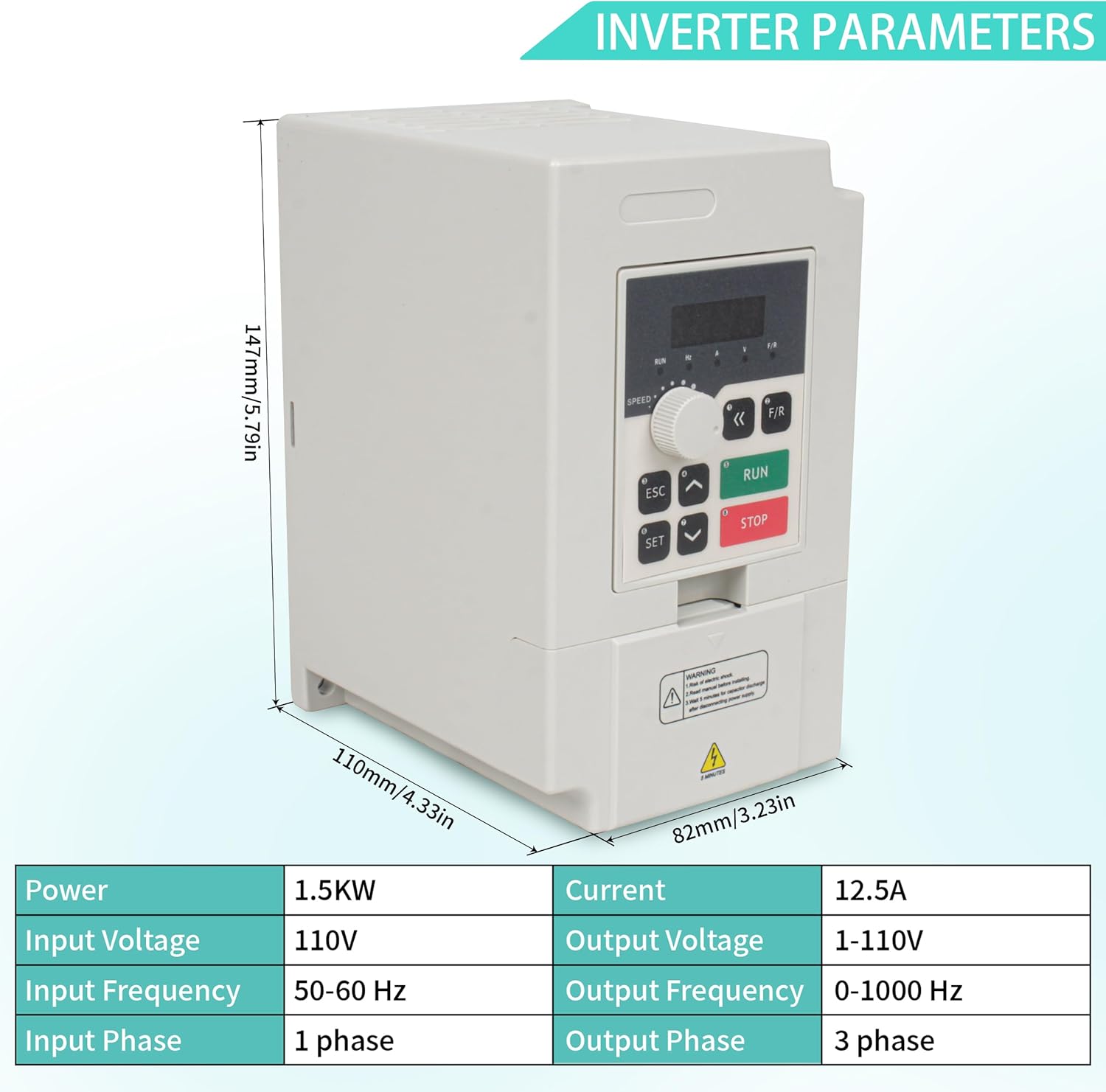

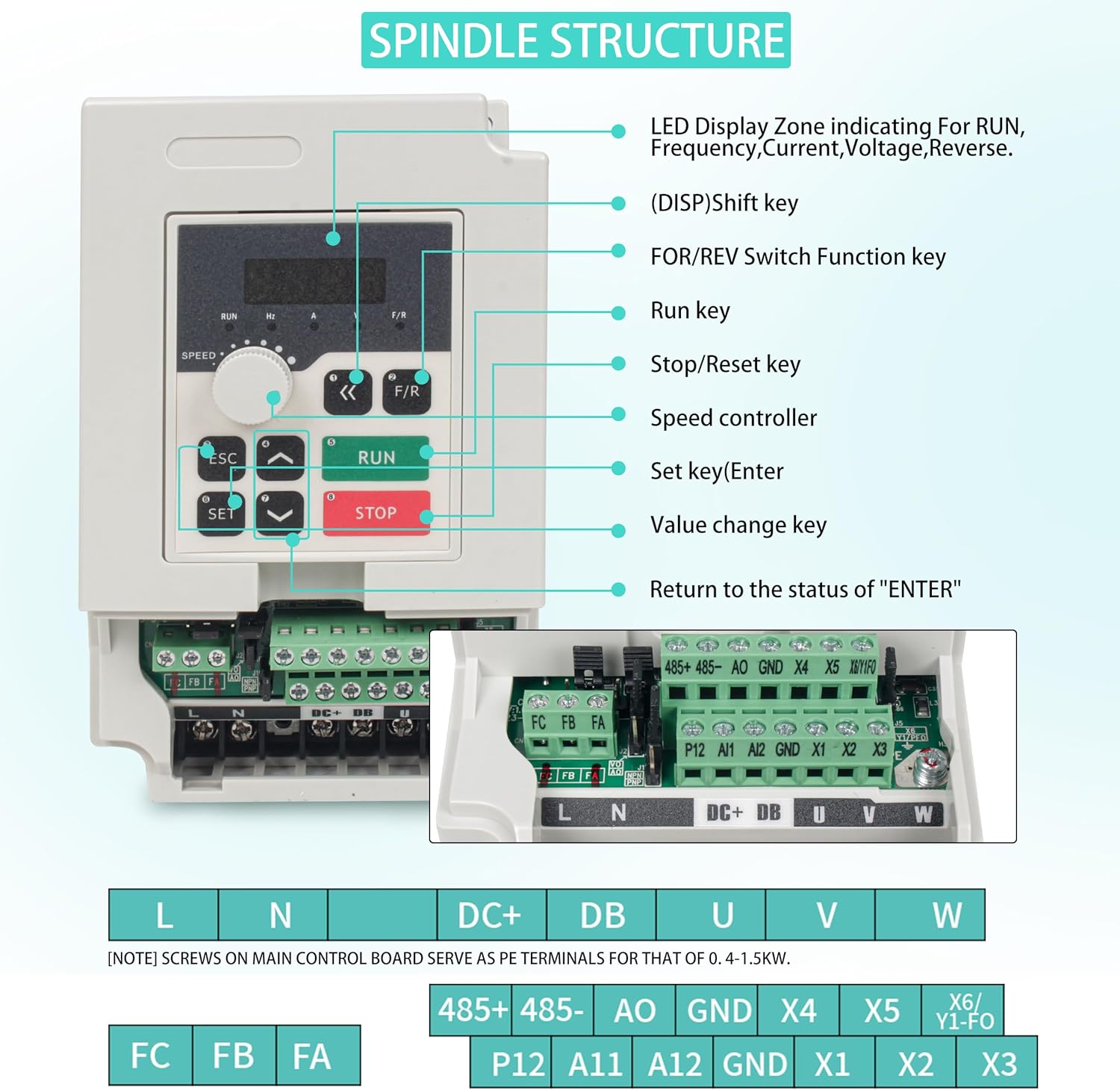

- 【VFD Inverter Parameters】The 1.5KW variable frequency drive inverter has five-digits display and status indicator lamp display frequency, current, revolution, voltage, counter, temperature, foward or reverse running, fault, ect. Input Voltage: 110V(+/-15%) ,Output Voltage 110V, Input Frequency: 50-60 Hz, Output Frequency: 0-1000 Hz, Input Phase: 1 phase, Output Phase: 3 phase.
- 【How to Connect Spindle Motor and VFD Inverter】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected separately with inverter's port U, V, W. Number 4 is the ground wire, no wiring is required.
- 【80W 110V Water Pump】Power: 80W, Flow: 3500L/H, Hmax: 3.5M, Voltage: 110V/50HZ. Also suitable for 0.8KW, 1.5KW, 2.2KW, 3KW and other high speed CNC water cooled spindle motor. Please remind that the submersible pump should be completely immersed in water when it is working to ensure that the submersible pump has a certain degree of cooling.
| Color | Silver |
|---|---|
| Voltage | 110 Volts (AC) |
| Brand Name | RATTMMOTOR |
| Style Name | Pencil |
| Item Weight | 6.45 Kilograms |
| Manufacturer | RTM |
| Model Number | CS800W110Vk |
| Power Source | Corded Electric |
| Minimum Speed | 9000 RPM |
| Item Dimensions | 6.22 x 2.56 inches |
| Manufacturer Part Number | RTM6-0.8KW110V |
| Maximum Rotational Speed | 24000 RPM |
