Red Lion RL-SWJ75 3/4 HP, 13 GPM Dual Voltage (115/230 Volts) Cast Iron Shallow Well Jet Pump, Red, 97080701
Product details
| Management number | 216521177 | Release Date | 2026/04/19 | List Price | $122.40 | Model Number | 216521177 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Red Lion RL-SWJ75 3/4 HP cast iron shallow well jet pump is ideal for the supply of fresh water to rural homes, farms, and cottages that have suction lifts down to 25-feet. 30/50 Pressure Switch included.
- SHALLOW WELL JET PUMP: for wells less than 25-feet deep; includes 30/50 pressure switch; self-priming after initial prime; 3/4 HP pump can draw up to 13 GPH
- DUAL VOLTAGE: 115/230 Volt heavy-duty motor, comes factory-set for 230 Volts but can easily be switched to 115 Volts; voltage must be selected to match incoming power source
- BUILT TO LAST: Heavy-duty cast iron construction for years of service and reliability; impeller and volute made of glass-filled polyester
- SUCTION/DISCHARGE: 1-1/4-inch Female NPT threaded intake; 1-inch Female NPT threaded discharge

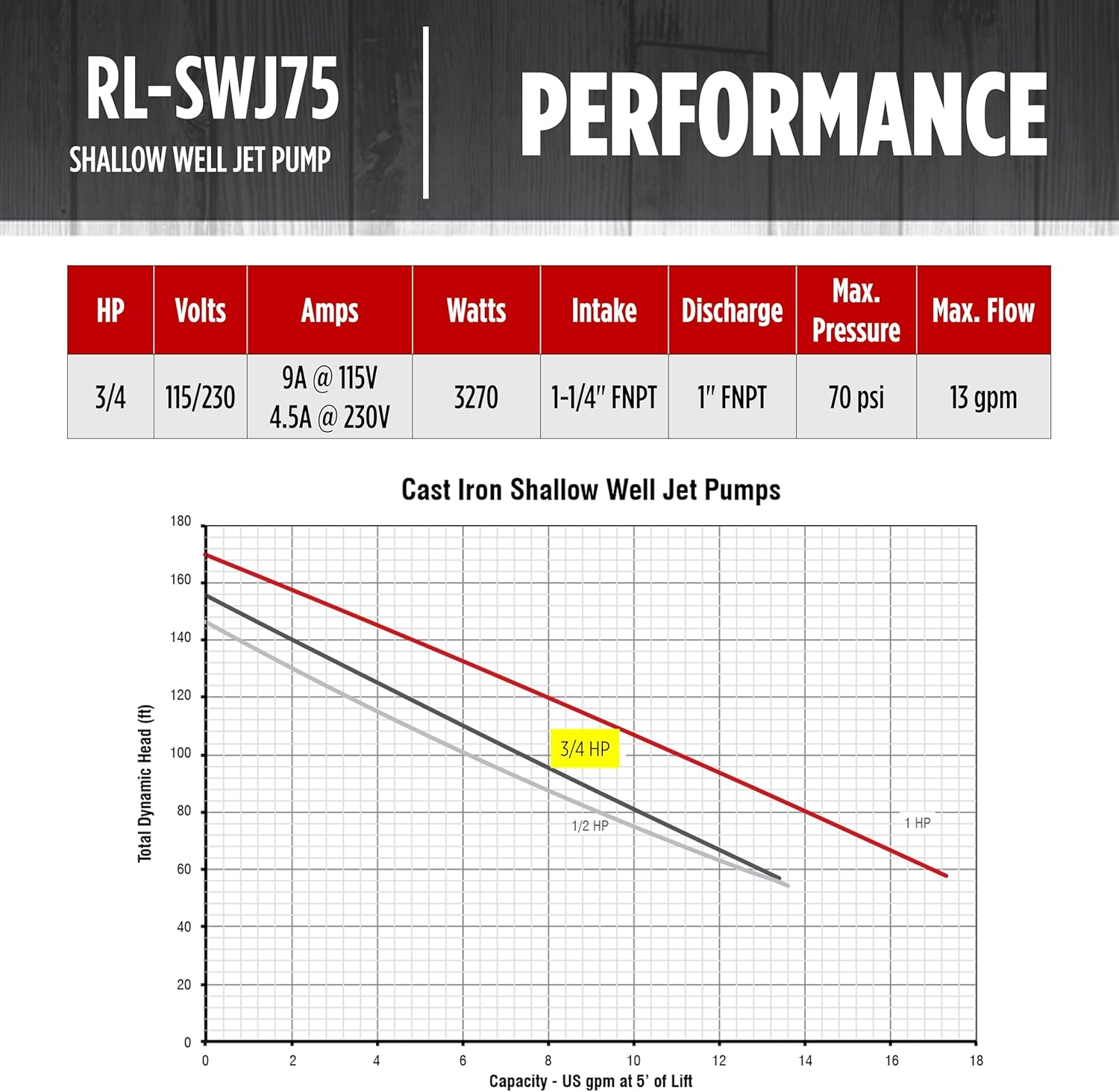

- SPECIFICATIONS: 3/4 HP, 115/230 Volts, 9 Amps at 115 Volts; 4.5 Amps at 230 Volts; Maximum pressure 70 PSI; 13 GPM at 30 PSI
| UPC | 010121146723 |
|---|---|
| Color | Red |
| Voltage | 115 Volts, 230 Volts |
| Flow Rate | 13 Gallons Per Minute |
| Brand Name | Red Lion |
| Unit Count | 1.0 Count |
| Item Weight | 22.5 Pounds |
| Manufacturer | Franklin Electric Canada, Inc. |
| Model Number | RL-SWJ75 |
| Power Source | Corded Electric |
| Material Type | Cast Iron |
| Product Style | 3/4-HP 13-GPM |
| Item Type Name | RL-SWJ75 3/4 HP, 13 GPM Dual Voltage (115/230 Volts) Cast Iron Shallow Well Jet Pump |
| Included Components | 30/50 Pressure Switch, Instruction Manual, Pump |
| Maximum Lifting Height | 25 Feet |

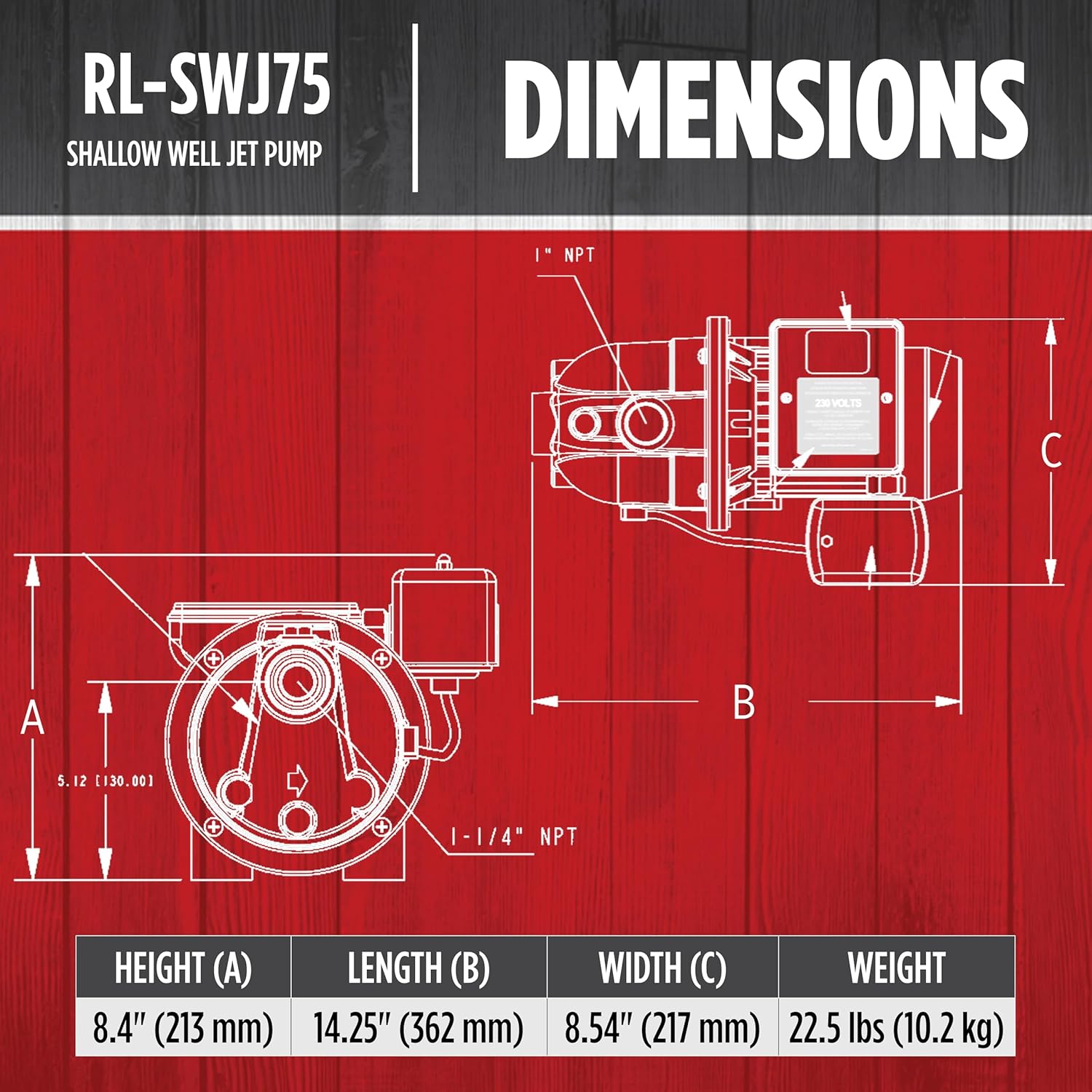

| Item Dimensions L x W x H | 14.25"L x 9"W x 8.5"H |
| Manufacturer Warranty Description | 2 year manufacturer |
| Global Trade Identification Number | 00010121146723 |
