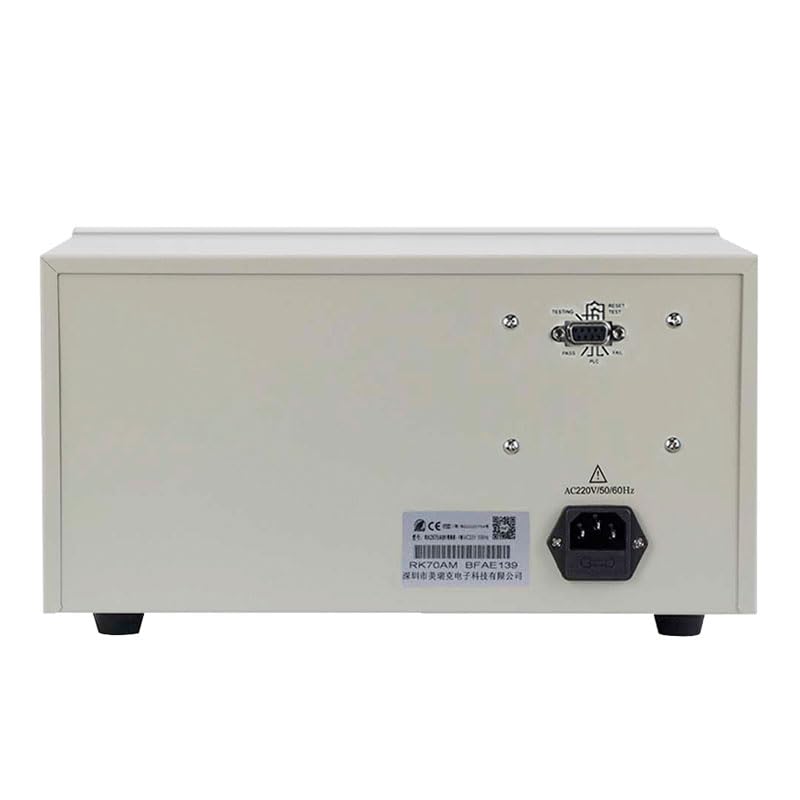

RK2671AM Withstand Voltage Tester Hipot Tester Voltage AC 10kV 20mA DC 10kV 10mA，Accuracy 5%

RK2671 series voltage tester is the instrument to measure the voltage strength, which can intuitively, accurately and quickly test the breakdown voltage, leakage current and other electrical safety performance indicators of various tested objects, and can be used as a high voltage source to test the performance of components and the whole machine.

• The output voltage AC:0~5/10kV;The output voltage DC:0~5/10kV;Test current AC:0~2/20mA;Test current DC:0~2/10mA
• Test accuracy:±(5%+3 characters);Testing time:0.0s~999s 0.0=continuous testing;Transformer capacity:200VA
• PLC interface:Optional;Power requirements:AC:220V+10% 50Hz/60Hz±3Hz:Working environment:Temperature: (0-40)℃ Humidity ≤ 75% RH
• Ac DC 10KV general voltage tester,Alarm current value can be preset continuously.The use of high brightness LED digital tube display test time, voltage, current, real-time display breakdown current value and voltage value
• The output voltage through the regulator to adjust the output, with high reliability, high durability characteristics
