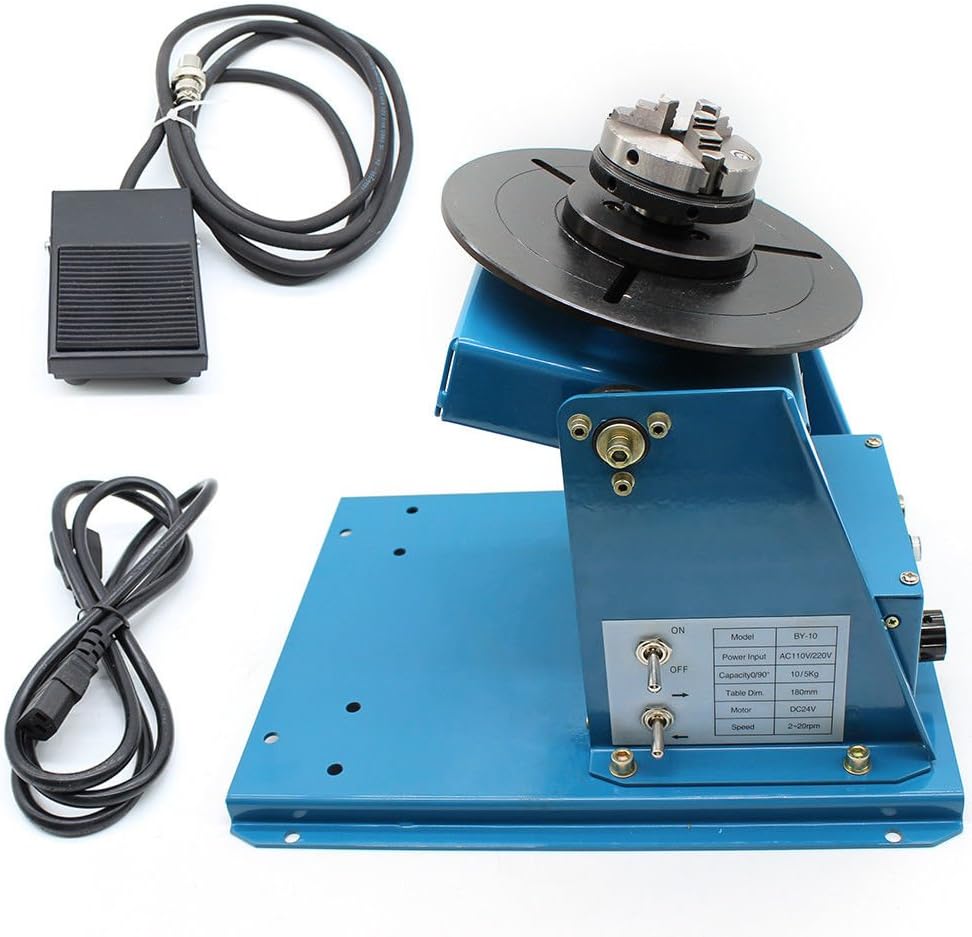

Rotary Welding Positioner Turntable Table Mini 0-90ºWelding Positioner Positioning Turntable 2.5" 3 Jaw Lathe Chuck 180mm Portable Welder Positioner Turntable Machine Equipment - 110V,10KG

Description:By Series Light Positioner Is Mainly Used For Welding Of Annular Weld. The Main Function Of The Machine Is To Tilt, Turn The Workpiece, So That The Weld In The Horizontal, Ship-Shape, Such As The Best Position To Apply Welding. The Device Can Be Fixed On The Working Table Or Specific Tooling For Clamping Workpiece With Manual Welding, Can Also Be Used With Welding Operation Machine To Achieve Automatic Welding, But Also For Cutting, Grinding, Assembly, Testing And Other Processes. Specifications:Input Voltage: 110V 50HzHorizontal Loading Capacity：10KgVertical Loading Capacity：5KgWorking Table Tilting Angle：0-90°Table Diameter: 180MmWorktable Height: 220MmWorktable Speed: 2-10 r/MinRated Welding Current：80ADrive Motor: Dc24V 20WTable Turning Angle: 0-90°Workbench Rollover: ManualRotary Motor: 15WProduct Dimensions: 370 x 270 x 215mmNet Weight: 9kgFeatures:1.Speed Regulation.2.Structure Of Precision, Easy To Operate, Flexible To Use.3.Especially Suitable For Under 10Kg Flange, Steel Pipe And Other Seam Welding.4.High-Quality Dc Motor, The Worktable Running Smoothly, Welding Speed Can Be Stepless Regulation, Large Adjustment Range, High Adjustment Precision;5.Light Weight, Easy To Use, Handling, Easy To Operate;6.Clamp And Worktable Choose Simple Mechanical Connection Way, High Positioning Accuracy;7.Using Foot Switch Control Table Rotation, Easy To Control Rotation;Packages:1x Rotary Welding Positioner Turntable Table1x Foot Pedal1x Mini Chuck1x Power Line

• Specifications: Input Voltage: 110V 50Hz; Horizontal Loading Capacity: 10Kg; Vertical Loading Capacity: 5Kg; Working Table Tilting Angle: 0-90°; Table Diameter: 180Mm; Worktable Height: 220Mm; Worktable Speed: 2-10 r/Min; Rated Welding Current：80A; Drive Motor: Dc24V 20W; Table Turning Angle: 0-90°; Workbench Rollover: Manual; Rotary Motor: 15W.
• Main Function: By series light positioner is mainly used for welding of annular weld. The main function of the machine is to tilt, turn the workpiece, so that the weld in the horizontal, ship-shape, such as the best position to apply welding.
• Wide Application: The device can be fixed on the working table or specific tooling for clamping workpiece with manual welding, can also be used with welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing and other processes.
• Features: Speed Regulation. Structure of precision, easy to operate, flexible to use. Especially suitable for under 10kg flange, steel pipe and other seam welding. High-quality dc motor, the worktable running smoothly, welding speed can be stepless regulation, large adjustment range, high adjustment precision; Light weight, easy to use, handling, easy to operate; Clamp and worktable choose simple mechanical connection way, high positioning accuracy.
• Packages Included: 1 x Rotary Welding Positioner Turntable Table; 1 x Foot Pedal; 1 x Mini Chuck; 1 x Power Line.
