Rsrteng OTDR Fiber Optic Tester 1310/1550nm 26/24dB Test Rang 500m-100Km 4.3" Touch Screen Event Map OPM VFL LS OLS RJ45 Test 8GB TF Card PC-Sides Analysis Software Connector with UPC/FC SC LC ST
$289.92
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$289.92
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
Free 30-day returns Details
Product details
| Management number | 219326575 | Release Date | 2026/05/03 | List Price | $115.97 | Model Number | 219326575 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Multi-functional OTDR Tester】OTDR Fiber Optic Tester are used to measure the length, loss, connection quality, identifying fiber breakpoints and other parameters of optical fiber. 4.3 inch 800x480 IPS TFT-LCD touch screen.Support Auto OTDR, Expert OTDR, Event Map, Power adjustable stable OLS, Optical Loss Test, VFL, LS RJ45 cable length/sequence/tracking. 8GB TF Card, PC-sides Analysis Software. Connector: FC/UPC, and also equipped with extra SC, ST, LC.
- 【Professional OTDR Measuring】OTDR provides wavelength of 1310/1550nm and dynamic range of 26/24dB, the max test distance can up to 100km.Test Unit: km, kft, mi. Connector FC/UPC. For Auto OTDR: no complex settings, one key test. Expert OTDR: Professional measurement, testing after setting parameters such as wavelength, test range and pulse width etc. Curve/list/ map are displayed simultaneously. Please note: Fiber endface inspector does not support testing.

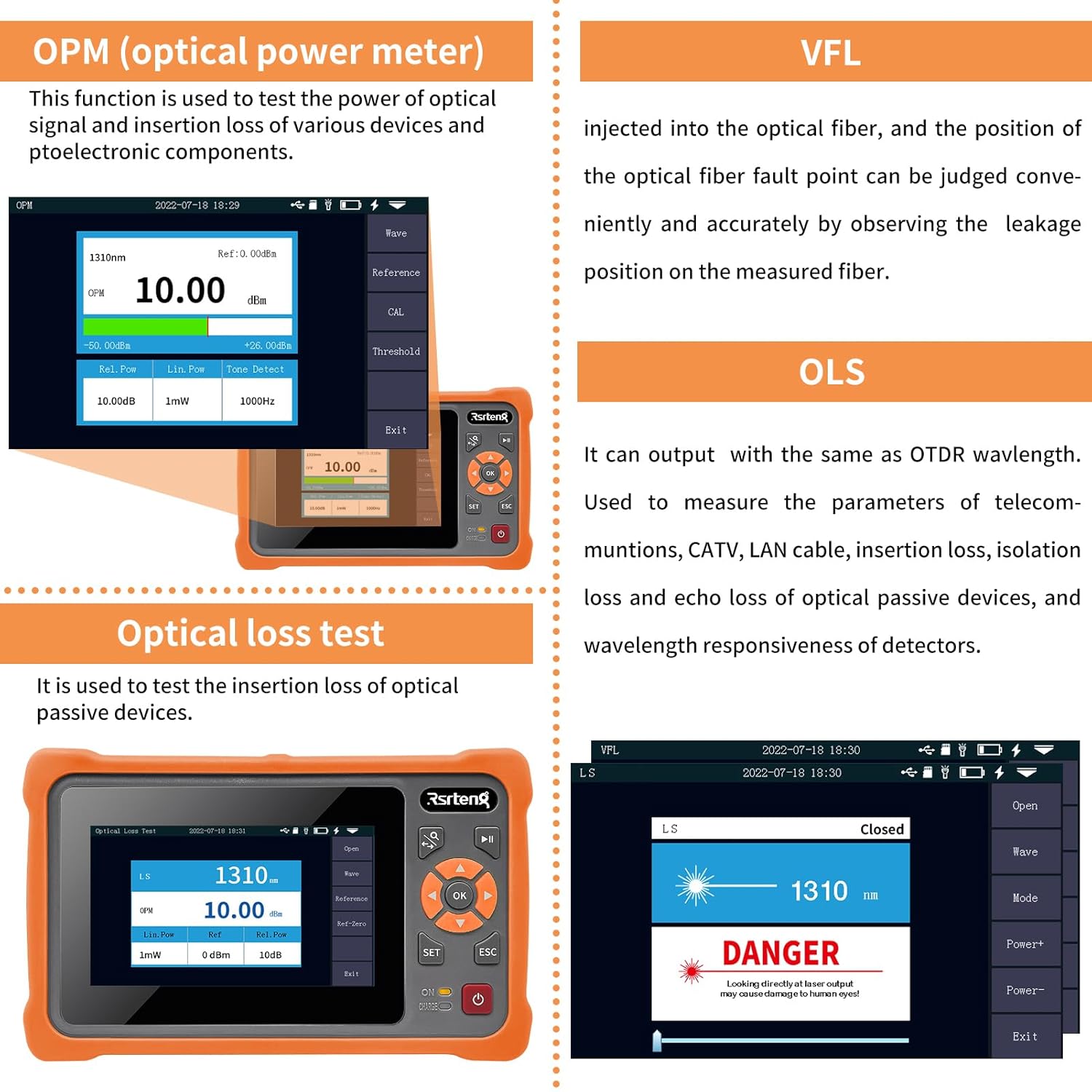

- 【Event Map & OPM VFL LS OLS Tools】Event map can one key automatic test, and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically. Built-in optical power meter,vfl, ls and ols. OPM Supports CW/270/330/1kHz/2kHz frequency identification. VFL and OLS can run in the background. LS supports CW/ modulation mode output with adjustable output power. Type: Class 2; Power<1mW,Wavelength:650nm.
- 【Data Storage】Build in 8G TF card memory, which can store more than 200,000 curves; One click screen capture to save the interface. Support uploading data to PC-side via USB interface for further data analysis ,processing and print test results. OTDR tester Net weight/Dimension: 0.5kg(1.1lbs)/173x109x45mm(6.81x4.29x1.77inch).
- 【 RJ45 Cable Test】Support RJ45 cable sequence/ cable length test, RJ45 cable tracker Note: This Single Mode Mini-OTDR Dynamic Range is 26dB/24dB, doesn’t support live test, it can't test splitter, if test the splitter, the Dynamic need more than 42dB. Please clean the fiber connector before test or test result is not accurate,
| Color | Black, Blue, Orange |
|---|---|
| Model | RSO-4000D |
| Brand Name | Rsrteng |
| Style Name | 1310/1550nm 26/24dB |
| Item Weight | 0.5 Kilograms |
| Part Number | RSO-4000D |
| Manufacturer | Rsteng |
| Power Source | Power |
| Item Dimensions | 6.6 x 4.1 x 1.6 inches |
| Specification Met | CE |
| Included Components | Connector with UPC/FC SC LC ST |
| Upper Temperature Rating | 50 Degrees Celsius |
| Minimum Operating Voltage | 3.7 Volts |
