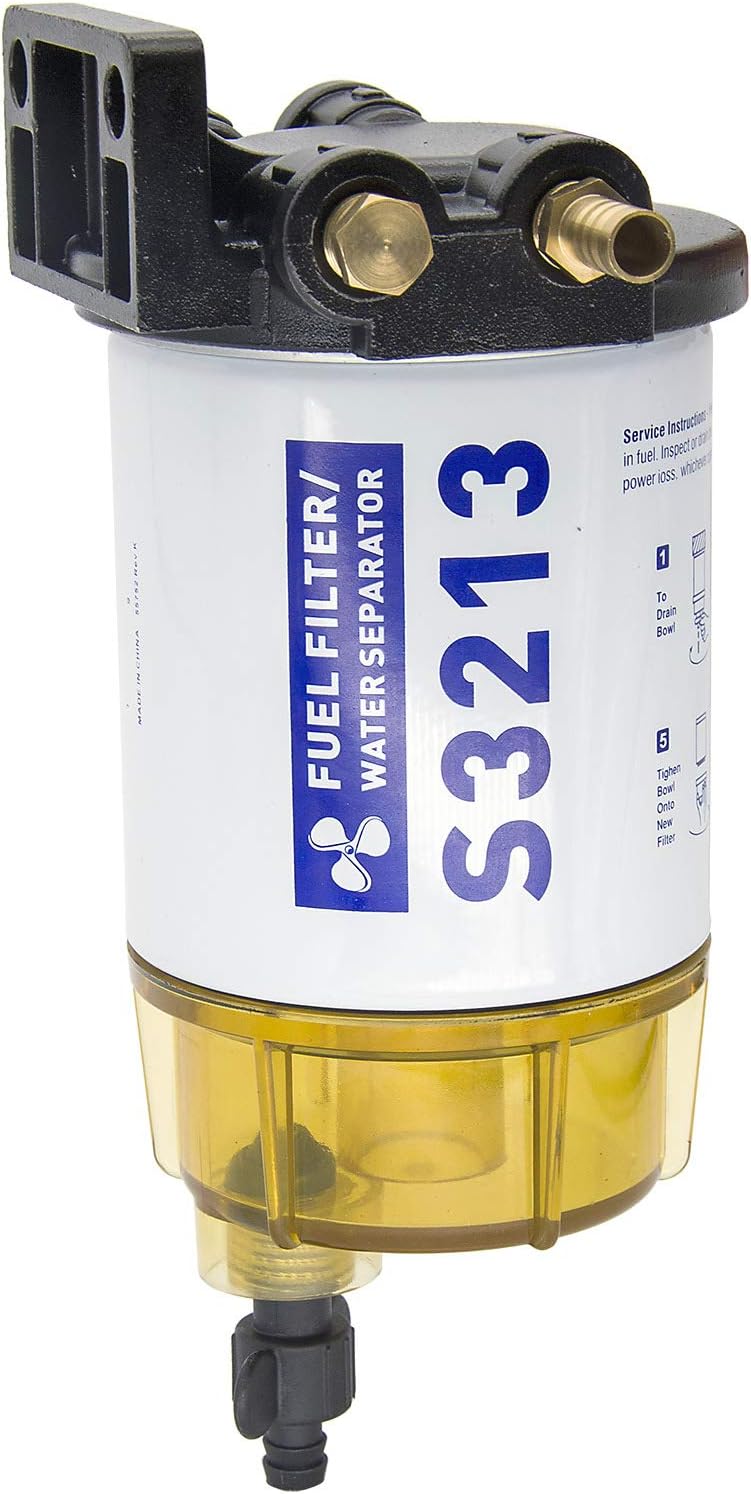

S3213 Fuel Filter, 3/8" Marine Boat Fuel Water Separating Filter 10 Micron Fuel Water Separator for Mercury Yamaha Outboard Motor Replaces

Package Including1 x Fuel Water Separating Filter 4 x Aluminum head with brass fittingsTo Drain Water1. Loosen self-venting drain plug to drain water from bowl into a container.2. Tighten drain screw.3. Use primer bulb to fill filter with fuel.4. Start engine and check ensure there is no leaks.To Replace Element1. Loosen self-venting drain plug and drain the element into a container.2. Remove bowl from filter element and clean o-ring gland on bowl. Please note the BOWL IS REUSABLE,do not dispose unless broken.3. Wipe O-ring gland clean,and coat bowl's seal O-ring with fresh oil or grease and place it back to the gland.Then tighten the bowl onto filter element firmly.4. Fill filter/bowl assemble with clean fuel and attach onto mounting bracket, tighten by hand.5. Start engine and check to ensure there is no leaks.Attention:1. Make sure you remove both the filter and the filter bowl from the mounting housing and put a light film of fuel on the o-ring.As delivered it will leak without the lubrication to allow for the proper crush.2. For diesel transfer tank to filter the fuel before it enters the main tank.You have to make sure to get the proper sealant for the threads. For The First time installation,in order to avoid any leaking at the threads.You'd better get some thread paste since the tape might plug the injectors if it were to come loosen.3.Check and replace regularly.Periodically check fittings and filter element for leaks.Frequency of water fraining or filter replacement is determined by the contamination level in fuel. Inspect or drain the collection bowl of water daily and replace the filter annually, whichever comes first. 4. Please Check the fitment and replace part number before ordering.

• FUEL WATER SEPARATOR FILTER KIT - Part Number: 35-60494-1. With advanced filtering media, this 10 micron filter are over 92% efficient at trapping the smallest particles and emulsified water from gasoline. Therefore, it can provide the best defense for sensitive inboard, stern-drive and outboard fuel injection systems.
• APPLICATIONS AND PART NUMBER - Fit for Marine outboard only! Replaces Mercury 35-60494-1; Replaces Racor S3213, B32013; 18-7932-1, 18-7932, 18-7928-1, 18-7928 | Filter Replaces Mercury Marine 35-809097, Racor S3213, Yamaha MAR-24563-03-00, 18-7919, 18-7919-1 | Bowl Replaces 18-7922-1, 18-7922 | Bracket Replaces 18-7853-1.
• OEM DESIGN, DIRECT FIT - Top-graded Marine Fuel Water Separating Filter, quality materials used for long lasting durability and reliability. High performance 3/8 NPT ports offer lower pressure drop rates. meets or exceeds OEM standards For Perfect Fit and easy installation, 100% rigorously tested before shipping.
• Usage - Designed to trap the smallest particles and emulsified water from diesel & Petrol .It contributes to clear contaminates protect fuel system.Well sealed.The o-ring does not compress and allow the filter to touch the housing, which then creates a leak. The O-rings are excellent quality.Perfect water fuel separating performance.
• BUY WITH CONFIDENCE - Strictly Quality Control to Ensure High Performance.This S3213 Fuel Water Separator Filter Kit Assembly come complete with a 12-MONTH Warranty, If you have any question, please feel free to contact us.
