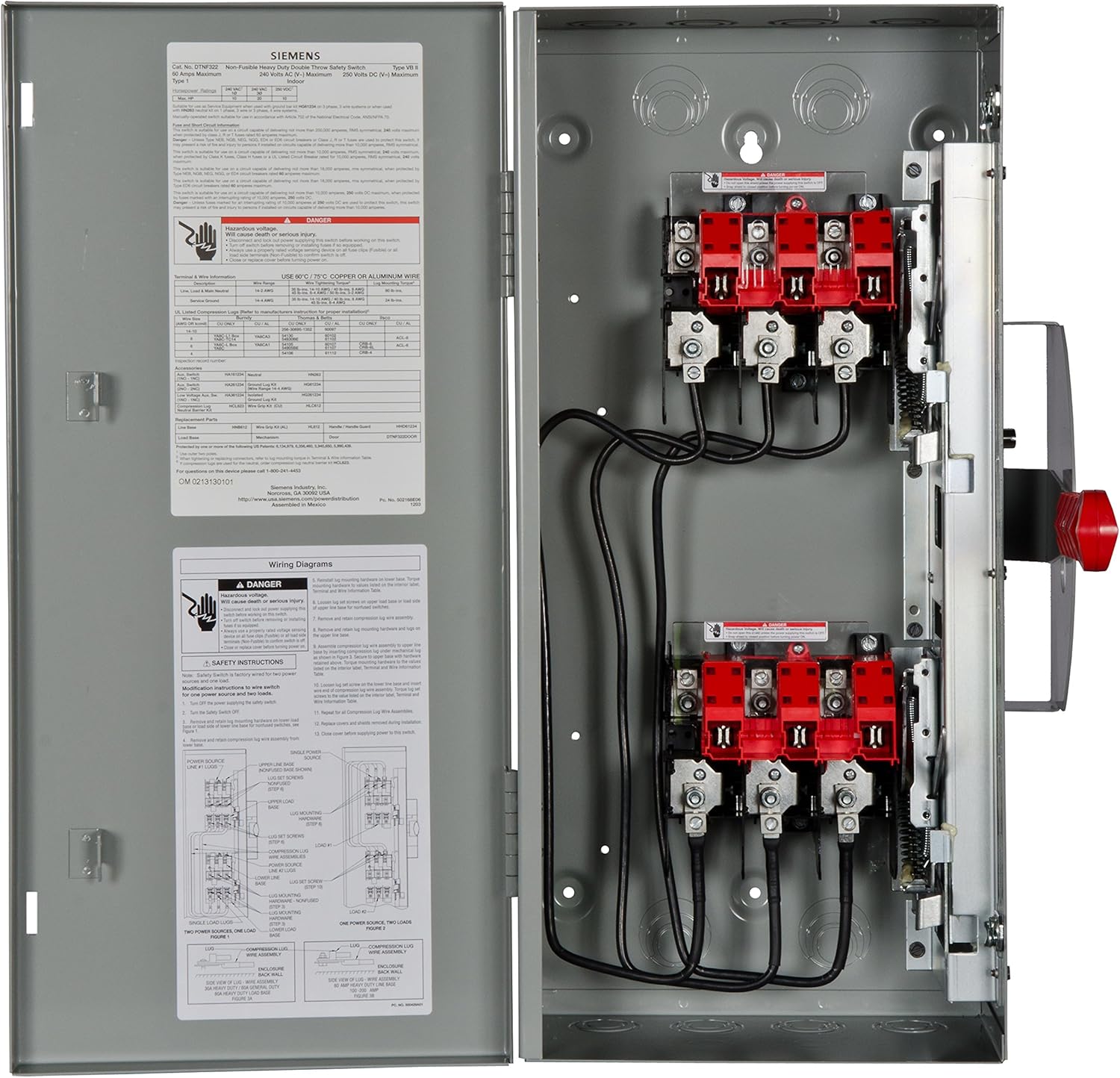

Siemens DTNF322 60-Amp 3 Pole 240-volt 3 Wire Non-Fused Double Throw Safety Switches

Siemens double throw switches are intended to transfer loads from one power source to another. All 2 & 3-pole double throw switches are suitable for use as service equipment including non-fusible versions when used in combination with a UL listed circuit breaker or fusible switch. All are UL Listed and both horsepower and load break rated. Switches are rated for use on systems up to 10,000A when protected with Class H fuses or 100,000A when protected with Class R or Class T fuses. They can also be used to connect a single source of power to either of two loads.

• This is a 60 Amp, 3 Pole, 240V, 3 Wire, Non-Fused, DT Type 1
• Quick-make and break switching action
• Double break visible blade design
• Front removable lugs which can easily be converted to copper body or compression type lugs
• This is a 60 Amp, 3 Pole, 240V, 3 Wire, Non-Fused, DT Type 1
• Quick-make and break switching action
• Double break visible blade design
• Front removable lugs which can easily be converted to copper body or compression type lugs
