Simarine SCQ50 Quadro Shunt Module, Load & Solar Monitoring, 4 x 50 A per Channel, A Built-in, Programmable Alarm Signal Relay. Compatible with Simarine PICO Battery Monitor and VIA Control Panel

Simarine's SCQ50 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 50A each. For 12V and 24V systems. The Simarine SCQ50's package contains: - 1x SCQ50 quadro digital shunt - 1x SiCOM cable (5 meters). Compatible with Simarine PICO Battery Monitor and VIA Control Panel

• A true innovation on the market! Quadro low-amp shunt module is here for appliances monitoring. With it you can monitor the current flow of the 4 individual consumers or generators. The SCQ50 allows a maximum continuous current of 50 amps per channel. Compatible with Simarine PICO Battery Monitor and VIA Control Panel
• Connection possibilities: 4 appliances (such as fridge, cooktop, lights, solar) and 1 alarm signal relay.
• Built-in, programmable alarm signal relay: One of the special features of this module is a programmable alarm signal relay, which you can configure to output a signal of 1 amp if an alarm is triggered. The alarm signal relay’s voltage limit is 60 V.
• Convenient for wiring on retrofitting for existing boats, campervans, trailers, RVs.

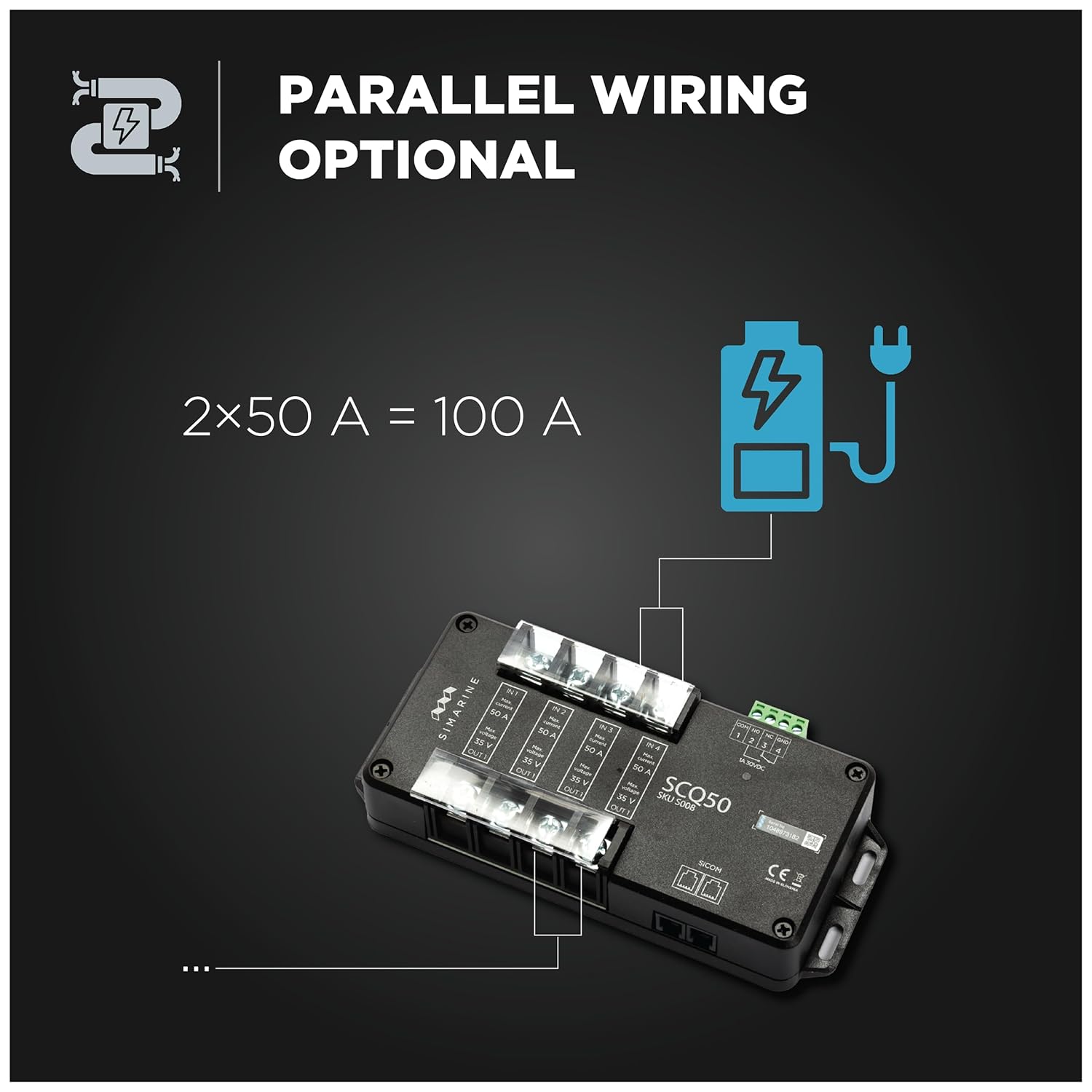

• Parallel wiring optional: If you need more than 50 amps per channel, you can wire the device in parallel across two channels and configure this setting in PICO to monitor these two channels as a single device, thus doubling the continuous current limit (2×50 = 100 A)
