TECHTONGDA Tenon Jig Woodworking Clamps Woodworking Tenoning Machine Mortise Joinery Tool
Product details
| Management number | 218551202 | Release Date | 2026/05/03 | List Price | $67.60 | Model Number | 218551202 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

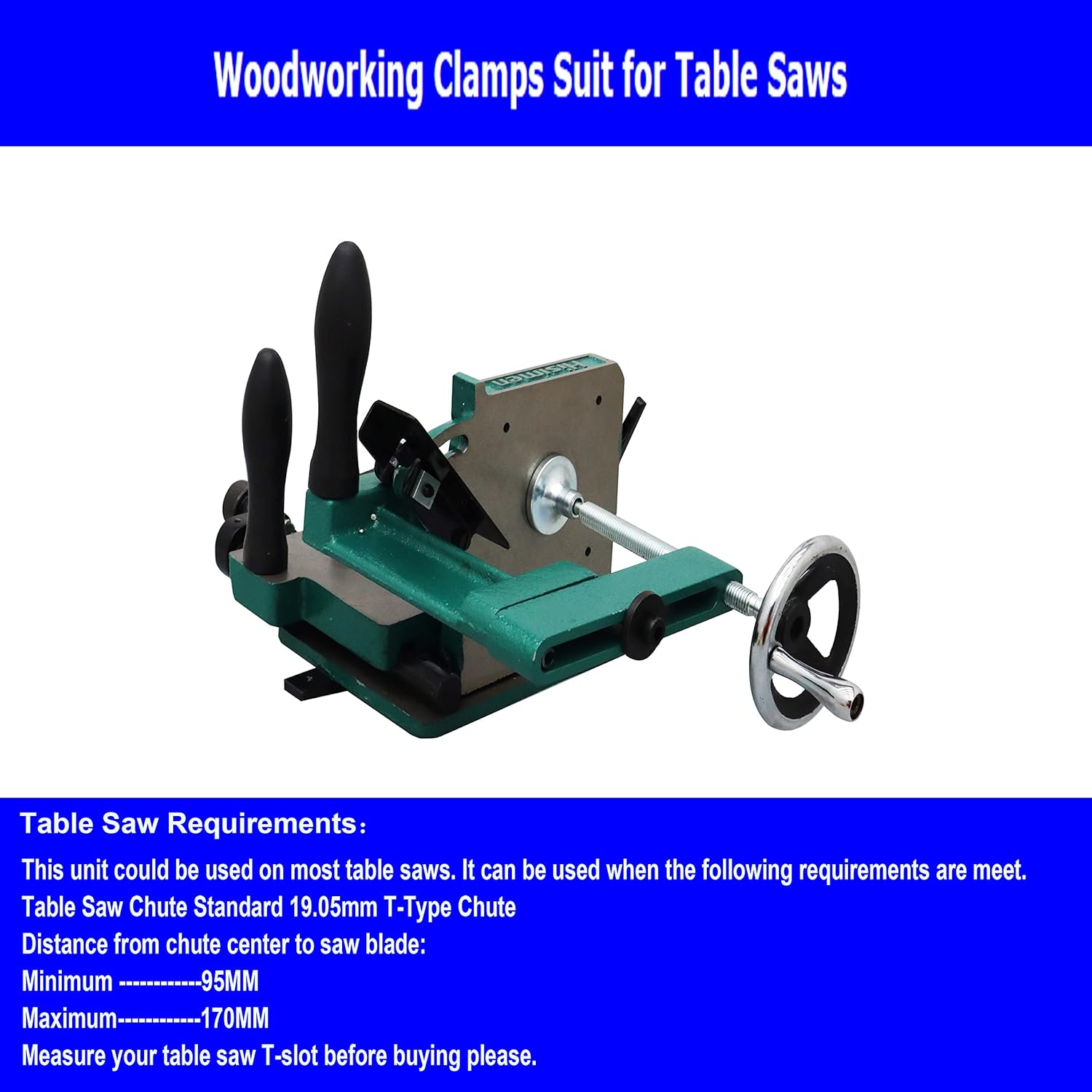

Woodworking Clamps Suit for Table Saws Table Saw Requirements： This unit could be used on most table saws. It can be used when the following requirements are meet. Table Saw Chute Standard 19.05mm T-Type Chute Distance from chute center to saw blade: Minimum ------------95MM Maximum------------170MM Measure your table saw T-slot before buying please. Parameters: Chute width：19.05mm Chute depth：9.525mm Guide rod size：265*19*9.5mm The minimum distance from the center of the chute to the saw blade: 95mm The maximum distance from the center of the chute to the saw blade：170mm Maximum grip.：82.5mm Net weight of the whole machine：8.7KG Package: 1* Woodworking Clamps Suit for Table Saws Item Number(239611)
- 【High Work Efficiency】This multifunctional woodworking clamps is a quick clamping device. Use the chuck to clamp the wood quickly for work. Work is very efficient. Reduce time cost for you
- 【Strong Applicability】Our tenoning clamps slide rails are set according to American regulations. Fits most American table saws. But not all American table saws. Our woodworking clamps' table saw chute is standard 19.05mm T-Type chute. Distance from chute center to saw blade: Minimum -95MM; Maximum-170MM. So a friendly reminder, please measure the size of your own table saw T-slot before buying
- 【Adjustable Clamping Angle】The angle of the rear pallet can be adjusted between 0-45 degrees; The angle of the backing can be adjusted between 0-15 degrees. Therefore, a variety of sawing methods can be realized
- 【Parameters】Chute width：19.05mm; Chute depth：9.525mm; Guide rod size：265*19*9.5mm; The minimum distance from the center of the chute to the saw blade: 95mm; The maximum distance from the center of the chute to the saw blade：170mm; Maximum grip.：82.5mm; Net weight of the whole machine：8.7KG
- 【Strong and Durable】This tenon jig is made of high quality metal material. Every part of the product is produced by meticulous workmanship. Strong and durable, long service life. It can make satisfactory wooden handicrafts for you
| Style | Modern |
|---|---|
| Item Weight | 22 pounds |
| Part Number | L239611 |
| Manufacturer | TECHTONGDA |
