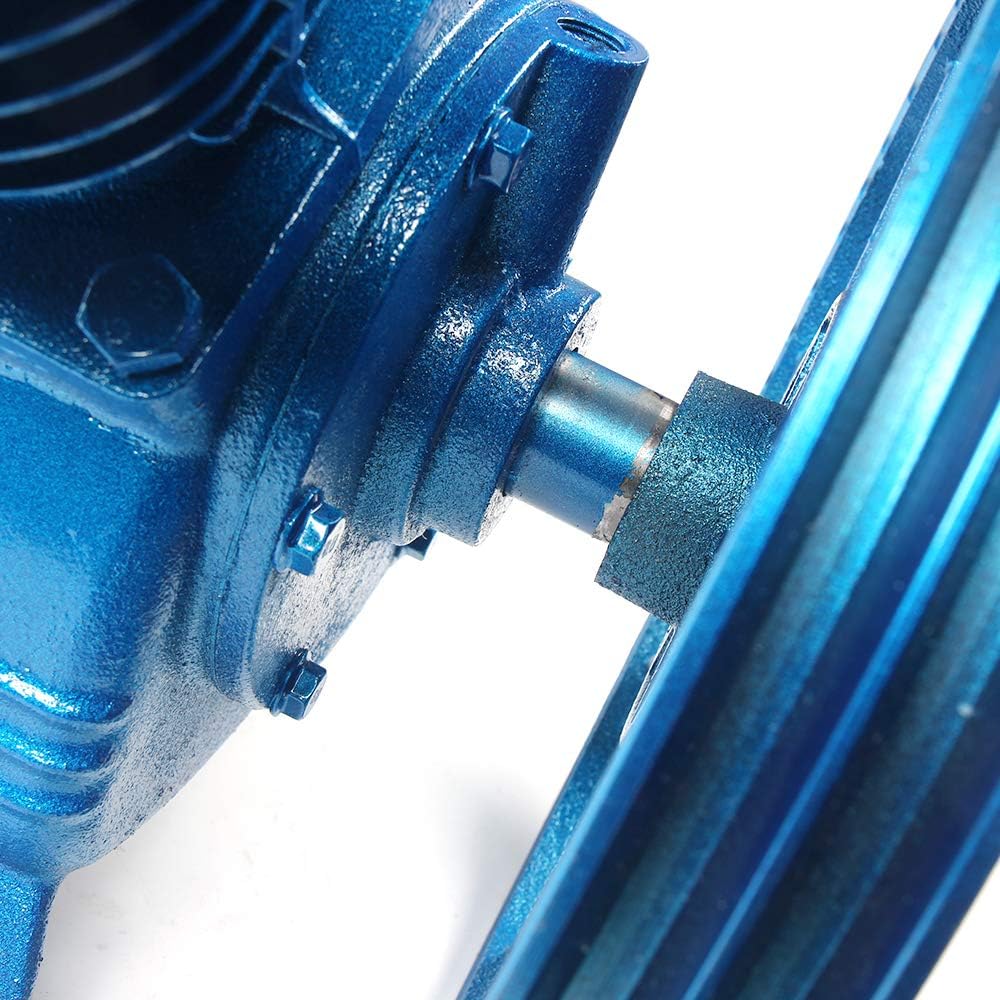

TFCFL 175PSI 5.5HP Twin Cylinder Air Compressor Pump Head, V Type Double Stage Universal Low Energy Consumption Air Compressor Head Motor Faster Inflation & Low Noise 8~11CFM

Installation Notes:1 When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.2 Tighten the screws (including the base and pulley screws).3 After the screws are installed, the belt shall be tightened. If the belt is loose, please move the motor. After the screws are tightened, reinstall the belt.4 The new machine must be filled with engine oil before starting, and the engine oil shall be added to the center of the red point of the oil mirror.5 The rotation direction of the pump head is clockwise. If it reverses, please adjust it in time.6 Change the oil for the first half month, the second one and a half months, and the next two to three months.7 Replace the air filter regularly. Under normal conditions, it must be replaced in two to three months, and in case of poor environment, it must be replaced in one month.8 The operation of the machine will produce high temperature, be careful not to burn!Specifications: Air delivery: 8~11CFM(0.6m³/h)Rated pressure: 175 PSI (1.16MPa)Driving power: 4KW (5.5HP) Pump speed: 800RPMCylinder diameter: 3.54" (90mm)Distance of screw hole: 26cm*14cm (10.2"*5.5")Rated exhaust volume: 0.6L/12.5MinNote: If the motor speed is 2880rpm, the diameter of the motor wheel is 10 cm. If the motor speed is 1440rpm, the motor wheel is 20 cmPackage Included:1 X Air Compressor Pump head

• Air delivery: 8~11CFM(0.6m³/h), Rated pressure: 175 PSI (1.16MPa), Driving power: 4KW (5.5HP), Pump speed: 800RPM
• Cylinder diameter: 3.54" (90mm), Distance of screw hole: 26cm*14cm (10.2"*5.5"), Rated exhaust volume: 0.6L/Min
• If the motor speed is 2880rpm, the diameter of the motor wheel is 10 cm. If the motor speed is 1440rpm, the motor wheel is 20 cm
• High efficiency, high precision, universal, low energy consumption. Faster inflation and low noise. The item will be divided into TWO PARCELS to ship. Thank you!
• Strong cooling blade, good cooling performance. Strict balance support and correction to ensure the smooth operation of the main engine.
