TOP1 Raspberry Pi PoE+ HAT for Raspberry Pi 3B+/4B Support 802.3af/at PoE Network Standard Easily Realize Raspberry Pi Networking and Power Supply

Product OverviewThe Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B.Compared to its predecessor Raspberry Pi PoE HAT,it features better cooling effect,implementing the 802.3af/at standard with 5V DC/4A larger power output,providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals at the same time.By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments,it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.Features:1)For use with Raspberry Pi 3B+/4B2)Power Over Ethernet:providing both network connection and power supply for your Raspberry Pi in one cable.802.3af/at-compliant,5V DC/4A larger power output.3) Stronger air flow,better cooling:25 x 25mm brushless cooling fan with fan control,delivering 2.2CFM air flow for coolingNew Version PoE+ HAT Specifications:PoE standard:802.3af/atInput voltage:37-57 V DC, Class 4 deviceOutput voltage/current:5V DC/4ACurrent sense:YesTransformer design:PlanarFan:Controllable brushless cooling fan,delivering 2.2 CFM for processor coolingFan size:25 x 25mmFeature:Fully isolated switched-mode power supplyCompatible with:Raspberry Pi 3B+/4BOld Version PoE HAT Specifications:PoE standard:802.3afInput voltage:37-57 V DC, Class 2 deviceOutput voltage/current:5V DC/2ACurrent sense:NoTransformer design:Wire-woundFan:Controllable brushless cooling fanFan size:25 x 25mmFeature:Fully isolated switched-mode power supplyCompatible with:Raspberry Pi 3B+/4BPackage ContentRaspberry Pi PoE+ HAT x1Standoffs pack x1

• The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B
• Compared to its predecessor Raspberry Pi PoE HAT, it features better cooling effect, implementing the 802.3af/at standard with 5V DC/4A larger power output, providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals at the same time.
• Official Raspberry Pi PoE+ HAT.Compatible with Raspberry Pi 3B+/4B, 802.3af/at-compliant

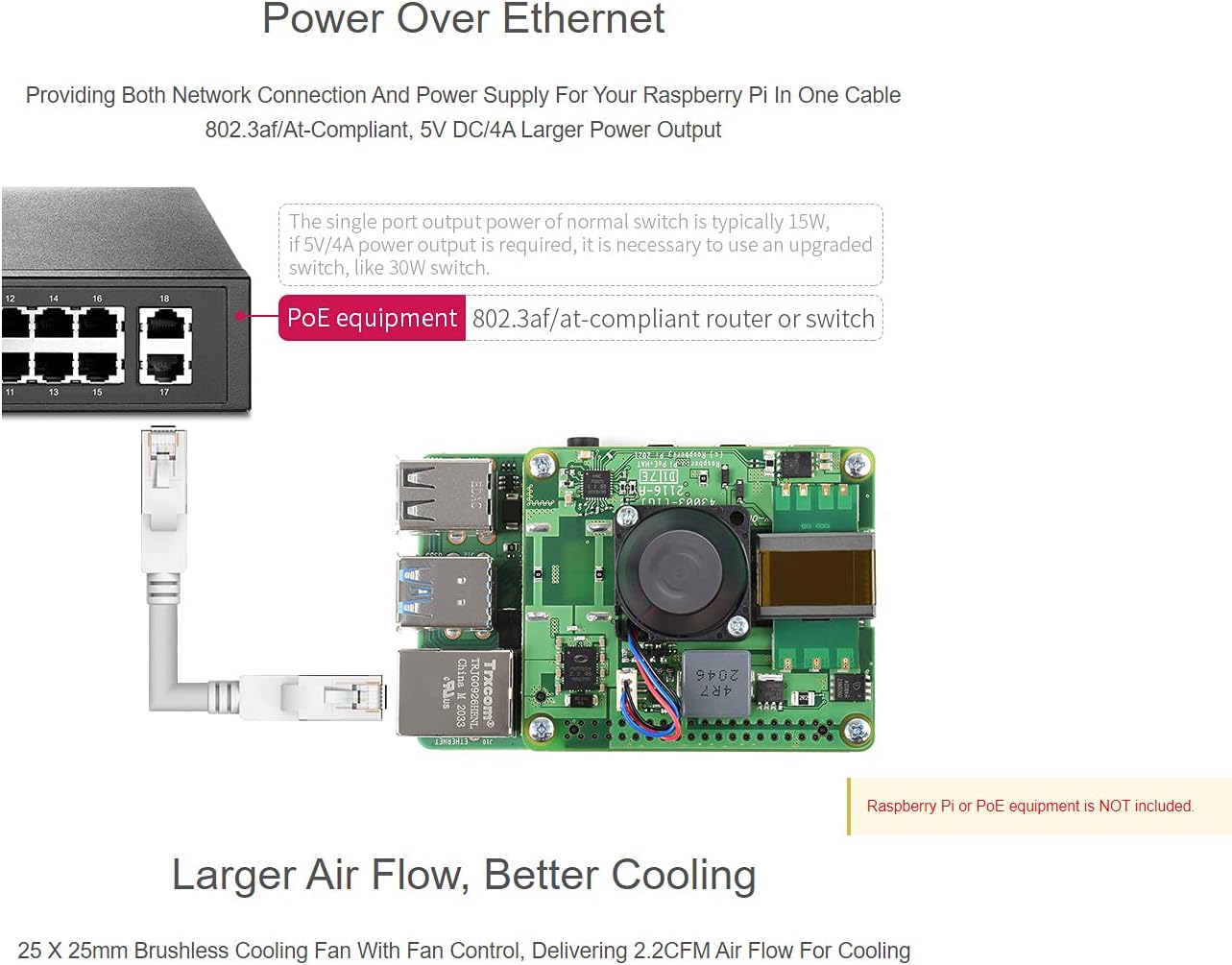

• Power Over Ethernet.Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable 802.3af/At-Compliant, 5V DC/4A Larger Power Output
• Stronger Air Flow, Better Cooling.25 X 25mm Brushless Cooling Fan With Fan Control, Delivering 2.2CFM Air Flow For Cooling
