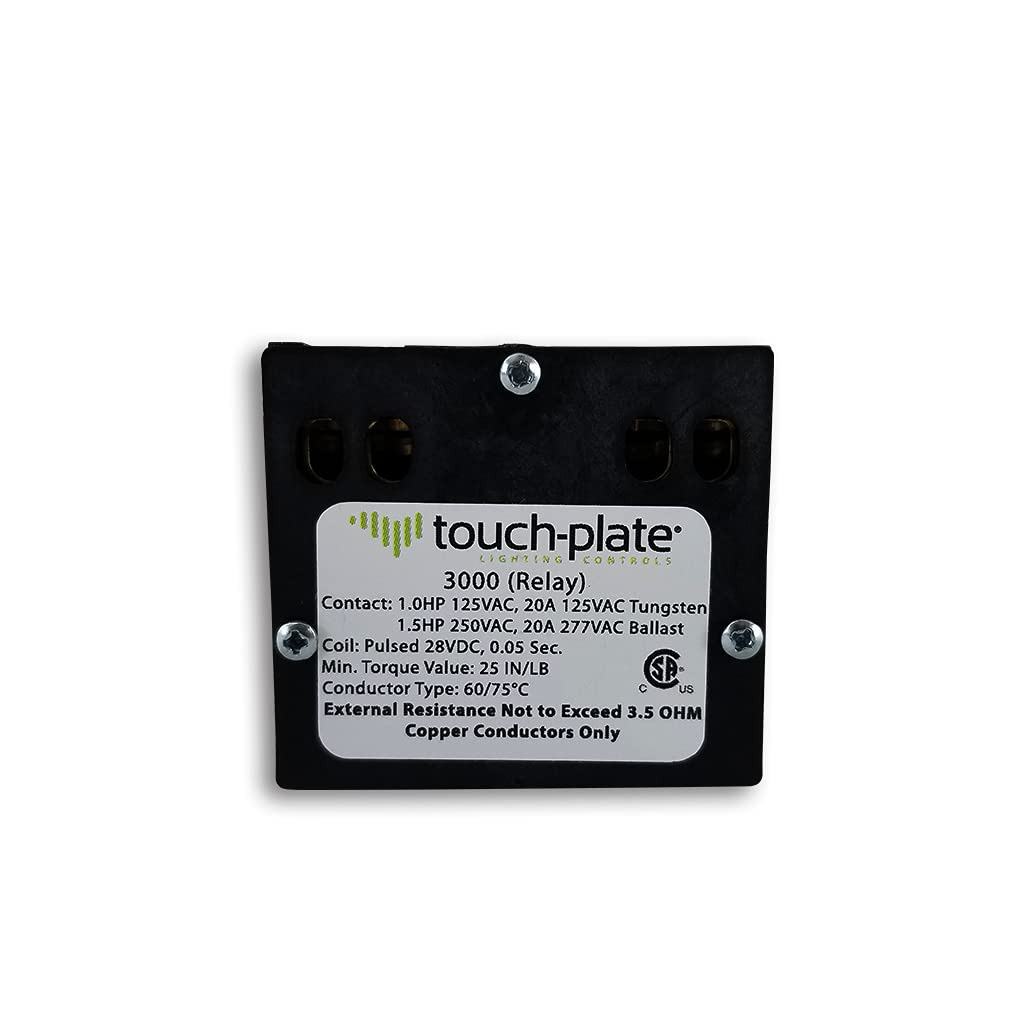

TOUCH-PLATE 3000-Relay, 20-AMP Relay
$95.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$95.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
Free 30-day returns Details
Product details
| Management number | 218222188 | Release Date | 2026/05/03 | List Price | $38.40 | Model Number | 218222188 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 20 Amp 3000 relay is a mechanically latching relay utilizing “Contact Closure” low- voltage switch technology. The relay only switches directly ON/OFF, this feature is technically known as “Single Pole, Single Throw” (SPST). This relay only works with a Touchplate System which is a 2-wire system. It will NOT work with a 3-Wire system like GE or Remcon.
- Replacement 2-wire low voltage relay for Touch-Plate systems installed between 1946-1985
- Designed as a compatible replacement for the following Touch-Plate models: 1550-A, 1550-B, 2500-B, and 4000
- Rating is 120/277VAC 20Amp 1.0HP 125VAC, 1.5HP 250VAC
- Max Operating temp of 65°C
| UPC | 850035854044 |
|---|---|
| Wattage | 2500 watts |
| Brand Name | TOUCH-PLATE |
| Unit Count | 1.0 Count |
| Coil Voltage | 125 Volts |
| Contact Type | Normally Open |
| Manufacturer | TOUCHPLATE LIGHTING & CONTROLS |
| Mounting Type | Panel Mount |
| Connector Type | Plug-In |
| Current Rating | 20 Amps |
| Operating Time | 0.05 Seconds |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Specification Met | UL |
| Included Components | RUBBER GROMMET |
| Number of Terminals | 2 |
| Contact Current Rating | 20 Amps |
| Upper Temperature Rating | 65 Degrees Celsius |
| Maximum Switching Current | 20 Amps |
| Minimum Switching Voltage | 125 Volts |
