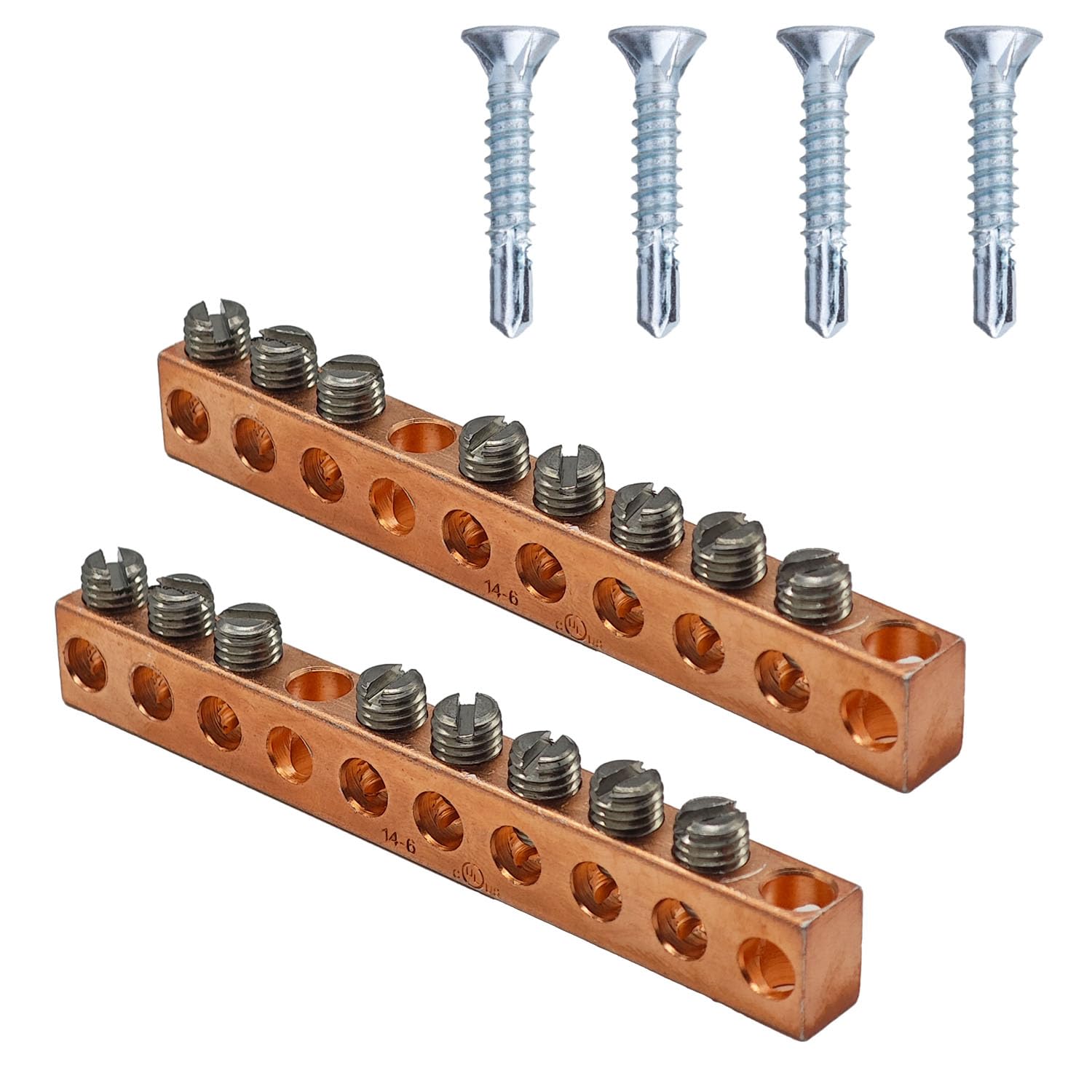

UL Certified Ground Bar Kit, Max Wire Dia 4 AWG，Copper Clad Aluminum Mechanical Lugs with Self Tapping Dovetail Screws (8 Terminal Position, 10pc)
Product details
| Management number | 210101865 | Release Date | 2026/04/02 | List Price | $15.60 | Model Number | 210101865 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
UL Certified Ground Bar Kit, Max Wire Dia 4 AWG，Copper Clad Aluminum Mechanical Lugs with Self Tapping Dovetail Screws

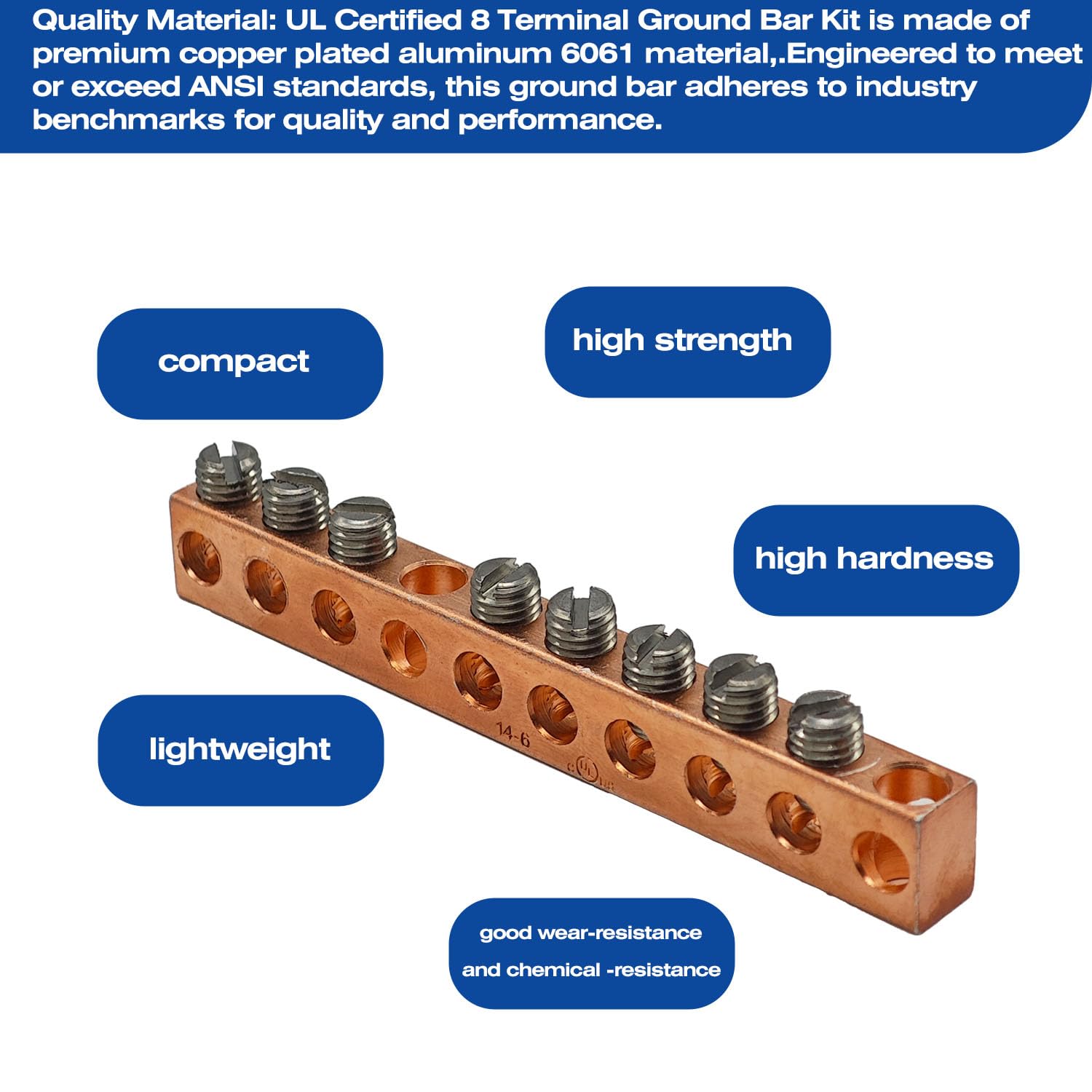

- Quality Material: UL Certified 8 Terminal Ground Bar Kit is made of premium copper plated aluminum 6061 material,compact and lightweight, feature high strength, high hardness, good wear-resistance and chemical -resistance.Engineered to meet or exceed ANSI standards, this ground bar adheres to industry benchmarks for quality and performance.
- This ground bar is tailored to fit wires up to 4 AWG, catering to both solid and stranded wire configurations. Can be used with #16 to #4 wire
- This Grounding bar is Used in load centers, CSED devices, NQOD and NF panel boards, and Marine and RV applications. X Terminal Positions.

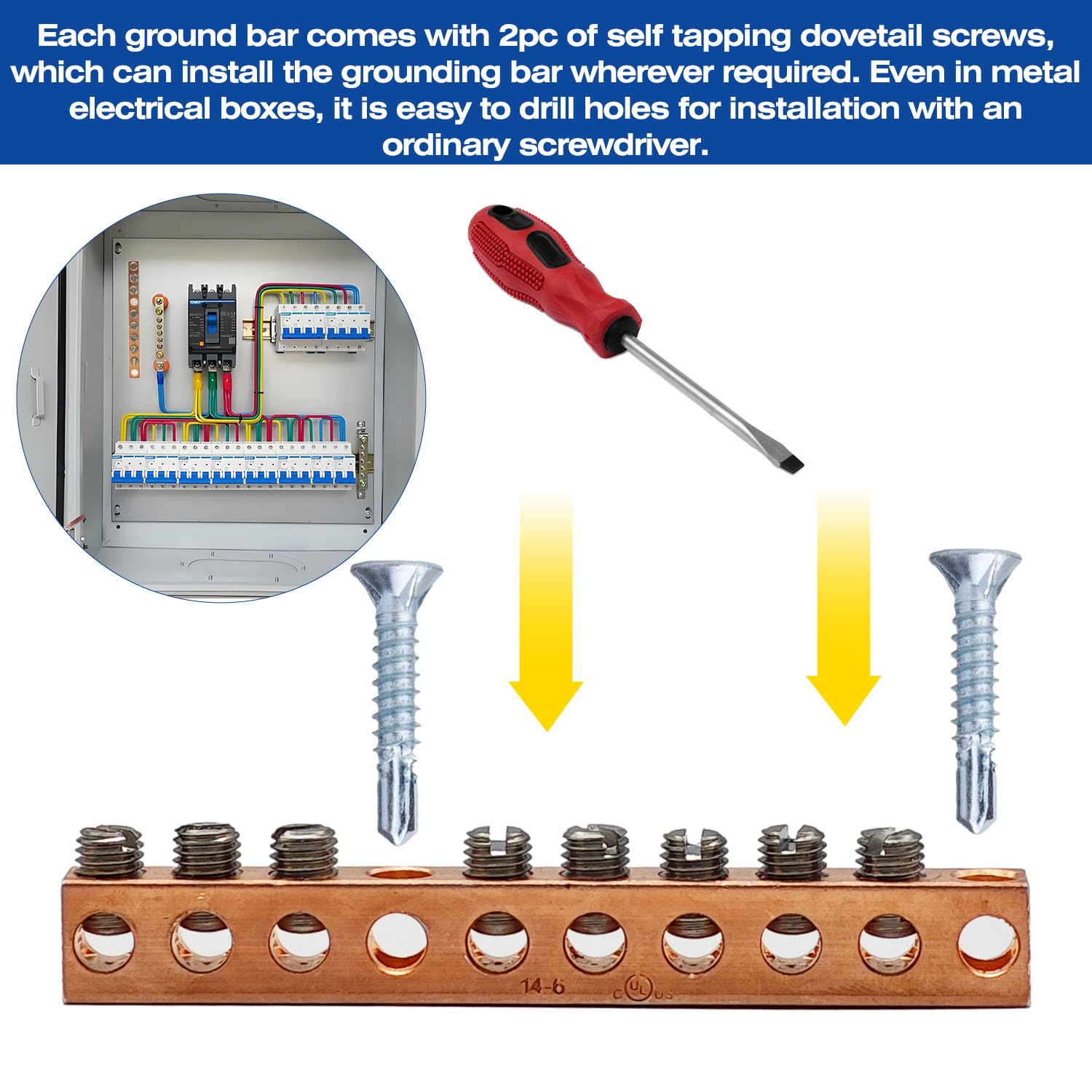

- Each ground bar comes with 2pc of self tapping dovetail screws, which can install the grounding bar wherever required. Even in metal electrical boxes, it is easy to drill holes for installation with an ordinary screwdriver.
- GOUNENGNAIL brand is focused on lightning protection and grounding systems,UL membership Listee No.E548063
| Color | copper |
|---|---|
| Gauge | 6 |
| Model | GNAGBZT |
| Brand Name | GOUNENGNAIL |
| Part Number | GNAGBZT |
| Manufacturer | Yongkang Bulls Hardware Co., Ltd |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Number Of Poles | 8 |
| Specification Met | UL |
| Number Of Contacts | 8 |
| Included Components | ground bar |
| Number of Positions | 8 |
| Item Dimensions W x H | 10"W x 2.5"H |
