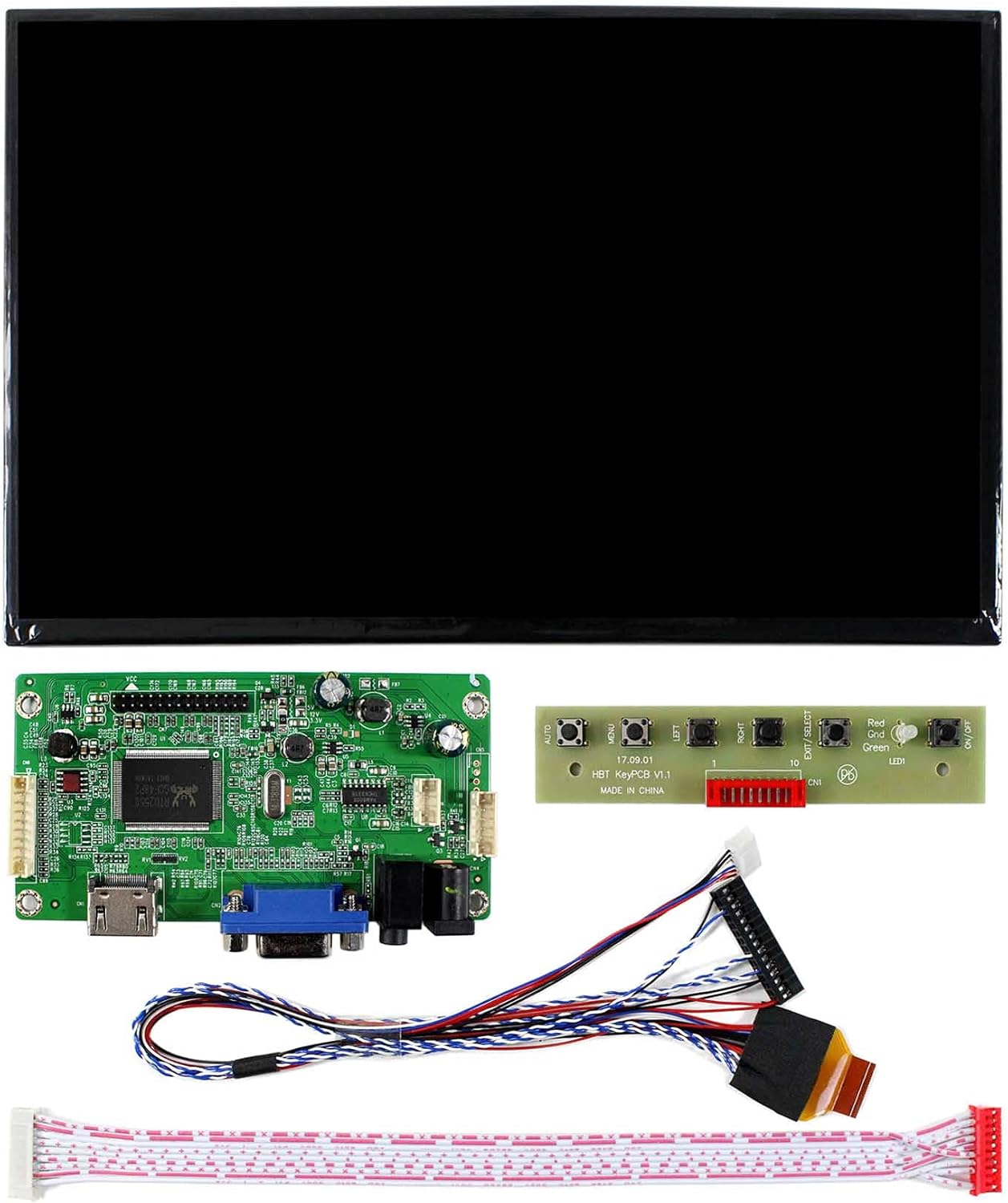

VSDISPLAY 10.1" 10.1 Inch 1920X1200 LCD Screen B101UAN01.A with VGA Controller Board VS-RTD2556HV-V2
Product details
| Management number | 218485994 | Release Date | 2026/05/03 | List Price | $36.00 | Model Number | 218485994 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LCD Controller Board: VGA Board Work for 30Pin EDP LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <0.3W Audio Input: PC-Audio In Audio Output: Speaker OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English Board Size: 107mm x 55mm x 16mm10.1" B101UAN01.A 1920X1200 LCD Screen:Display Mode AHVA, Normally Black, TransmissiveResolution 1920RGB)×1200Outline Size 229.45 × 149.2×5 (H×V×D)Display Area 216.81 × 135.5 (H×V)Brightness 400 cd/m² (Typ.)Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface 40 pins eDP (2 Lanes) , ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× VGA LCD Controller Board VS-RTD2556HV-V21× 10.1inch B101UAN01.A 1920X1200 LCD Screen1× Signal Cable1× Keyboard With Cable
- 10.1" B101UAN01.A 1920X1200 LCD Screen: Resolution 1920RGB)×1200 Outline Size 229.45 × 149.2×5 (H×V×D) Display Area 216.81 × 135.5 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
- VGA Board Work for 30Pin EDP LCD Screen
- Audio Input: PC-Audio In Audio Output: Speaker
- Recommend Power Adapter Spec. Input Power Adapter:12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U, Fit for All Types of VSDISPLAY LCD Controller Board) Come In Standby Model When Not Input Signal Standby Model <0.3W
- Packing list : 1× VGA LCD Controller Board VS-RTD2556HV-V2 1× 10.1inch B101UAN01.A 1920X1200 LCD Screen 1× Signal Cable 1× Keyboard With Cable (Please Note There is No Power Adapter in The Packing List.)
| UPC | 601285644974 |
|---|---|
| Brand | VSDISPLAY |
| Color | Black |
| Screen Size | 10.1 Inches |
| Display Type | 1200 |
| Manufacturer | VSDISPLAY |
| Screen Finish | Glossy |
| Native Resolution | 1920x1200 |
| Display Technology | LCD |
| Hardware Connectivity | Unknown |
