waveshare Mini Base Board, Mini-WaComputer Designed for Raspberry Pi Compute Module 5 (NOT Included), Onboard EEPROM and Encryption Chip, Including Metal Case and Power Supply
$59.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$59.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by dermamedic.gr
Free 30-day returns Details
Product details
| Management number | 212283732 | Release Date | 2026/04/06 | List Price | $24.00 | Model Number | 212283732 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

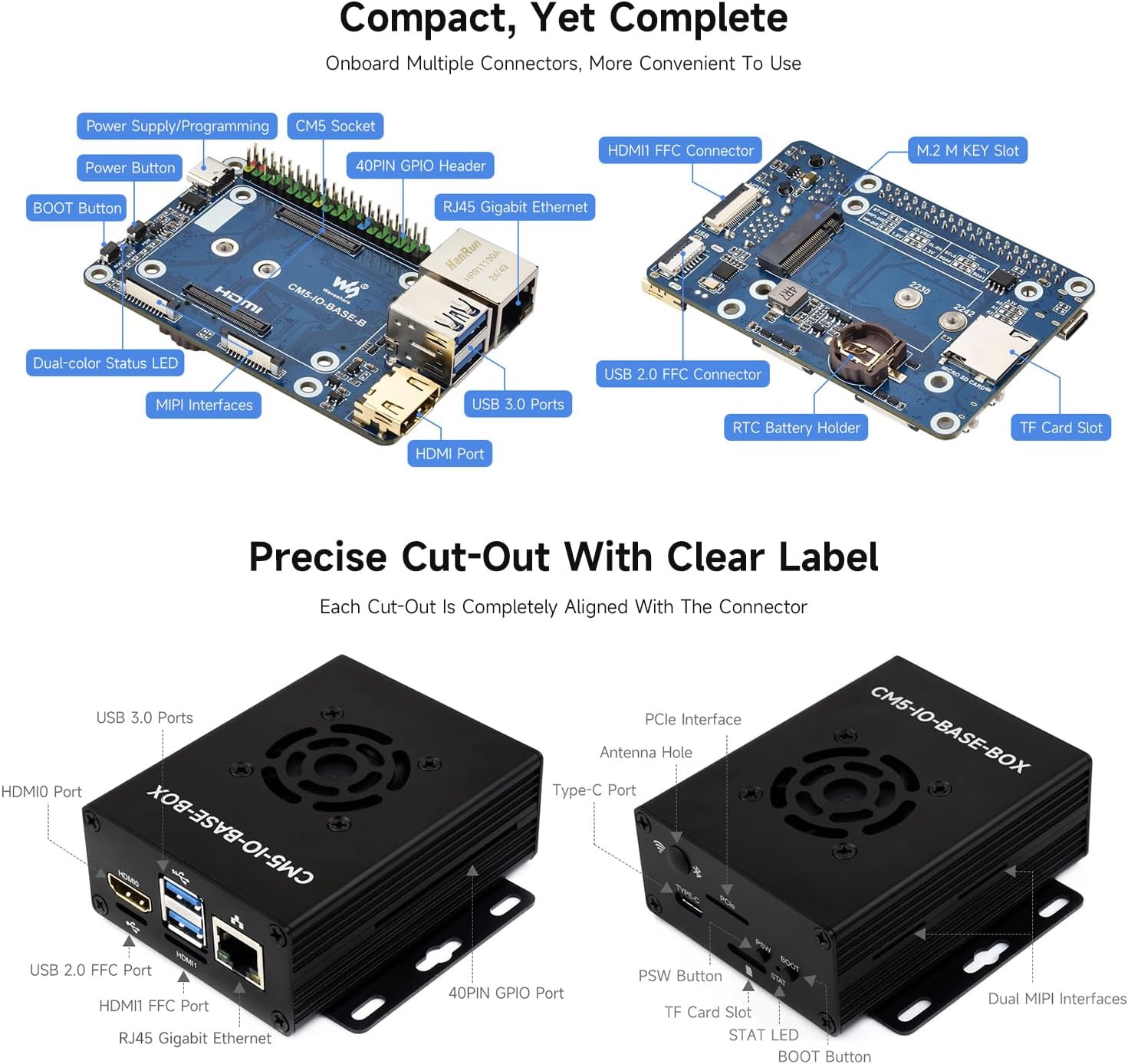

- Compatibility & Connectors: The base board is compatible with all variants of the Raspberry Pi Compute Module 5 (CM5) and includes an M.2 M KEY (2230/2242) connector, Raspberry Pi 40PIN GPIO header, and dual HDMI ports supporting 4K output.
- Networking & USB: Features a Gigabit Ethernet RJ45 connector for high-speed network connectivity, along with four USB ports—two USB 3.2 Gen1 Type-A and two USB 2.0 ports via a 6PIN 1mm FFC connector.
- Display & Video: Dual 4-lane MIPI interfaces (each with 22pin 0.5mm FFC connectors) for display options and two HDMI ports (one via FFC connector), supporting dual 4K video output.
- Storage & Power: Offers a TF card slot for Compute Module 5 Lite variants (without eMMC) and a 5V, 5A DC power input for reliable power delivery, along with an onboard EEPROM and encryption chip.

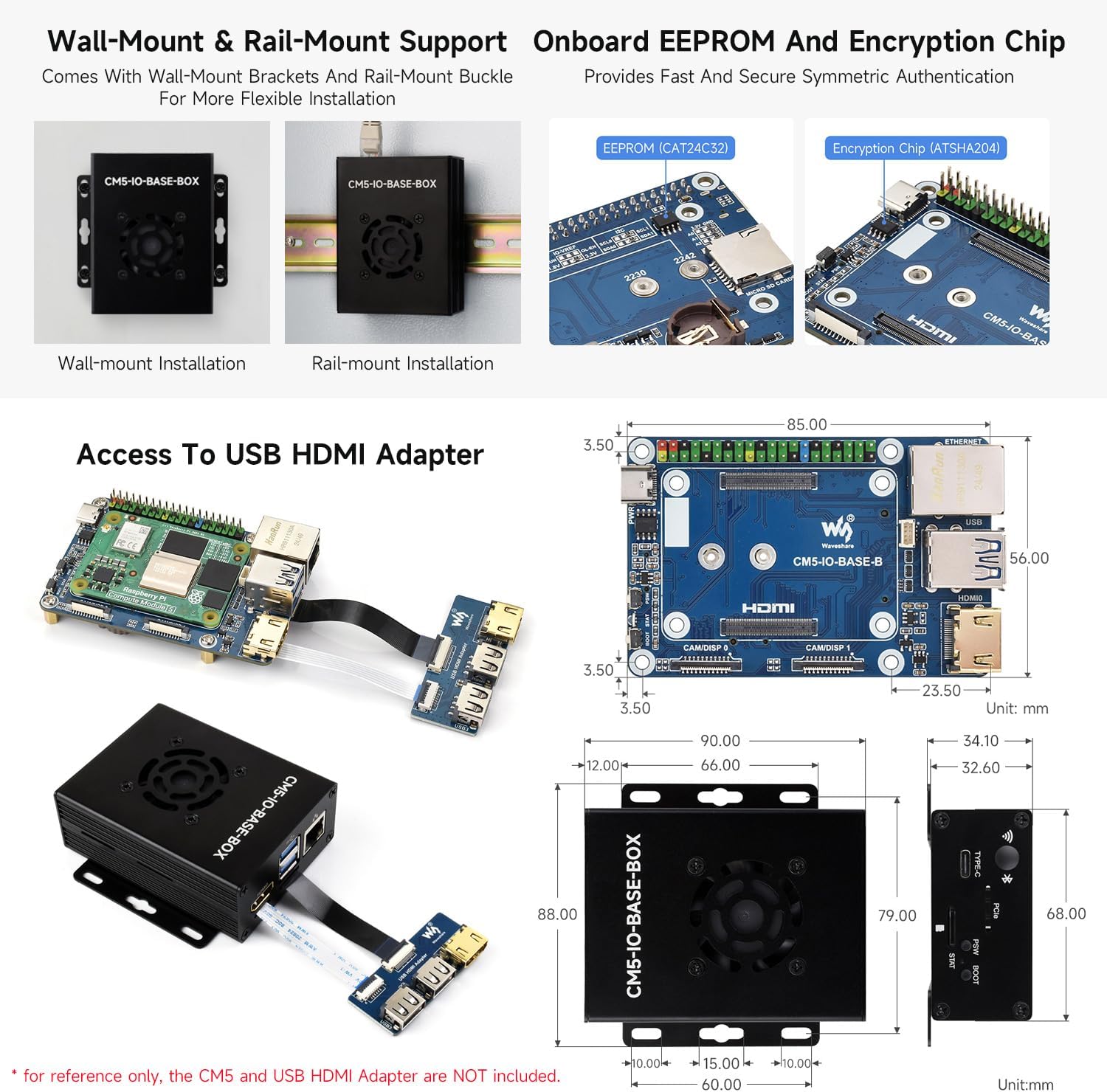

- Dimensions & Cooling: Compact size of 85 × 56mm for the base board and 90 × 68mm with the included metal case, along with a 5V, 4PIN JST-SH PWM fan header for efficient cooling.
- Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
| Brand | waveshare |
|---|---|
| Model Name | CM5-IO-BASE-BOX-B (US) |
| Item Weight | 0.37 Kilograms |
| Aspect Ratio | 16:9 |
| Manufacturer | Waveshare |
| BuiltIn Media | CM5-IO-BASE-BOX-B (US) |
| Hardware Interface | 3.5mm Audio, Ethernet, HDMI, USB 2.0 Type B, USB 3.2 Gen 1 |
| HumanInterface Input | Touchscreen |
| Warranty Description | 1 year |
